Low Noise Operational Amplifier,SGM8624 Replace TP1564.
SGM8624
SGM8624.pdf
SGM8624.pdfFEATURES
? Rail-to-Rail Input and Output 3mV Maximum VOS
? High Gain-Bandwidth Product: 3MHz
? High Slew Rate: 1.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 2.3μs
? Low Noise: 17.5nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current
SGM8622/4: 210μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8623
? Small Packaging
SGM8624 Available in Green TSSOP-14 and
SOIC-14

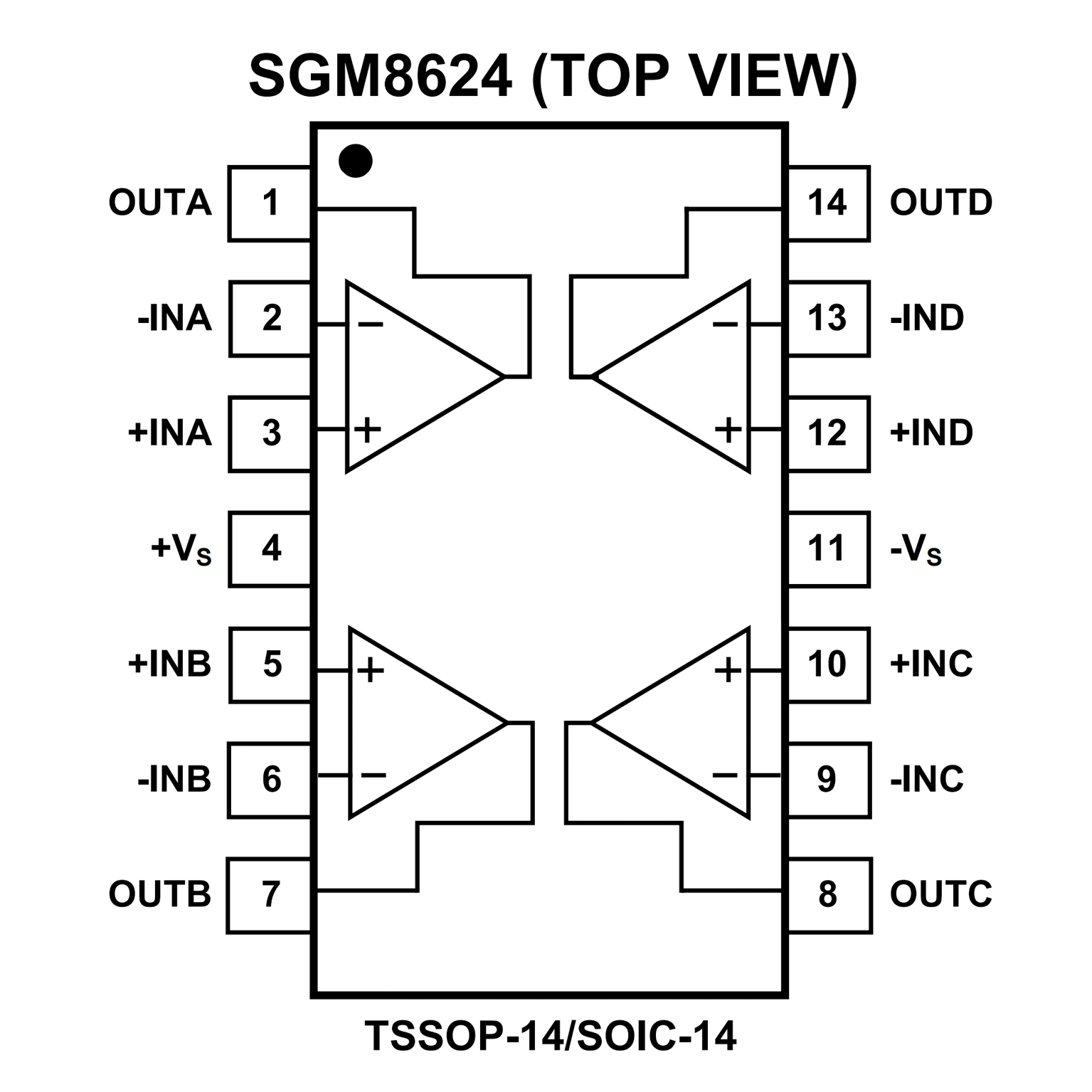

PIN CONFIGUTION
優勢替代
FEATURES
? Stable 3.8 MHz GBWP Over Temperature Range
? Stable 3.8 MHz GBWP in VCM from 0-V to VDD
? Very Low Supply Current: 130 μA per Amplifier
? Unity Gain Stable for Any Capacitive Load
? Offset Voltage: 3.0 mV Maximum
? Offset Voltage Temperature Drift: 0.6 μV/°C
? Input Bias Current: 1 pA Typical
? THD+Noise: -115 dB at 1kHz, -99 dB at 10kHz
? High CMRR/PSRR: 120 dB
? Beyond the Rails Input Common-Mode Range
? Outputs Swing to within 5 mV of Each Rail
? No Phase Reversal for Overdriven Inputs
? Drives 2 k? Resistive Loads
? Shutdown Current: 0.2 μA (TP1561N)
? Supply Voltage Range:
-Single +2.1 V to +6.0 V Supply
-Or Dual ±1.05 V to ±3.0 V Supplies
? –40°C to 125°C Operation Temperature Range
? ESD Rating: 8KV – HBM, 2KV–CDM and 500V–MM
? Green, Popular Type Package

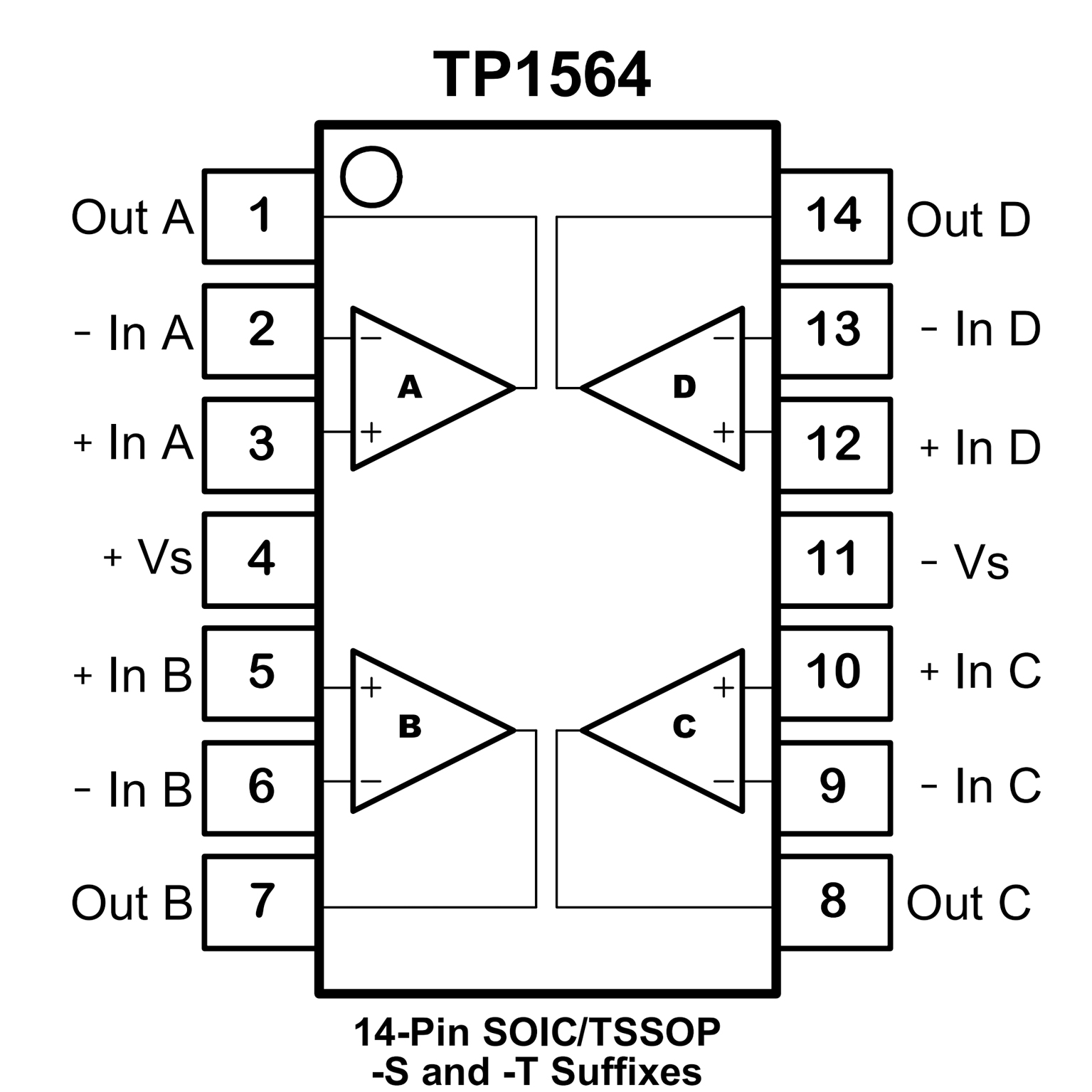

PIN CONFIGUTION
