480μA, 6MHz, Rail-to-Rail I/O CMOS Operational Amplifier,SGM8632CXMS8GTR-Replace-AD8692ARMZREEL.
SGM8632
SGM8632.pdf
SGM8632.pdfFEATURES
? Rail-to-Rail Input and Output
? 3.5mV Maximum Input Offset Voltage
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 480μA/Amplifier (TYP)
? Available in Green MSOP-8 Package
PIN CONFIGUTION
優勢替代
FEATURES
? 失調電壓：400 μV(典型值)
? 低失調電壓漂移：6 μV/°C
(最大值，AD8692/AD8694)
? 極低輸入偏置電流：1 pA(最大值)
? 低噪聲：8 nV/√Hz
? 低失真： 0.0006%
? 寬帶寬：10 MHz
? 單位增益穩定
? 單電源供電：2.7 V至6 V
? 通過汽車應用認證

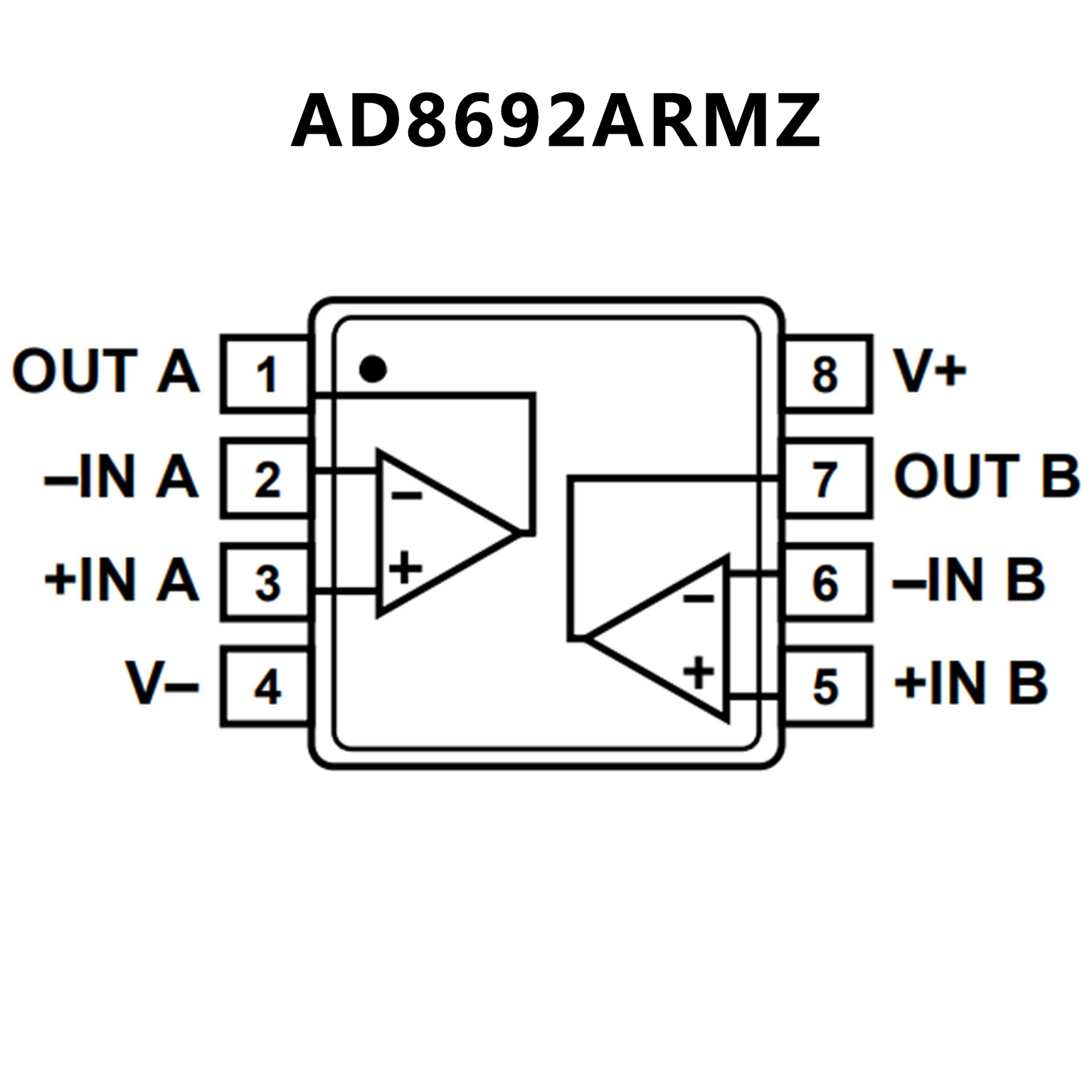

PIN CONFIGUTION
