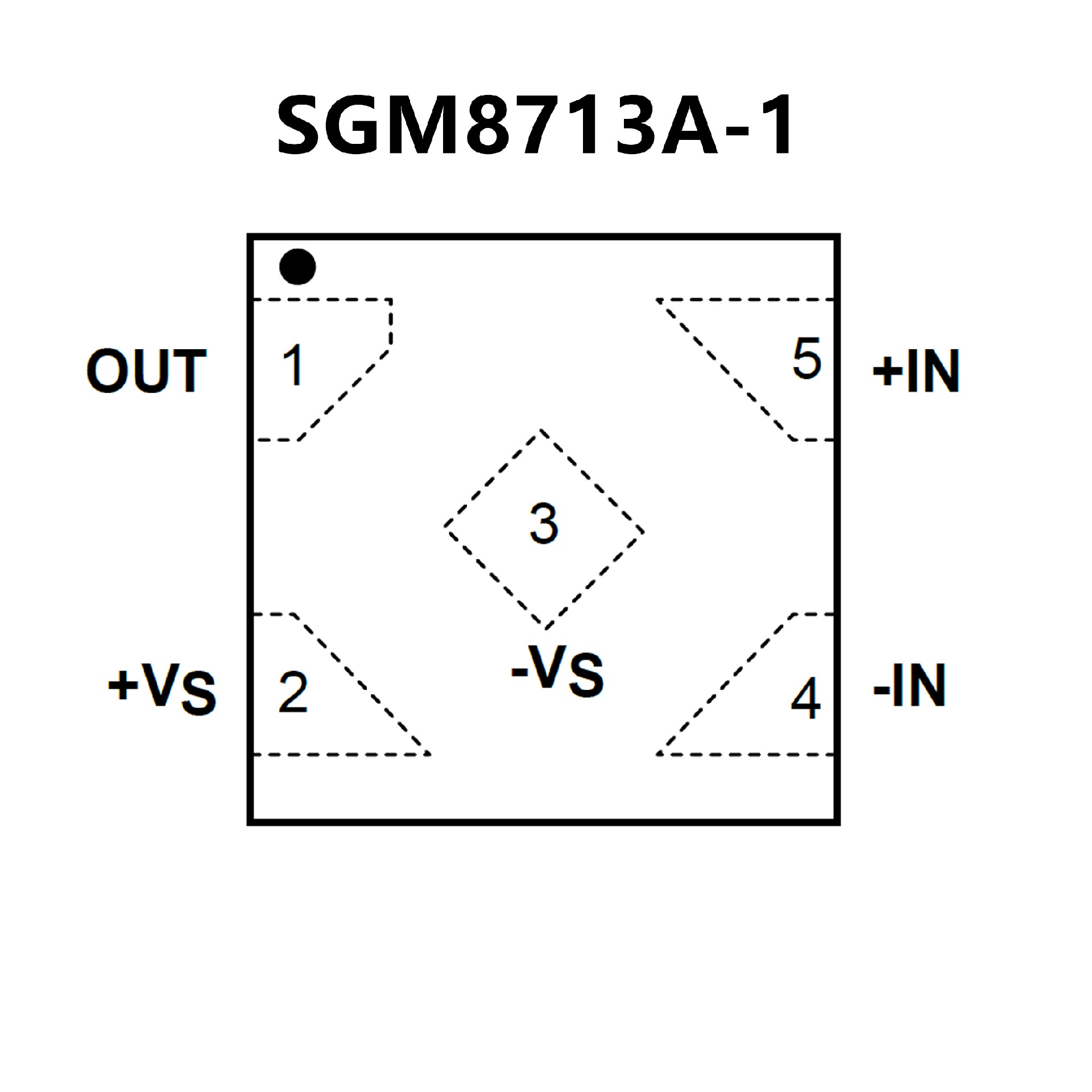

SGM8713A-1.pdf? Ultra-Low Supply Current: 300nA (TYP)
? Low Propagation Delay: 5μs (TYP)
? Supply Voltage Range: 1.6V to 5.5V
? Rail-to-Rail Input Common Mode Voltage
? Different Output Structures
Push-Pull Output: SGM8713A-1
Open-Drain Output: SGM8713B-1
? Internal Hysteresis: 6mV (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green XTDFN-0.8×0.8-4L Package
? Ultra-small X2SON, WSON, WQFN packages
? Tiny SOT-23, SC70, VSSOP, and TSSOP
packages

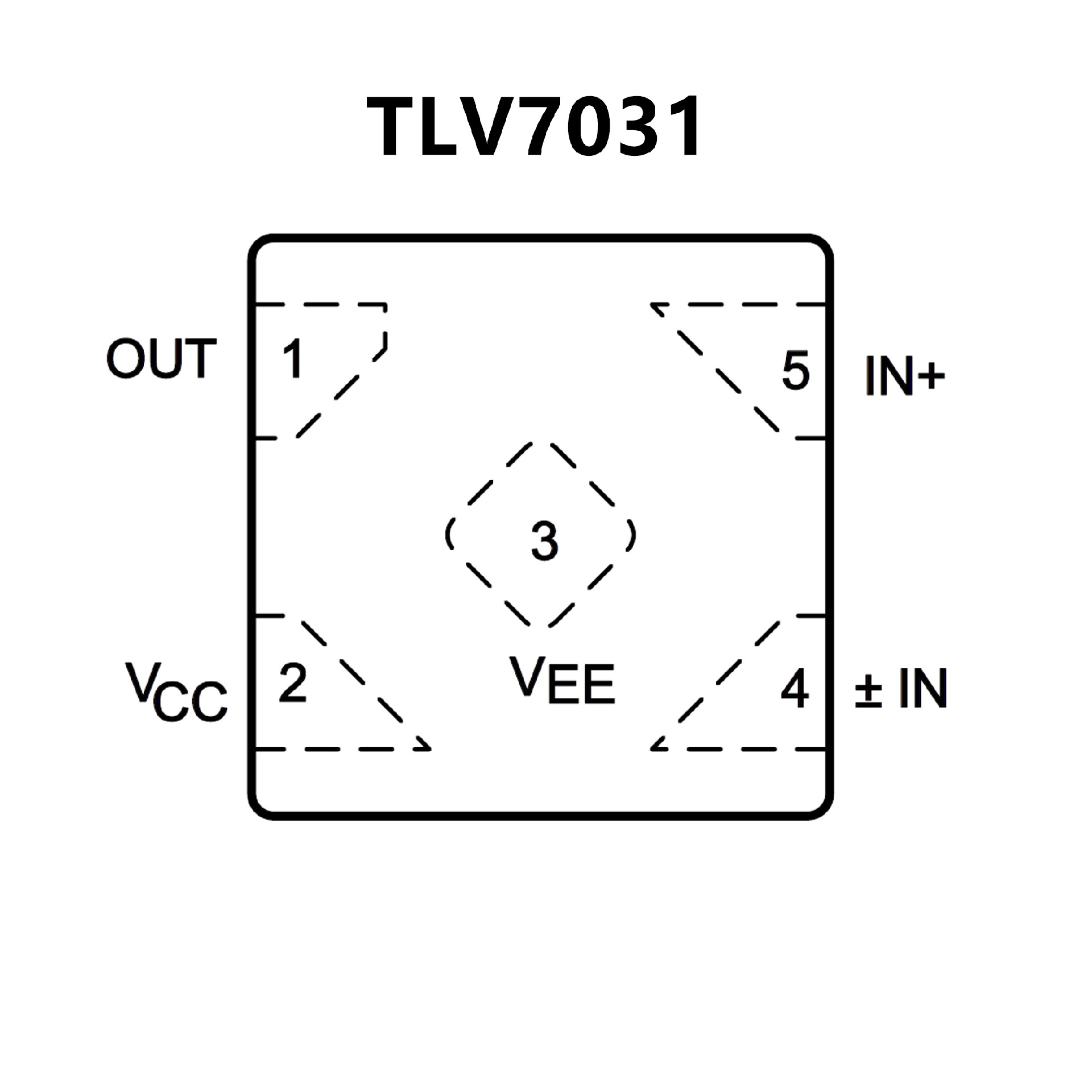

? Wide supply voltage range of 1.6 V to 6.5 V
? Quiescent supply current of 315 nA
? Low propagation delay of 3 μs
? Rail-to-rail common-mode input voltage
? Internal hysteresis
? Push-pull output (TLV703x)
? Open-drain output (TLV704x)
? No phase reversal for overdriven inputs
? –40°C to 125°C Operating temperature
