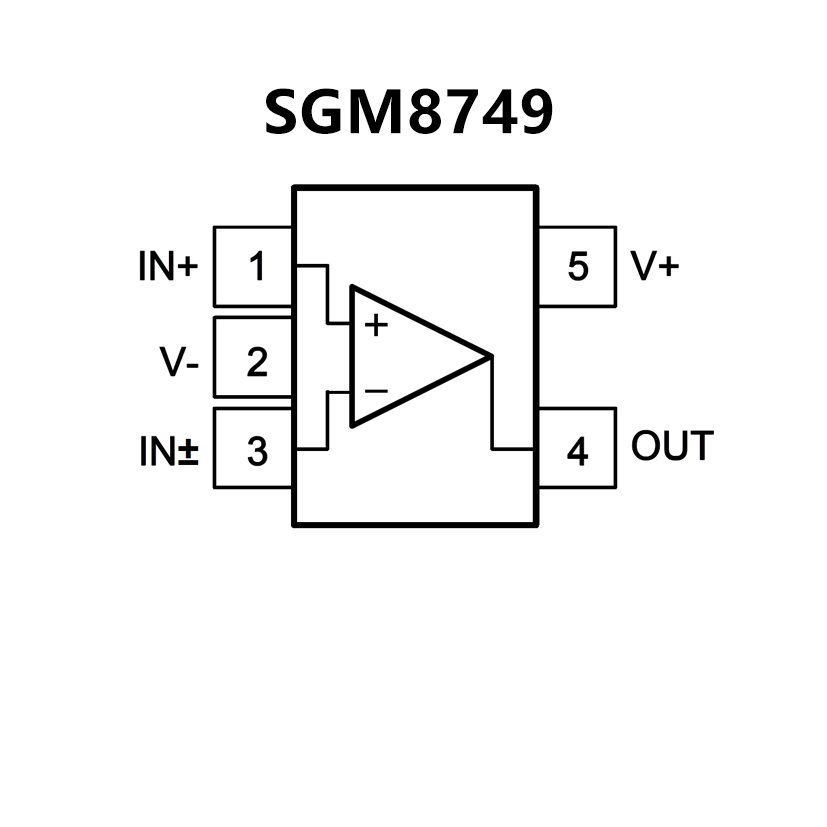

SGM8749.pdf? Fast, 150ns Propagation Delay (10mV Overdrive)
? Low Power Consumption:
22μA (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Open Drain Output
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Output Swing 185mV with 4mA Output Current
? CMOS/TTL-Compatible Output
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and SC70-5 Packages

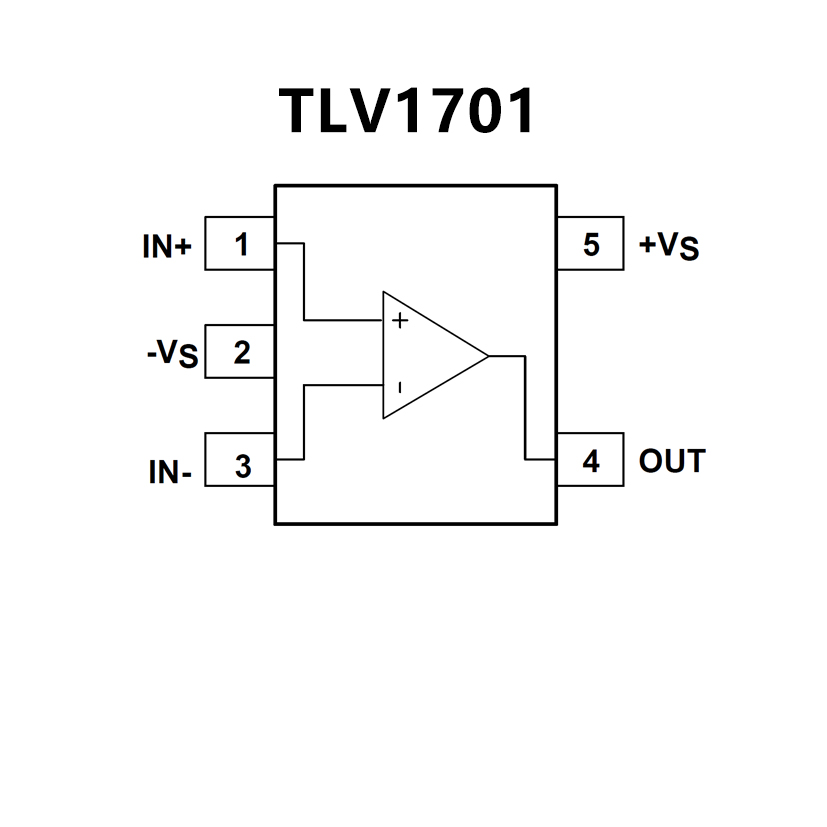

? Supply Range:
+2.2 V to +36 V or ±1.1 V to ±18 V
? Low Quiescent Current:
55 μA per Comparator
? Input Common-Mode Range Includes Both Rails
? Low Propagation Delay: 560 ns
? Low Input Offset Voltage: 300 μV
? Open Collector Outputs:
Up to 36 V Above Negative Supply
Regardless of Supply Voltage
? Industrial Temperature Range:
–40°C to +125°C
? Small Packages:
Single: SC70-5, SOT-23-5, SOT553-5
Dual: VSSOP-8, X2QFN-8
Quad: TSSOP-14
