SGM8750.pdf? Fast, 150ns Propagation Delay (10mV Overdrive)
? Low Power Consumption:
22μA/Channel (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Open Drain Output
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Output Swing 185mV with 4mA Output Current
? CMOS/TTL-Compatible Output
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

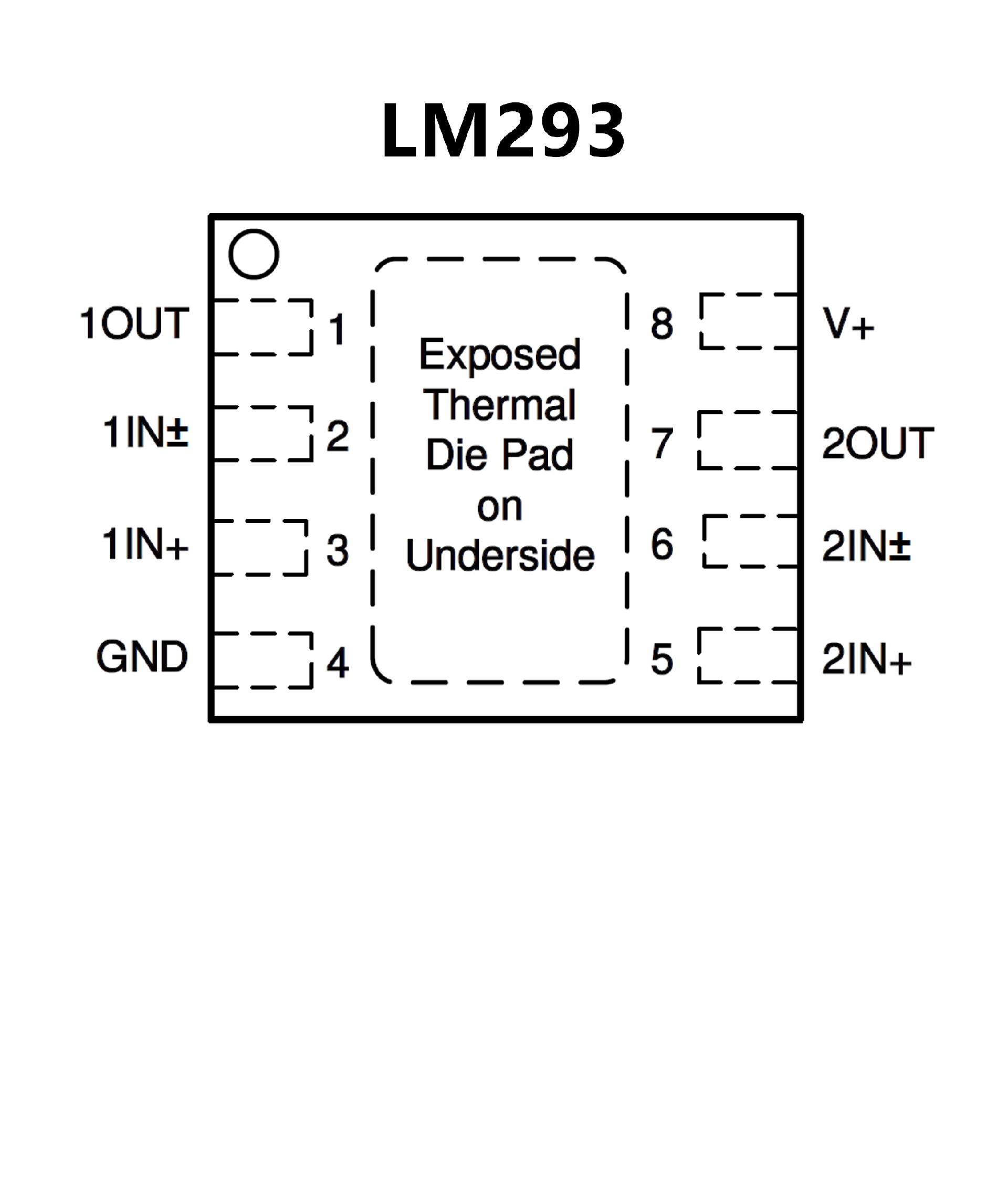

? NEW LM393B and LM2903B
? Improved specifications of B-version
Maximum rating: up to 38 V
ESD rating (HBM): 2k V
Low input offset: 0.37 mV
Low input bias current: 3.5 nA
Low supply-current: 200 μA per comparator
Faster response time of 1 μsec
Extended temperature range for LM393B
Available in tiny 2 x 2mm WSON package
? B-version is drop-in replacement for LM293,
LM393 and LM2903, A and V versions
? Common-mode input voltage range includes
ground
? Differential input voltage range equal to
maximumrated supply voltage: ±38 V
? Low output saturation voltage
? Output compatible with TTL, MOS, and CMOS
