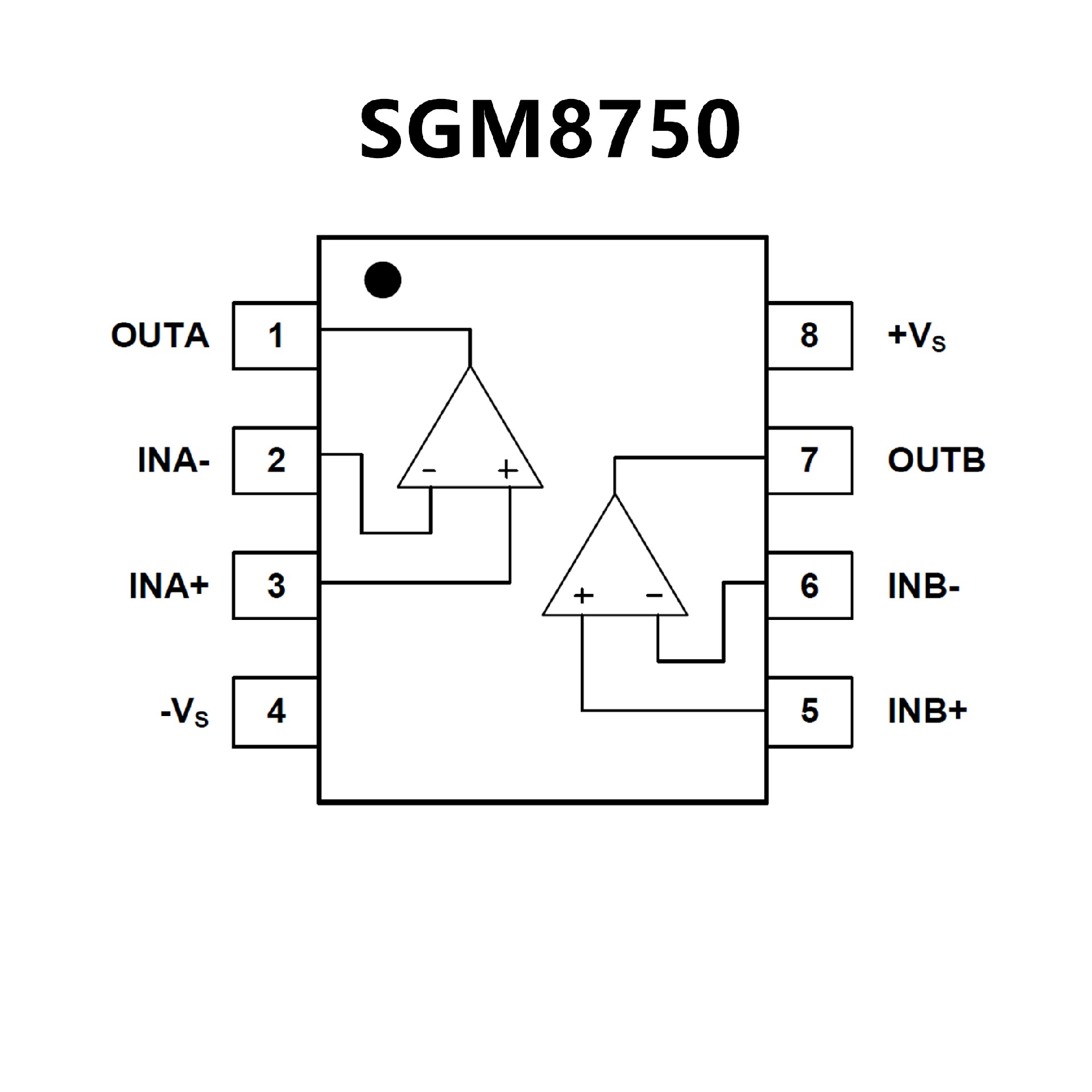

SGM8750XS8G.pdf? Fast, 150ns Propagation Delay (10mV Overdrive)
? Low Power Consumption:
22μA/Channel (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Open Drain Output
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Output Swing 185mV with 4mA Output Current
? CMOS/TTL-Compatible Output
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

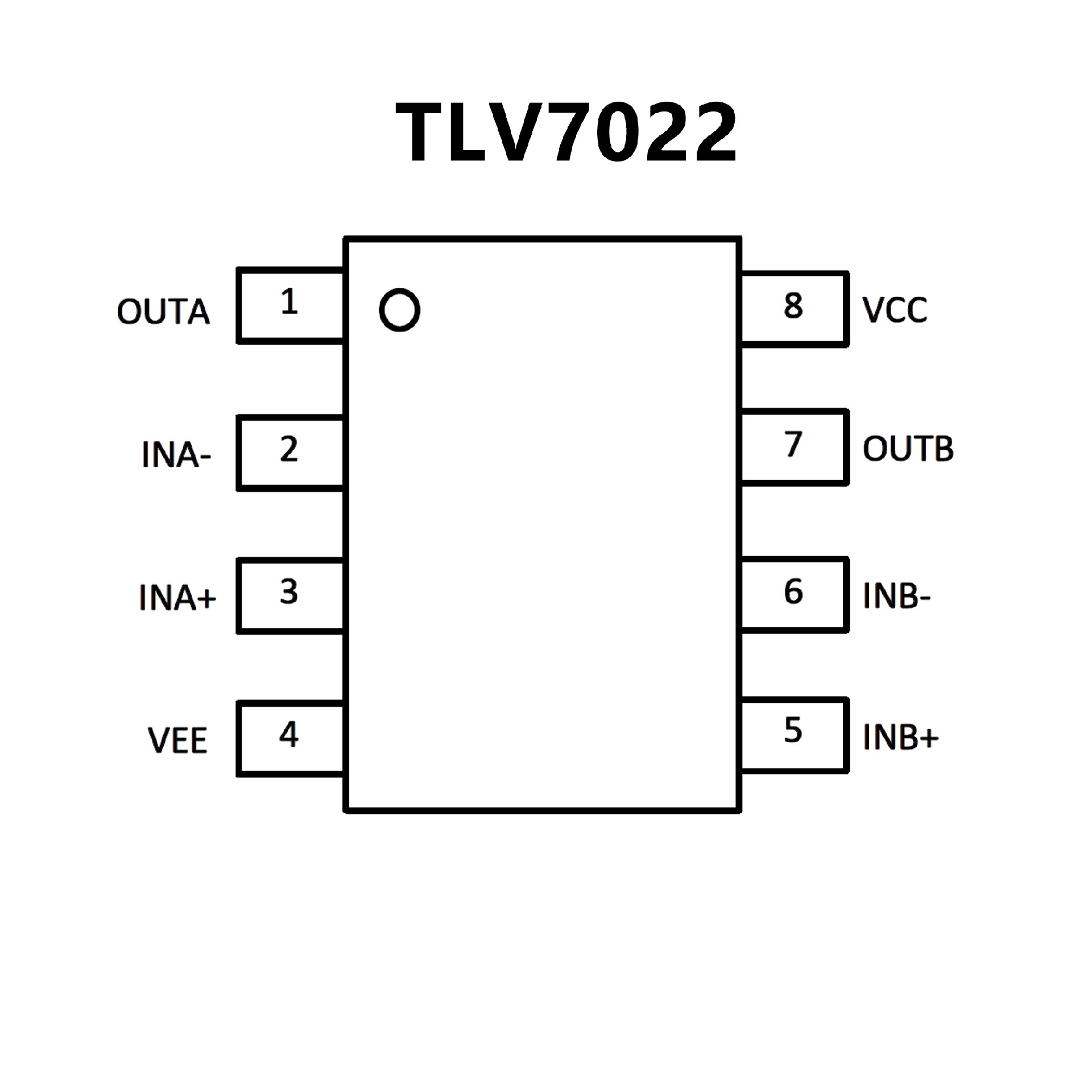

? Ultra-small packages: X2SON (0.8 × 0.8 mm2) ,
WSON (2 × 2 mm2)
? Standard packages: SOT23, SC70, VSSOP
? Wide supply voltage range of 1.6 V to 6.5 V
? Quiescent supply current of 5 μA
? Low propagation delay of 260 ns
? Rail-to-rail common-mode input voltage
? Internal hysteresis
? Push-pull and open-drain output options
? No phase reversal for over driven inputs
? –40°C to 125°C Operating ambient temperature
