4.5ns Rail to Rail, High Speed Comparator in Microsize Packages, SGM8752-1Q P2P TLV3501-Q1.
SGM8752-1Q
SGM8752-1Q.pdf
SGM8752-1Q.pdfFEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? High Speed: 6.5ns Propagation Delay
? Push-Pull CMOS Output Structure
? Rail-to-Rail Input and Output
? Supply Voltage: 2.7V to 5.5V
? Low Quiescent Current: 1.8mA
? Available in a Green SOT-23-5 Package

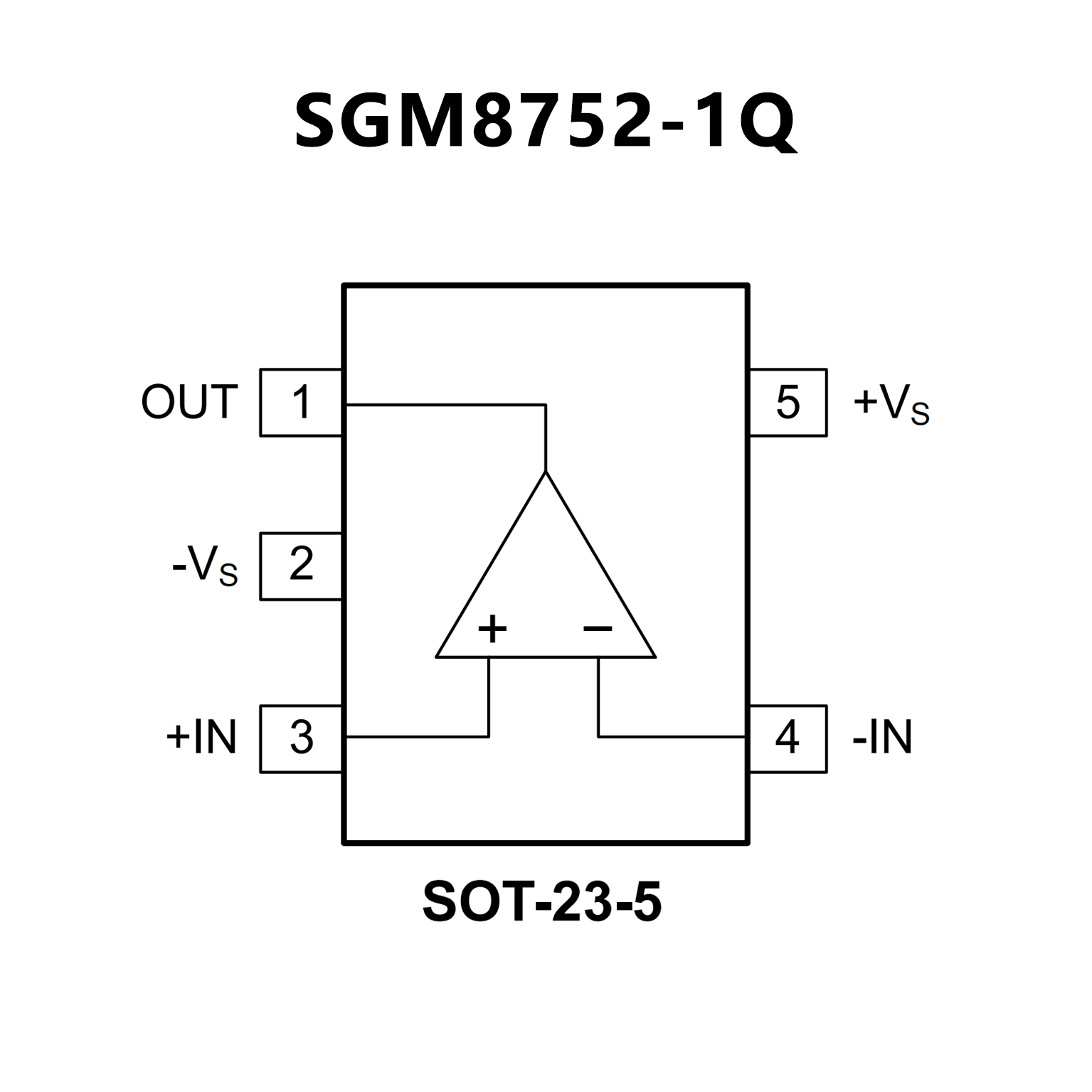

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Qualified for Automotive Applications
Device Temperature Grade 1: –40°C to
125°C Ambient Operating Temperature Range
Device HBM Classification Level 2
Device CDM Classification Level C4B
? High Speed: 4.5 ns
? Rail-To-Rail I/O
Supply Voltage: 2.7 V to 5.5 V
? Push-Pull CMOS Output Stage
? Shutdown
? Micro Package: SOT23-6
? Low Supply Current: 3.2 mA
? Z-Suffix Offers Improved Delamination

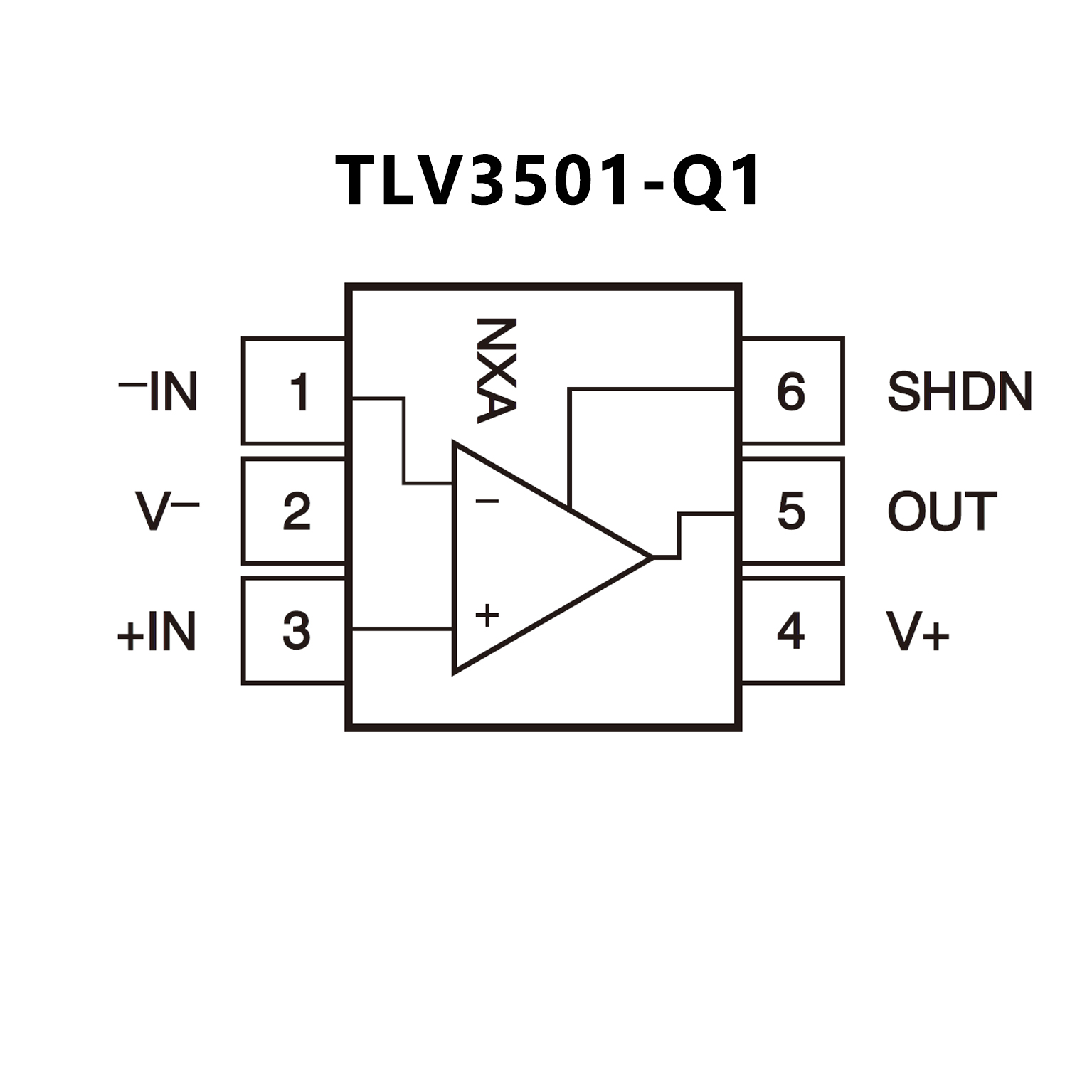

PIN CONFIGUTION
