SGM8752-1Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? High Speed: 6.5ns Propagation Delay
? Push-Pull CMOS Output Structure
? Rail-to-Rail Input and Output
? Supply Voltage: 2.7V to 5.5V
? Low Quiescent Current: 1.8mA
? Available in a Green SOT-23-5 Package
? Qualified for automotive applications
? AEC-Q100 qualified with the following results:
– Device temperature grade 1: –40°C to 125°C ambient
operating temperature range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C3
? Fast propagation delay: 2.5 ns
? Low overdrive dispersion: 600 ps
? High toggle frequency: 325 MHz
? Narrow pulse width detection capability: 1.25 ns
? Push-pull output
? Wide supply range: 2.4 V to 5.5 V
? Input common-mode range extends 200 mV beyond
both rails
? Low input offset voltage: ±5 mV
? Known startup condition at output
? TLV3603 specific features:
– Adjustable hysteresis control pin
– Latch function
? Packages:

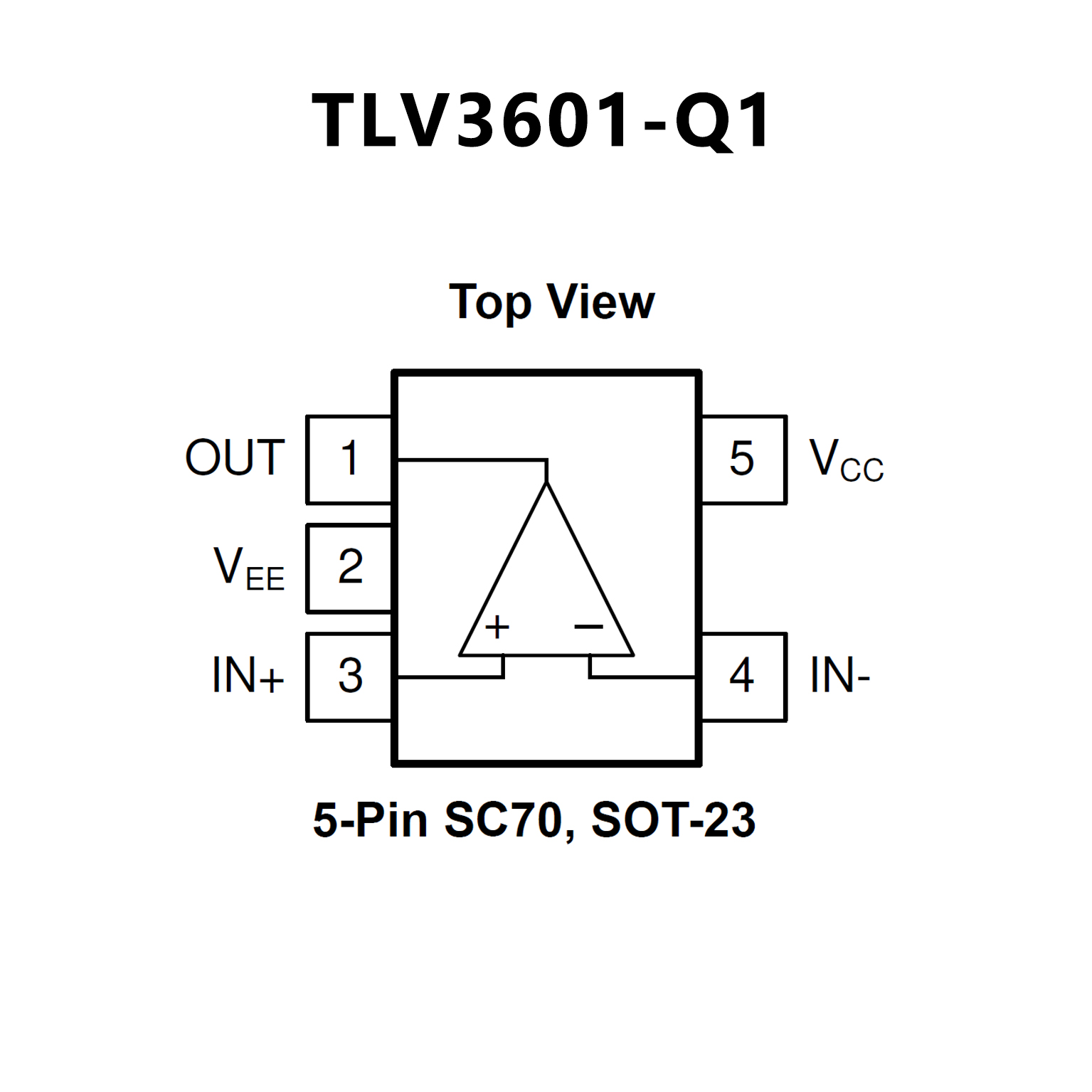

TLV3601 (SC70-5), (SOT23-5),
TLV3603 (SC70-6),
TLV3602 (VSSOP-8), (WSON-8)
? Functional Safety Capable
– Documentation available to aid functional safety system
design [TLV3601/2-Q1]
– Documentation available to aid functional safety system
design [TLV3603-Q1]
