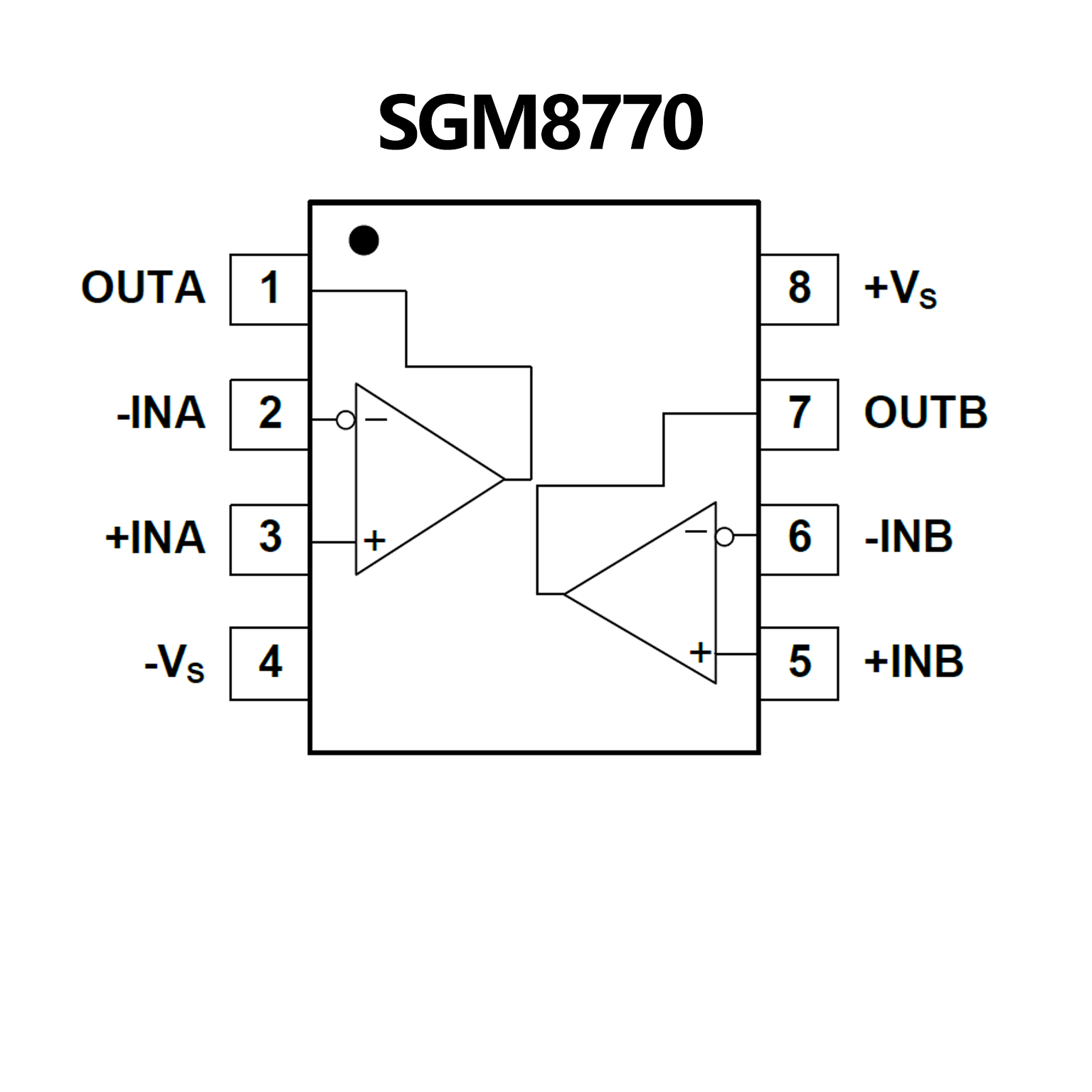

SGM8770.pdf? Single Supply or Dual Supplies
? Wide Supply Voltage Range: 2.8V to 36V
? Open-Drain Output
? Low Supply Current Independent
of Supply Voltage: 310μA (TYP)
? Low Input Offset Voltage: 2.4mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Input Common Mode Voltage
Range Includes Ground
? Differential Input Voltage Range
Equal to Maximum-Rated Supply Voltage: ±36V
? Low Output Saturation Voltage
? Output Compatible with TTL and CMOS
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8L Packages

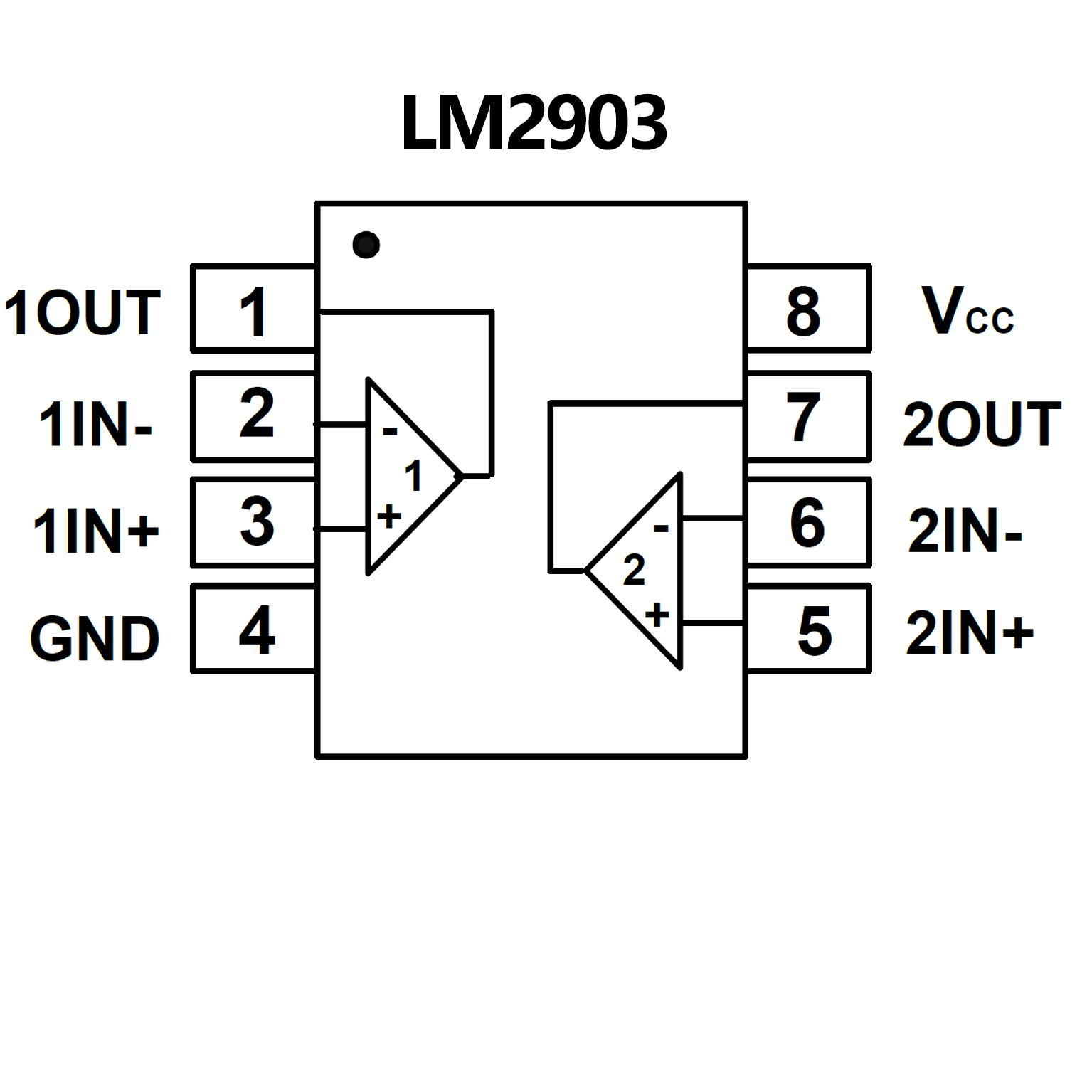

? Wide Power Supply Range:
? Single Supply: 2V to 36V
? Dual Supplies: ±1.0V to ±18V
? Very Low Supply Current Drain—Independent of Supply Voltage
? LM2903: 0.6mA
? LM2901: 0.9mA
? Low Input Bias Current: 25nA
? Low Input Offset Current: ±5nA
? Typical Offset Voltage:
? Non-A Device: 2mV
? A Device: 1mV
? Common-Mode Input Voltage Range Includes Ground
? Differential Input Voltage Range Equal to the Power SupplyVoltage
? Low Output Saturation Voltage:
? LM2903: 200mV at 4mA
? LM2901: 100mV at 4mA
? Output Voltage Compatible with TTL, MOS and CMOS
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
