110kHz, Rail-to-Rail Input and Output Operational Amplifiers, SGM8952 Replace AD8602.
SGM8952
SGM8952.pdf
SGM8952.pdfFEATURES
? Rail-to-Rail Input and Output
? Supply Voltage Range: 1.8V to 5.5V
? Low Input Offset Voltage: 0.2mV (TYP)
? Gain-Bandwidth Product: 110kHz
? Low Supply Current:
SGM8951 26μA (TYP)
SGM8952 34μA (TYP)
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8951 Available in SOT-23-5 and SOIC-8Packages
SGM8952 Available in MSOP-8 and SOIC-8 Packages

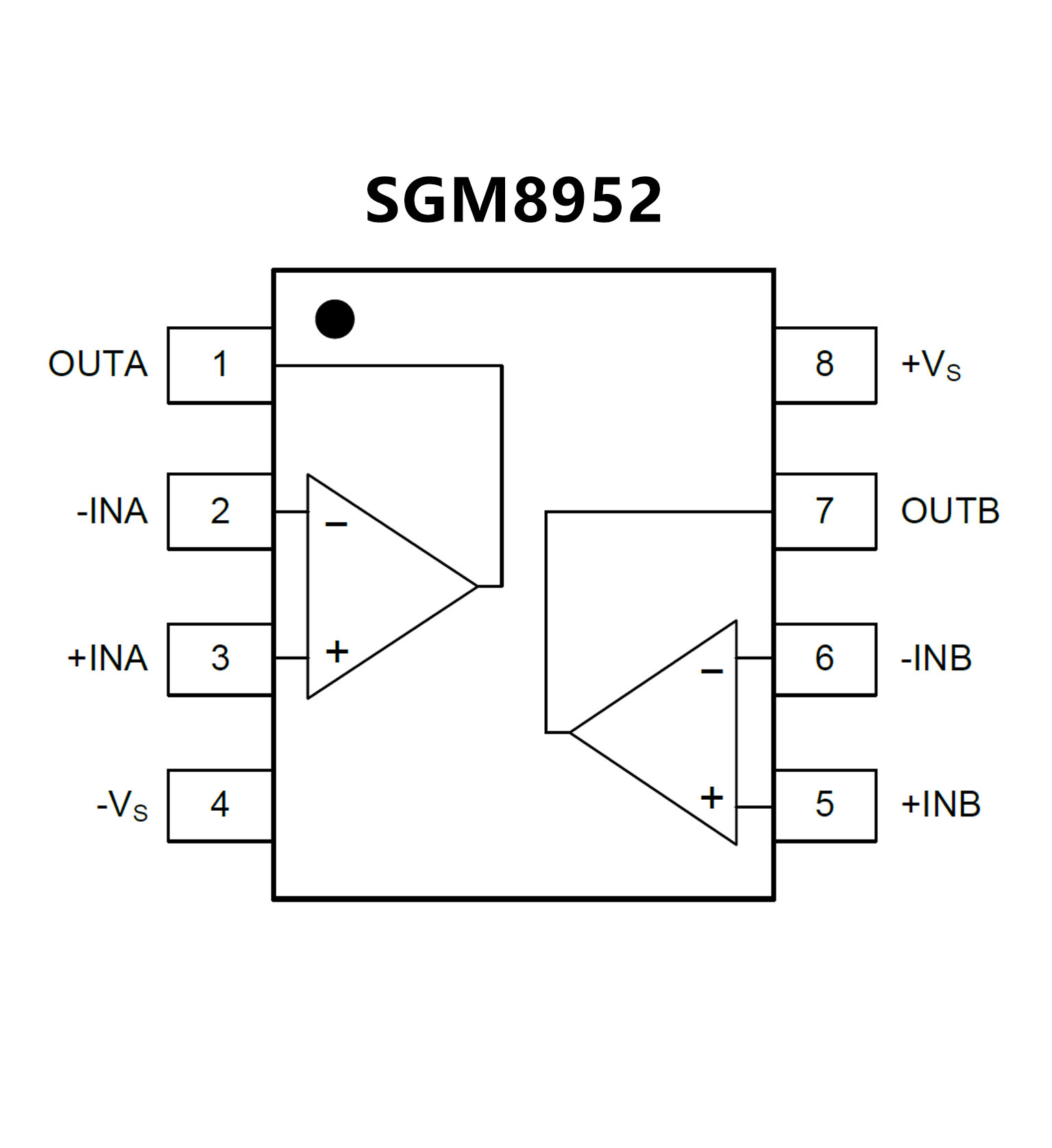

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Low offset voltage: 500 μV maximum
? Single-supply operation: 2.7 V to 5.5 V
? Low supply current: 750 μA/Amplifier
? Wide bandwidth: 8 MHz
? Slew rate: 5 V/μs
? Low distortion
? No phase reversal
? Low input currents
? Unity-gain stable
? Qualified for automotive applications

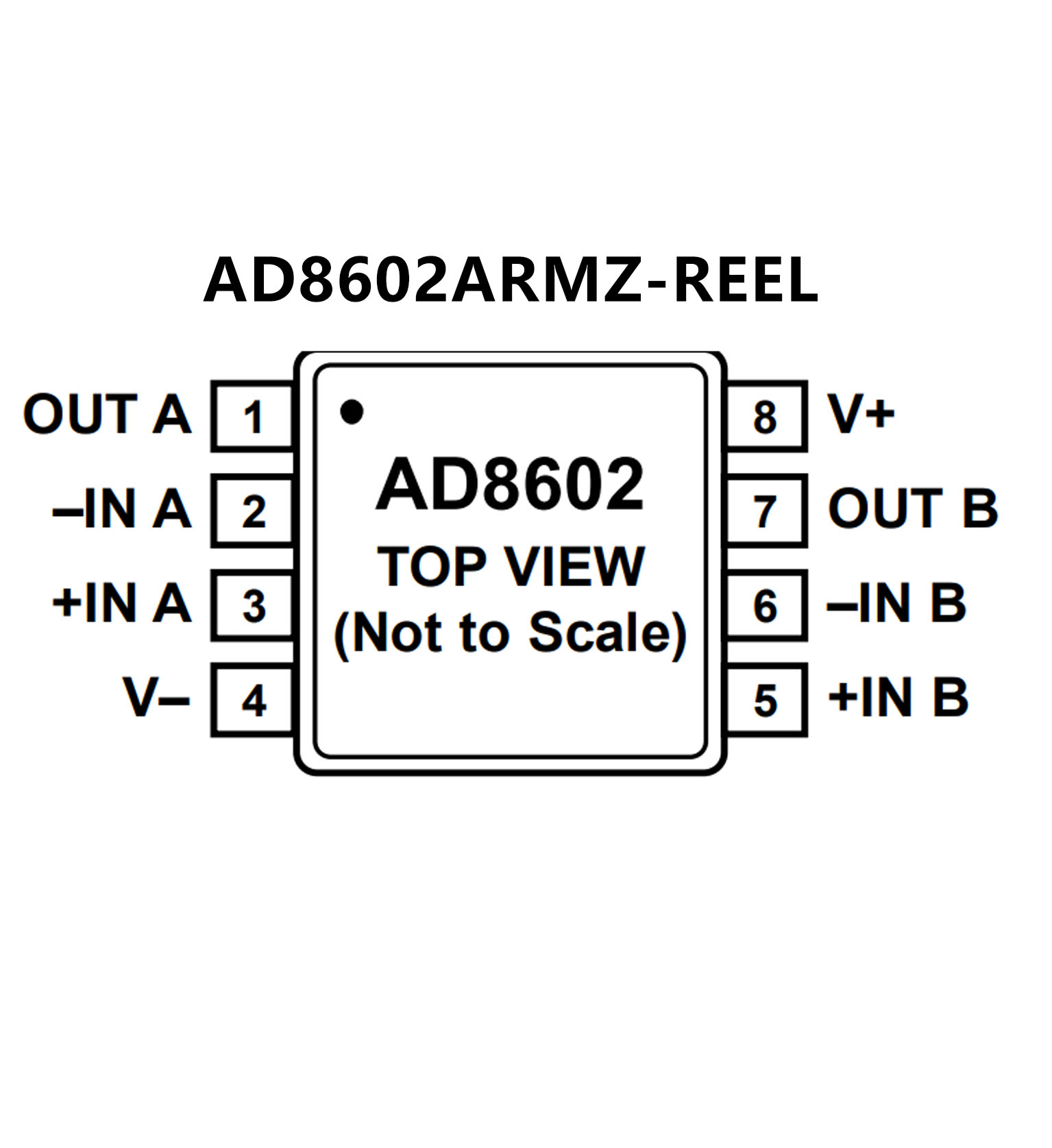

PIN CONFIGUTION
