High precision Operational Amplifier,SGM8955 Replace MCP6061.
SGM8955
SGM8955.pdf
SGM8955.pdfFEATURES
? Low Offset Voltage: 50μV (MAX)
? Low 0.1Hz to 10Hz Noise: 2μVP-P
? Quiescent Current: 20μA/Amplifier (TYP)
? Integrated RFI Filter
? Single-Supply Operation
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input and Output
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8955 Available in Green SOT-23-5, SC70-5
and SOIC-8

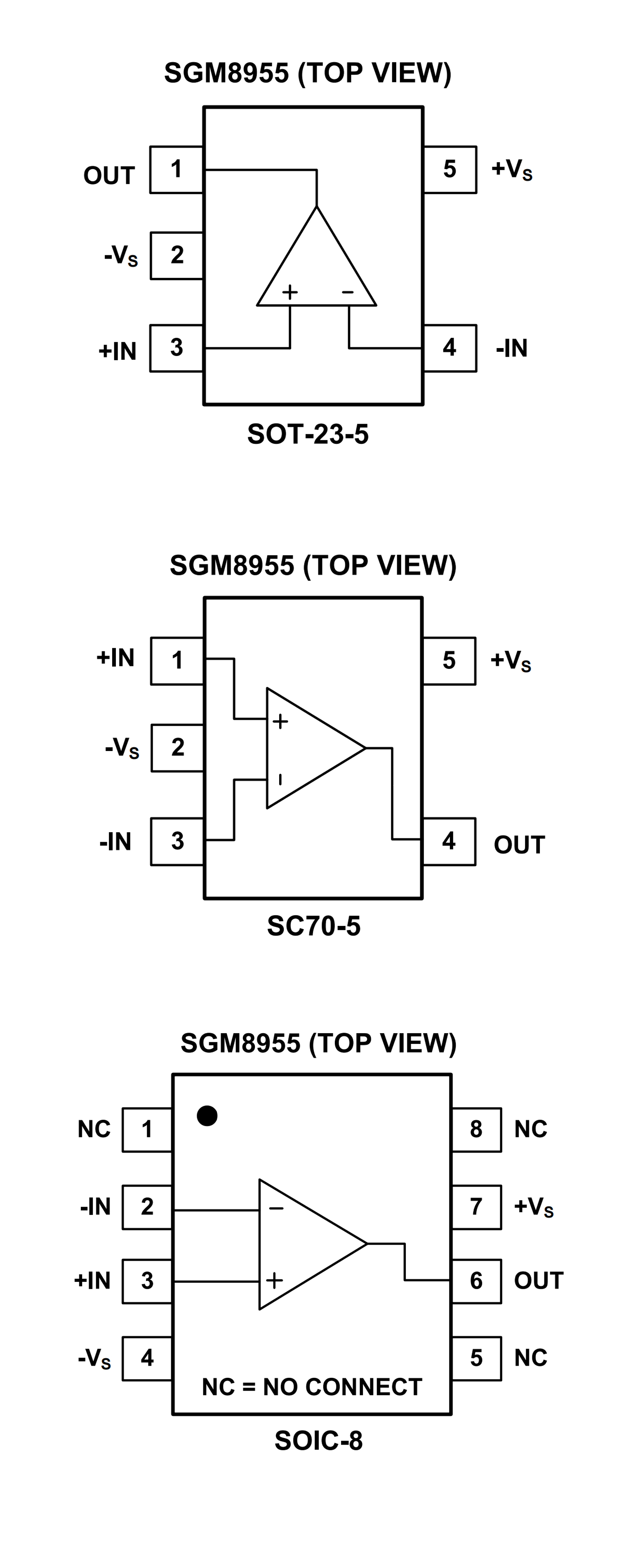

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low Offset Voltage: ±150 μV (maximum)
? Low Quiescent Current: 60 μA (typical)
? Rail-to-Rail Input and Output
? Wide Supply Voltage Range: 1.8V to 6.0V
? Gain Bandwidth Product: 730 kHz (typical)
? Unity Gain Stable
? Extended Temperature Range: -40°C to +125°C
? No Phase Reversal

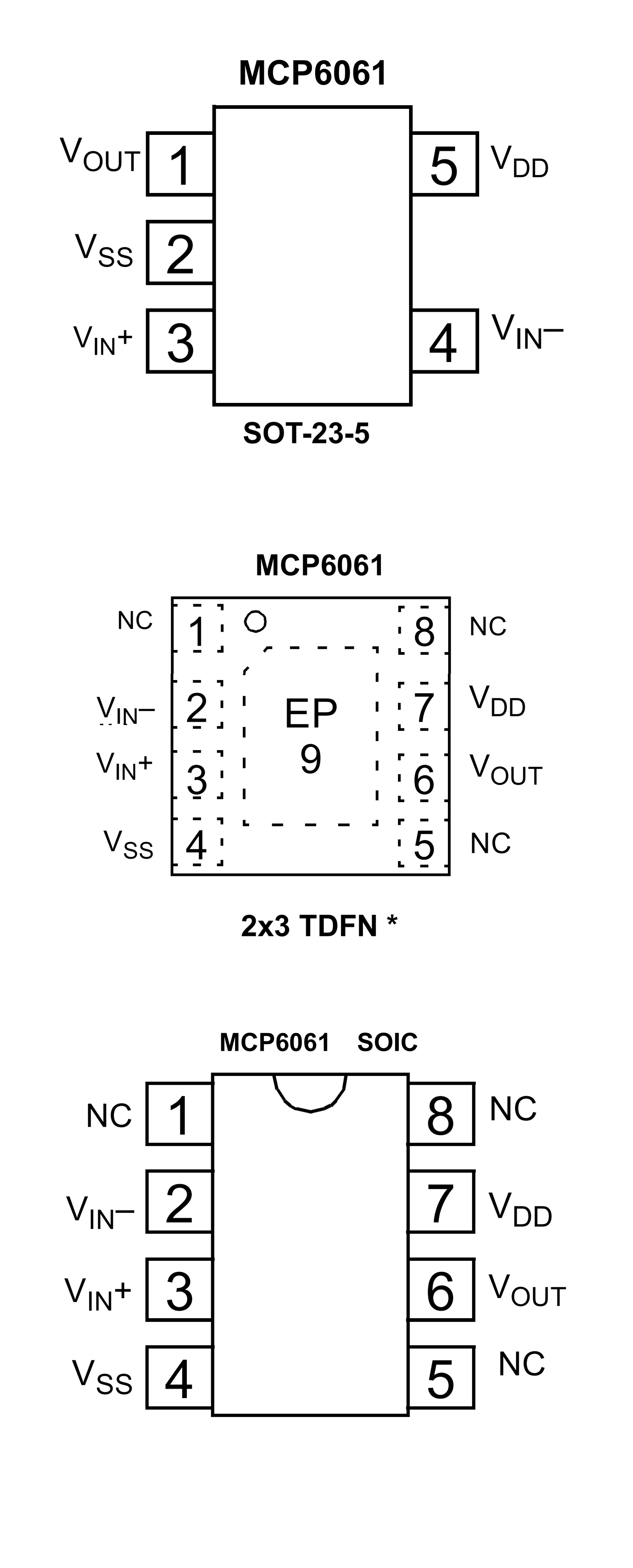

PIN CONFIGUTION
