High Precision Operational Amplifier, SGM8957-1 Replace OPA333.
SGM8957-1
SGM8957-1.pdf
SGM8957-1.pdfFEATURES
? Low Offset Voltage: 25μV (MAX)
? Low 0.1Hz to 10Hz Noise: 2μVP-P
? Quiescent Current: 20μA/Amplifier (TYP)
? Single Supply Operation
? Integrated RFI Filter
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input/Output
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8957-1 Available in Green SOT-23-5, SC70-5
and SOIC-8 Packages

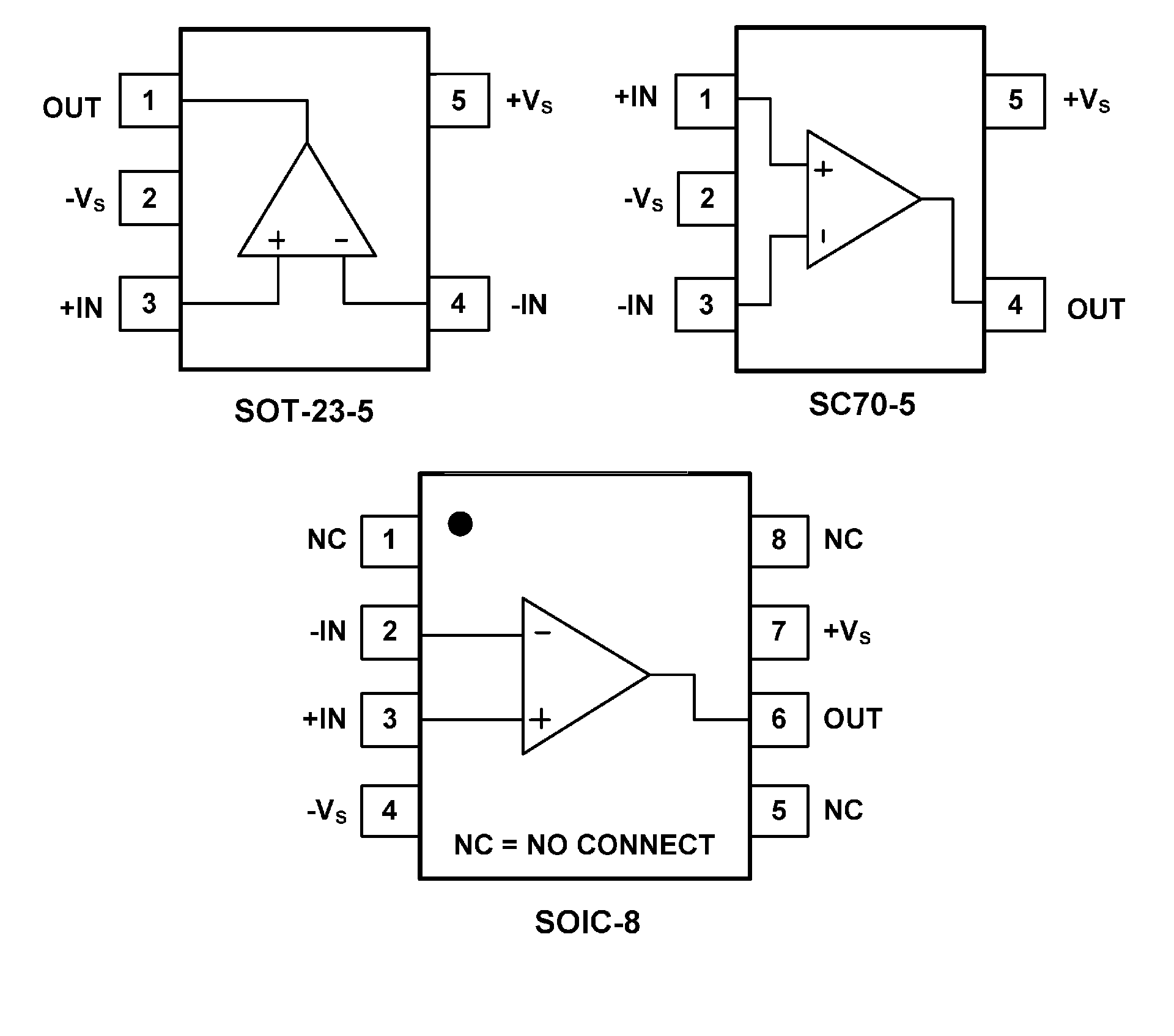

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Low Offset Voltage: 10 μV (Maximum)
? Zero Drift: 0.05 μV/°C (Maximum)
? 0.01-Hz to 10-Hz Noise: 1.1 μVPP
? Quiescent Current: 17 μA
? Single-Supply Operation
? Supply Voltage: 1.8 V to 5.5 V
? Rail-to-Rail Input/Output
? microSize Packages: SC70 and SOT23

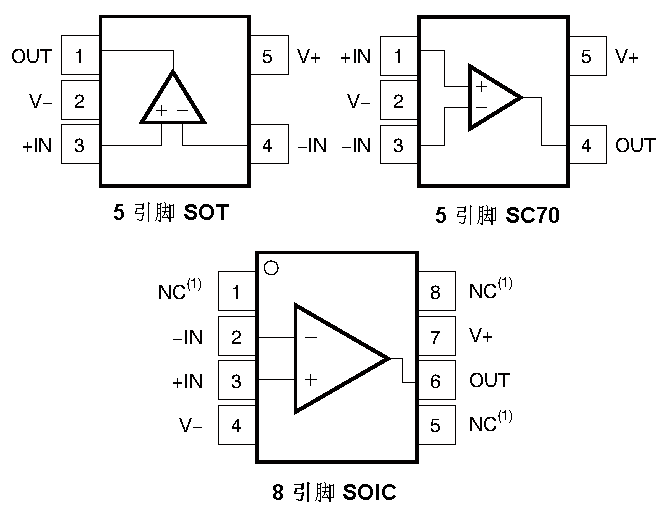

PIN CONFIGUTION
