High Precision Operational Amplifier, SGM8957-2 Replace OPA2333.
SGM8957-2
SGM8957-2.pdf
SGM8957-2.pdfFEATURES
? Low Offset Voltage: 25μV (MAX)
? Low 0.1Hz to 10Hz Noise: 2μVP-P
? Quiescent Current: 20μA/Amplifier (TYP)
? Single Supply Operation
? Integrated RFI Filter
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input/Output
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8957-2 Available in Green SOIC-8, MSOP-8 and
TDFN-3×3-8L Packages

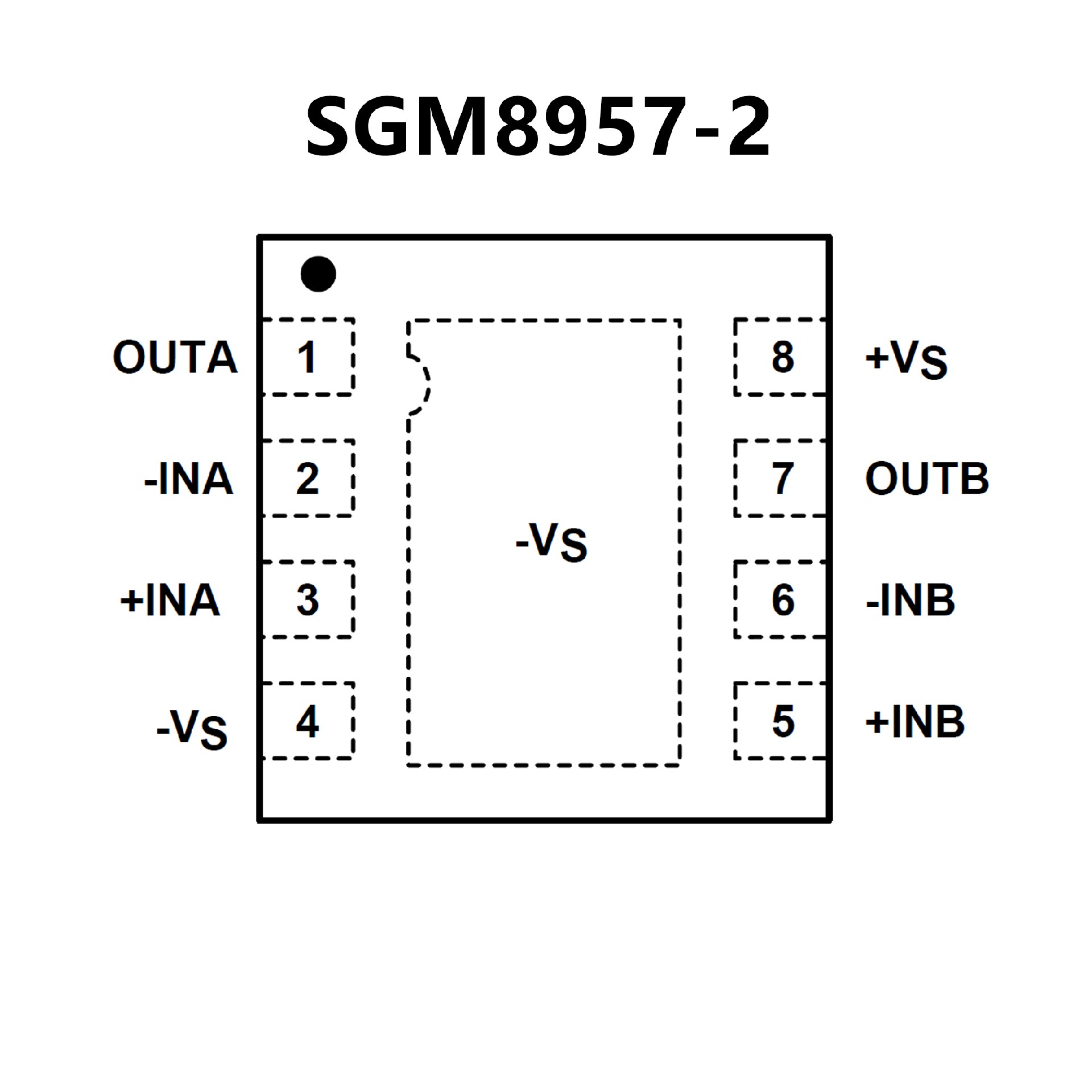

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low Offset Voltage: 10 μV (Maximum)
? Zero Drift: 0.05 μV/°C (Maximum)
? 0.01-Hz to 10-Hz Noise: 1.1 μVPP
? Quiescent Current: 17 μA
? Single-Supply Operation
? Supply Voltage: 1.8 V to 5.5 V
? Rail-to-Rail Input/Output

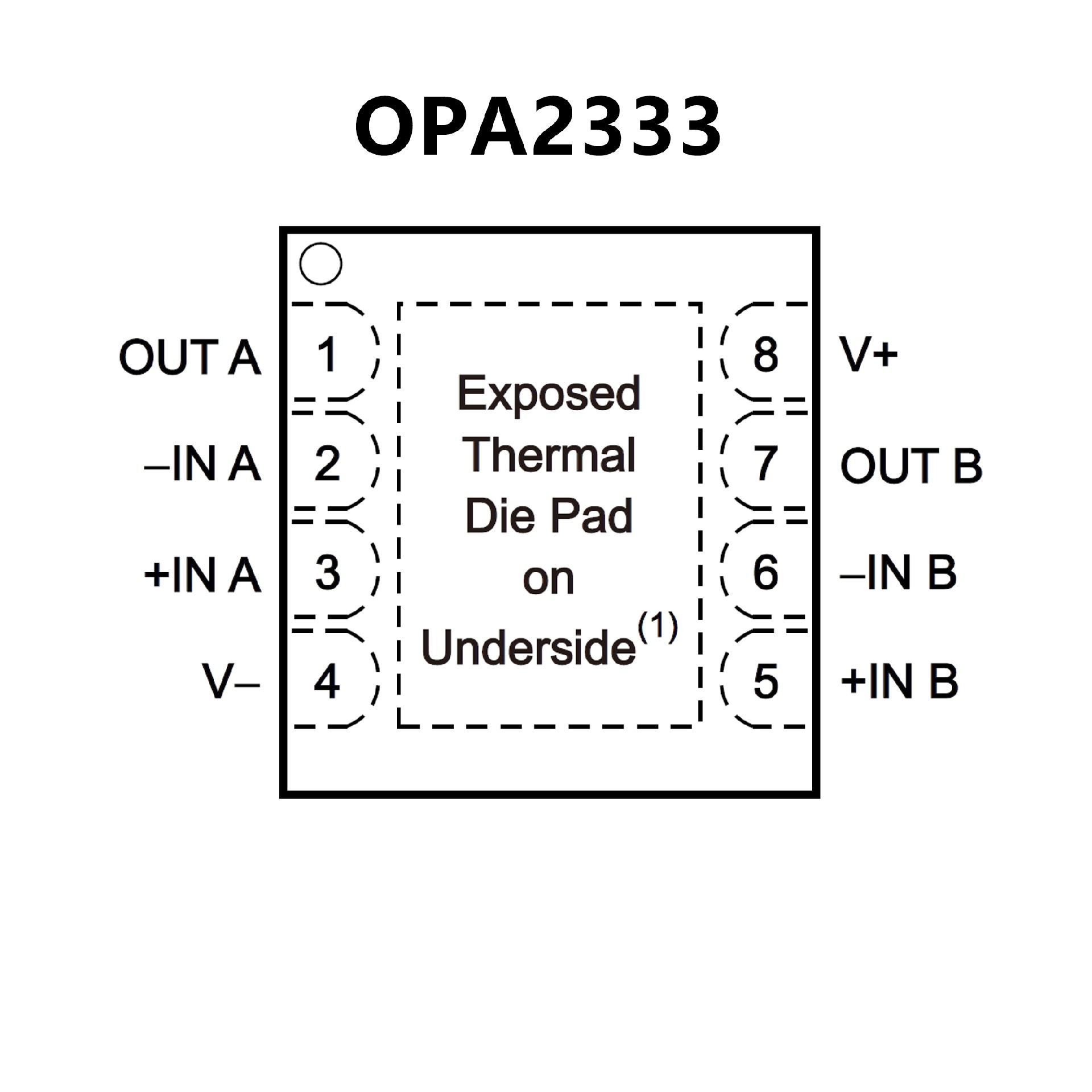

PIN CONFIGUTION
