SGM8965-1.pdf? Gain Bandwidth: 50MHz
? Excellent THD+N: 0.00015%
? High CMRR: 100dB (TYP)
? Rail-to-Rail Input and Output: Input 100mV Beyond Supply Rail
? Low Noise: 4.5nV/Hz at 100kHz
? Slew Rate: 30V/μs
? High Precision:
Low Offset: 250μV (MAX)
Low Input Bias Current: 0.5pA (TYP)
? Stable When Gain ≥ 4
? 2.2V to 5.5V Operation Voltage Range
? -40℃ to +125℃ Operating Temperature Range

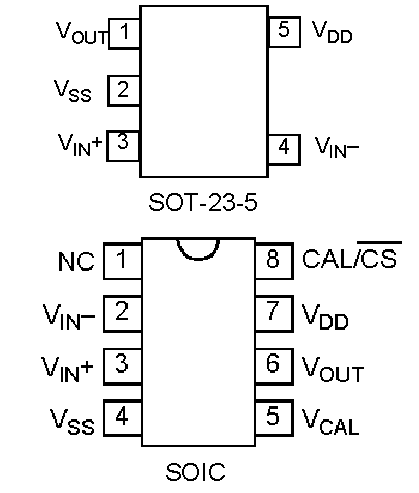

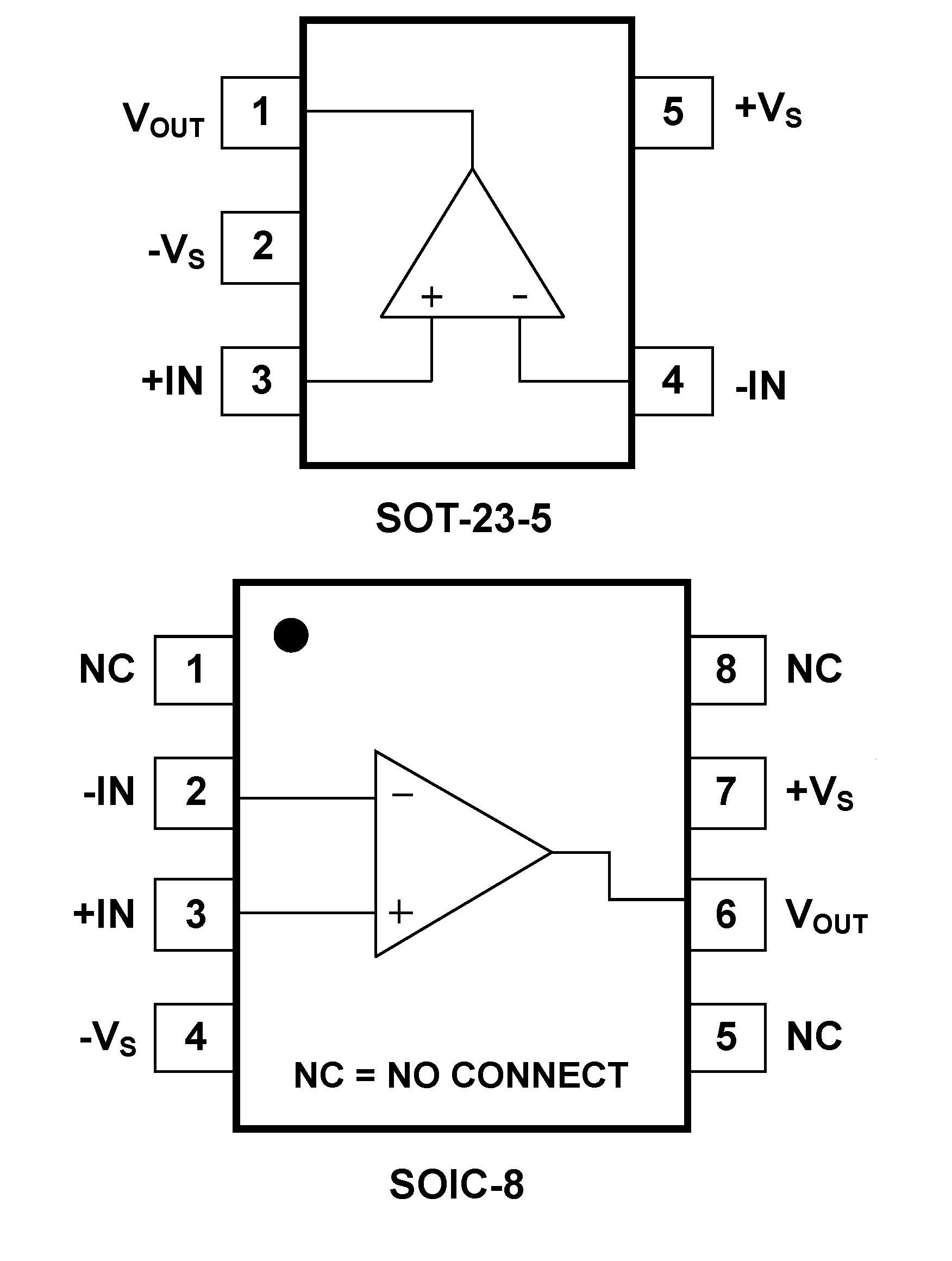

? Small Packaging: SOT-23-5 and SOIC-8 Packages
? Gain-Bandwidth Product: 50 MHz
? Slew Rate: 30 V/μs
? Low Input Offset: ±200 μV (maximum)
? Low Input Bias Current: 6 pA (typical)
? Noise: 7.5 nV/√Hz, at 1 MHz
? Ease-of-Use:
- Unity-Gain Stable
- Rail-to-Rail Output
- Input Range incl. Negative Rail
- No Phase Reversal
? Supply Voltage Range: +2.5V to +5.5V
? High Output Current: ±100 mA
? Supply Current: 6.0 mA/Ch (typical)
? Low-Power Mode: 5 μA/Ch
