50MHz, Low Distortion,RRIO, Single-Supply Operational Amplifiers,SGM8965A-1XN5G Replace NJM2716F.
SGM8965A-1XN5G
SGM8965A-1XN5G.pdf
SGM8965A-1XN5G.pdfFEATURES
? Gain Bandwidth: 50MHz
? High CMRR: 94dB (TYP)
? Rail-to-Rail Input and Output
? Low Noise: 5.5nV/ Hz at 100kHz
? Slew Rate: 30V/μs
? High Precision:
Low Offset: 50μV (TYP), 280μV (MAX)
Low Input Bias Current: 1pA (TYP)
? Unity-Gain Stable
? 2.2V to 5.5V Operation Voltage Range
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8965A-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8965A-2 Available in Green SOIC-8 and
MSOP-8 Packages

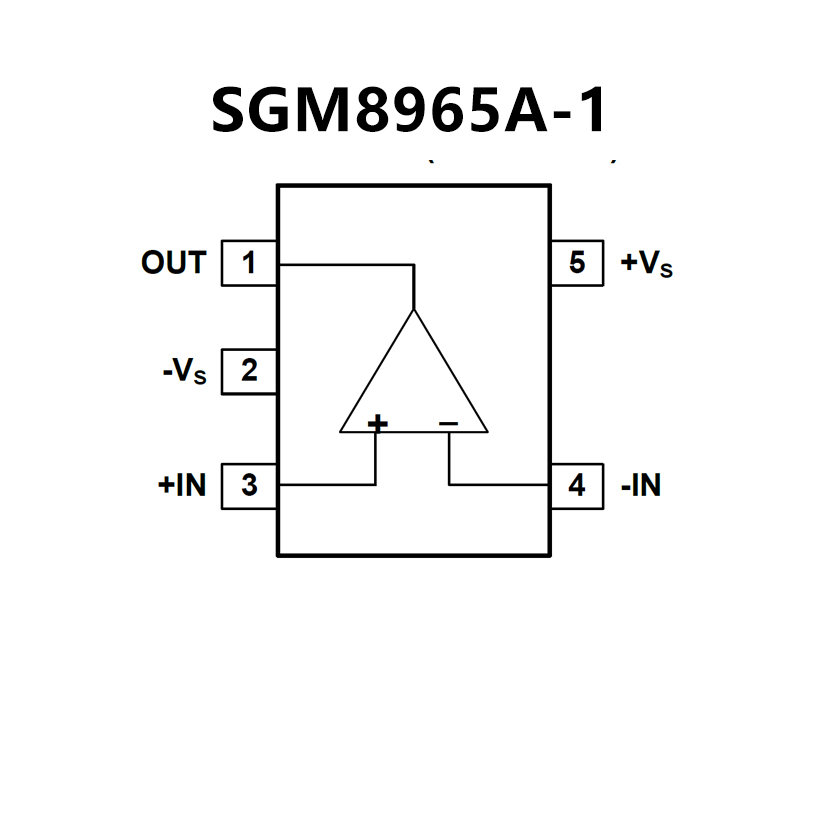

PIN CONFIGUTION
優勢替代
FEATURES
? Single Supply
? Operating Voltage +2.7V to 12V
? Operating Current 5.5mA max.
? High Slew Rate 40V/μs typ.
? Bipolar Technology
? Package Outline SOT?23?5

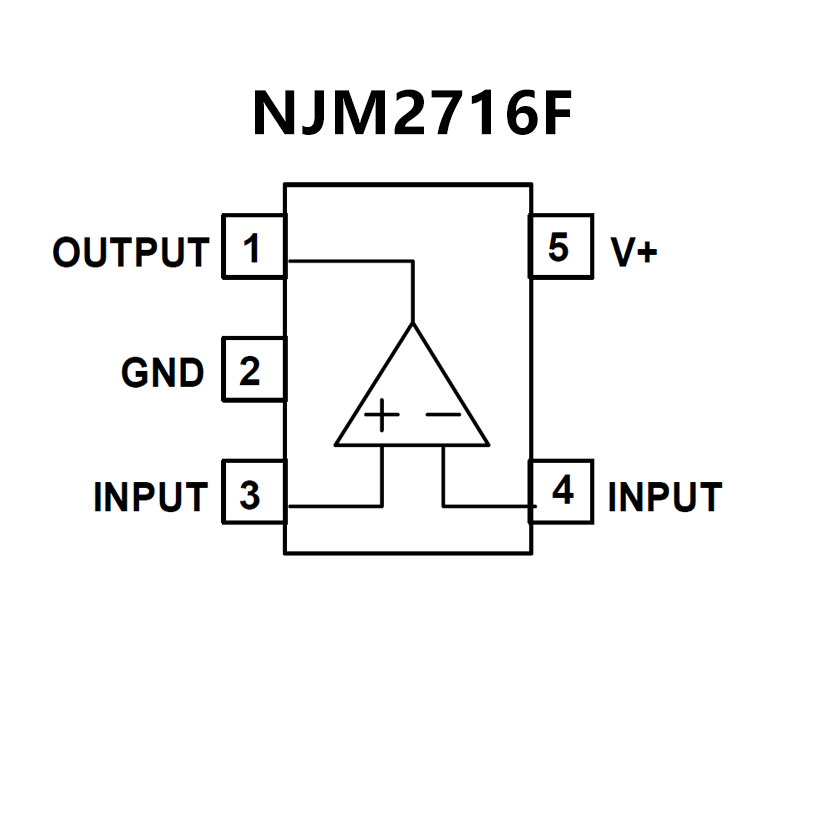

PIN CONFIGUTION
