SGM8968-4XTS14G.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 240μV (MAX)
? High Gain-Bandwidth Product: 10MHz
? High Slew Rate: 20V/μs
? Settling Time to 0.1% with 2V Step: 280ns
? Overload Recovery Time: 100ns
? Low Noise: 8nV/Hz at 10kHz
? Supply Voltage Range: 1.8V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
Supply Current: 1.6mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8968-1 Available in Green
SOT-23-5 andSOIC-8 Packages
SGM8968-2 Available in Green
SOIC-8 andMSOP-8 Packages

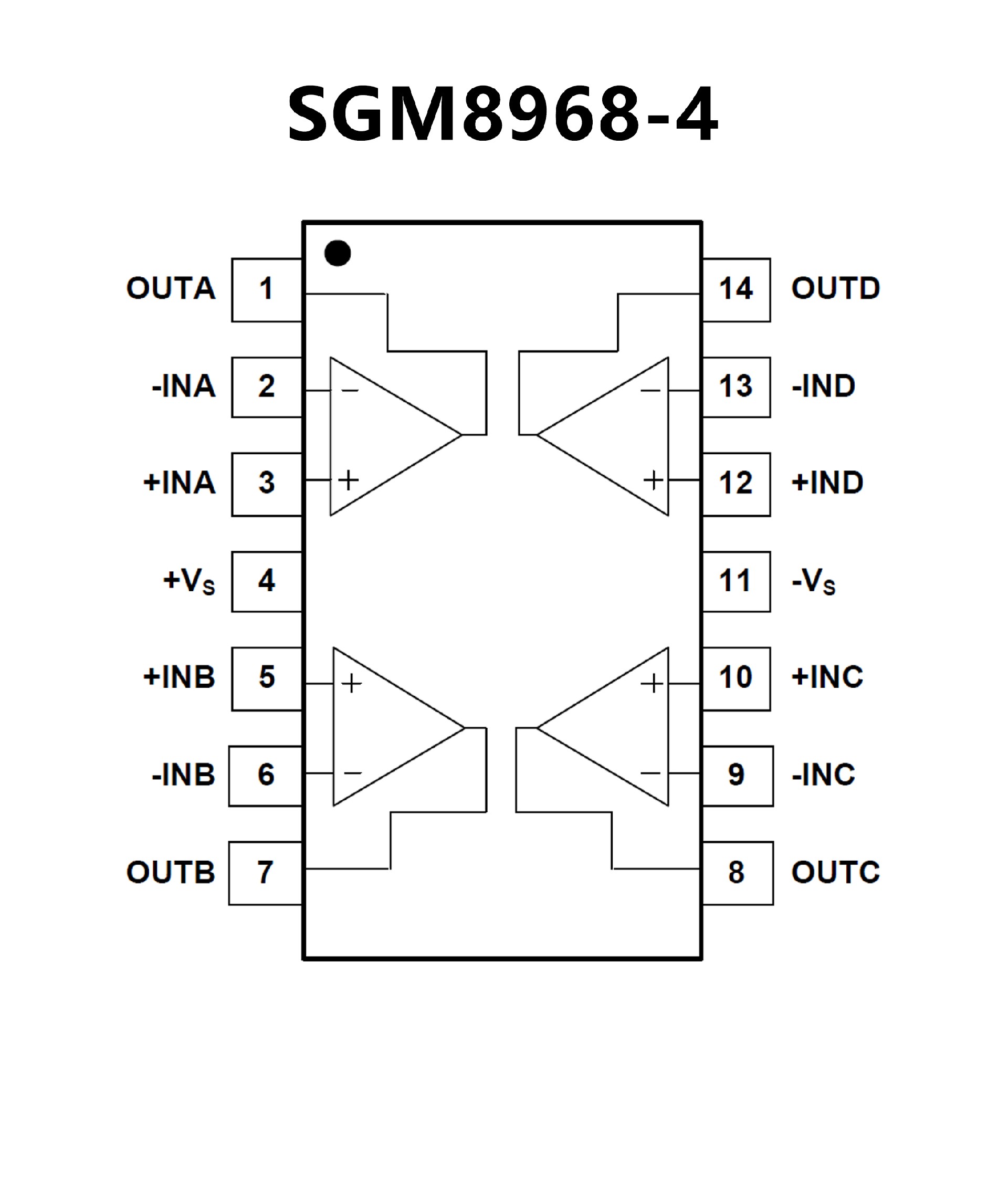

SGM8968-4 Available in Green
SOIC-14 andTSSOP-14 Packages
? Rail-to-Rail Output Swing

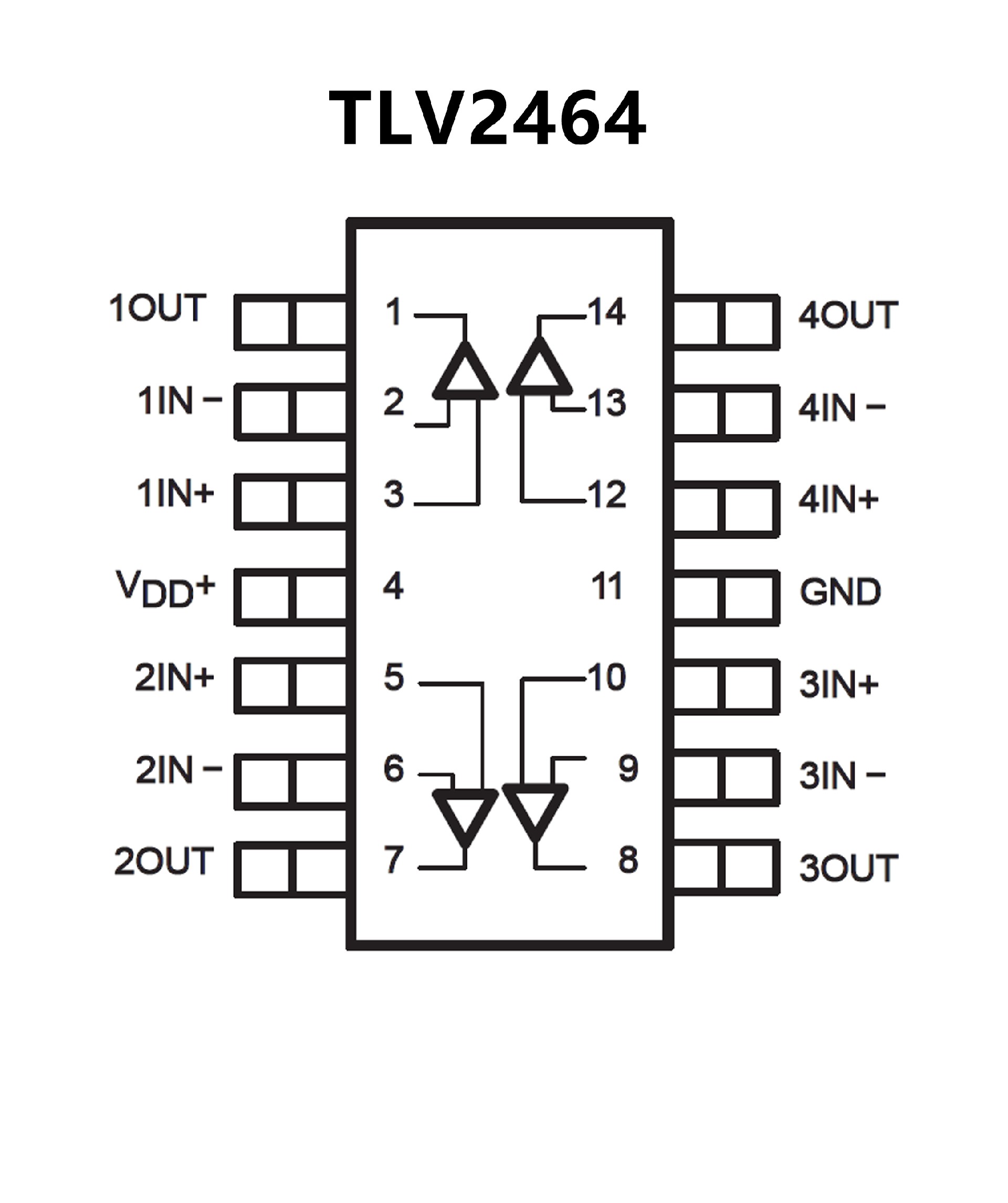

? Gain Bandwidth Product . . . 6.4 MHz
? ±80 mA Output Drive Capability
? Supply Current . . . 500 μA/channel
? Input Offset Voltage . . . 100 μV
? Input Noise Voltage . . . 11 nV/√Hz
? Slew Rate . . . 1.6 V/μs
? Micropower Shutdown Mode
(TLV2460/3/5) . . . 0.3 μA/Channel
? Universal Operational Amplifier EVM
? Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control/Print Support
Qualification to Automotive Standards
