Ultra Small, Supervisory Circuits with Adjustable Sequencing, SGM897 Replace TPS3897.
SGM897
SGM897.pdf
SGM897.pdfFEATURES
? High Voltage Threshold Accuracy:
? +25℃: ±1%
? -40℃ to +125℃: ±1.6%
? Low Power Consumption: 2.1μA (TYP)
? Operating Supply Voltage Range: 1.6V to 5.5V
? Capacitor-Adjustable Delay
? Active-High/Active-Low Enable Input Options
? Active-High/Active-Low Output Options
? Open-Drain (28V Tolerant)/Push-Pull Output Options
? Available in Ultra-Small Green
UTDFN-1.45×1-6ALand TSOT-23-6 Packages

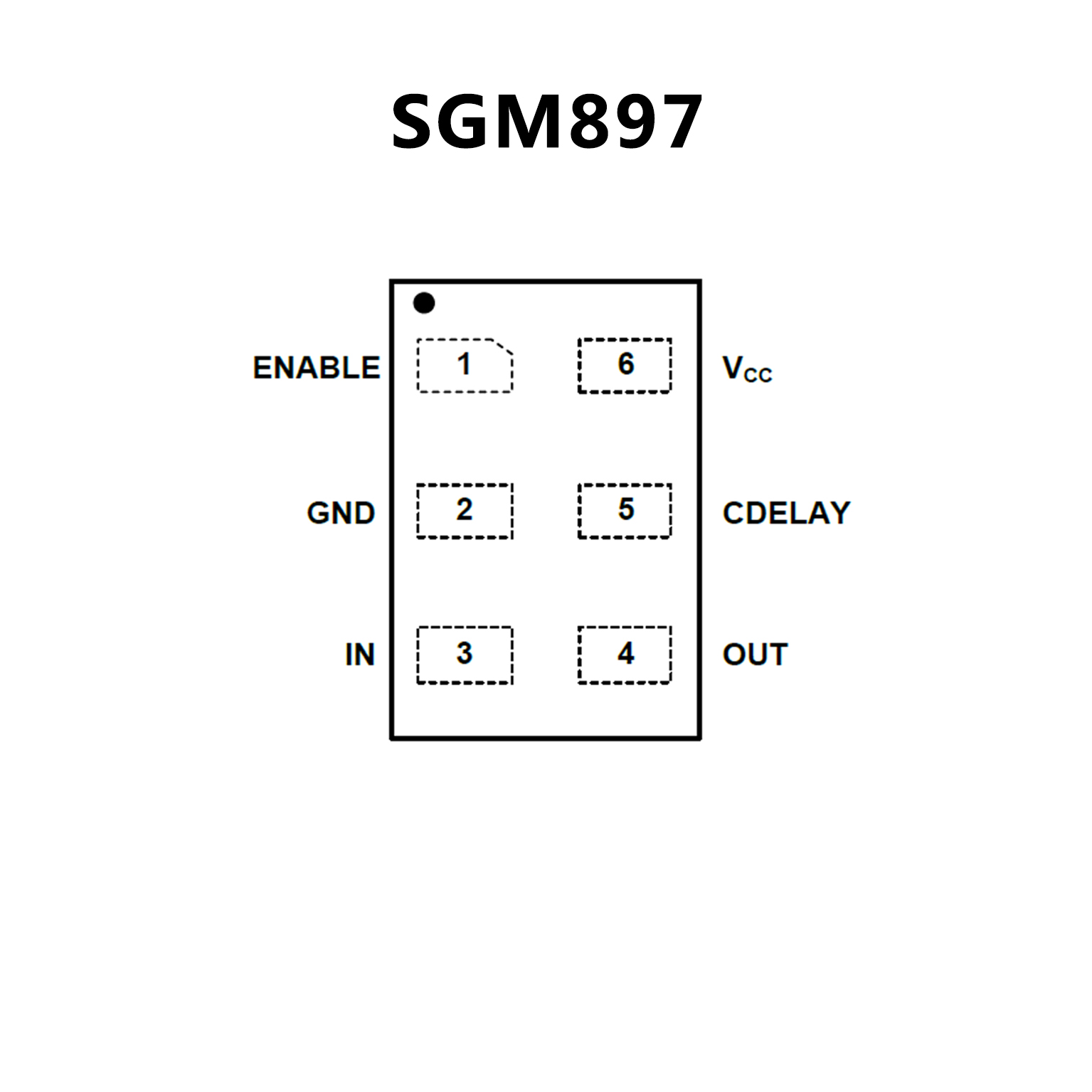

PIN CONFIGUTION
優勢替代
FEATURES
? Very Small USON (1.45 mm × 1.00 mm) Package
? Adjustable Threshold Down to 500 mV
? Threshold Accuracy: 1% Over Temperature
? Capacitor-Adjustable Delay Time
? Low Quiescent Current: 6 μA (Typical)
? External Enable Input
? Open-Drain (Rated at 18 V) and Push-Pull Output Options
? Temperature Range: –40°C to 125°C
? Pin-for-Pin Compatible With MAX6895/6/7/8

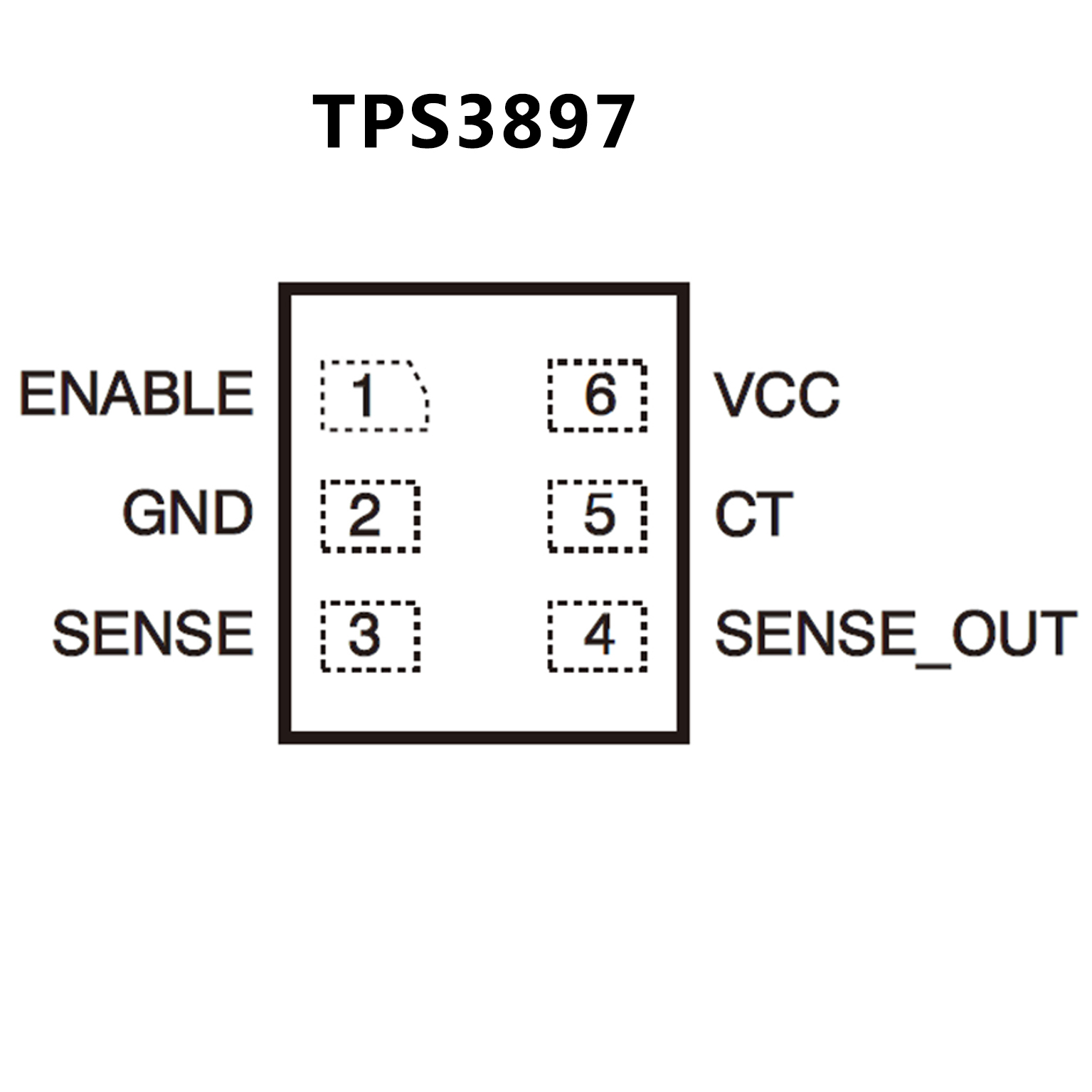

PIN CONFIGUTION
