Application-specific Operational Amplifier, SGMOP07 Replace TLV07.
SGMOP07
SGMOP07.pdf
SGMOP07.pdfFEATURES
? Rail-to-Rail Output
? Low Bias Current: ±1nA (TYP)
? High Open-Loop Gain: 120dB at VS = ±15V
? High PSRR: 146dB
? High Gain-Bandwidth Product: 3MHz
? Settling Time to 0.1% with 1V Step: 0.5μs
? Overload Recovery Time: 10μs
? Low Noise: 8.5nV/ Hz at 1kHz
? Supply Voltage Range:3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
? Low Quiescent Current: 0.9mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 Package

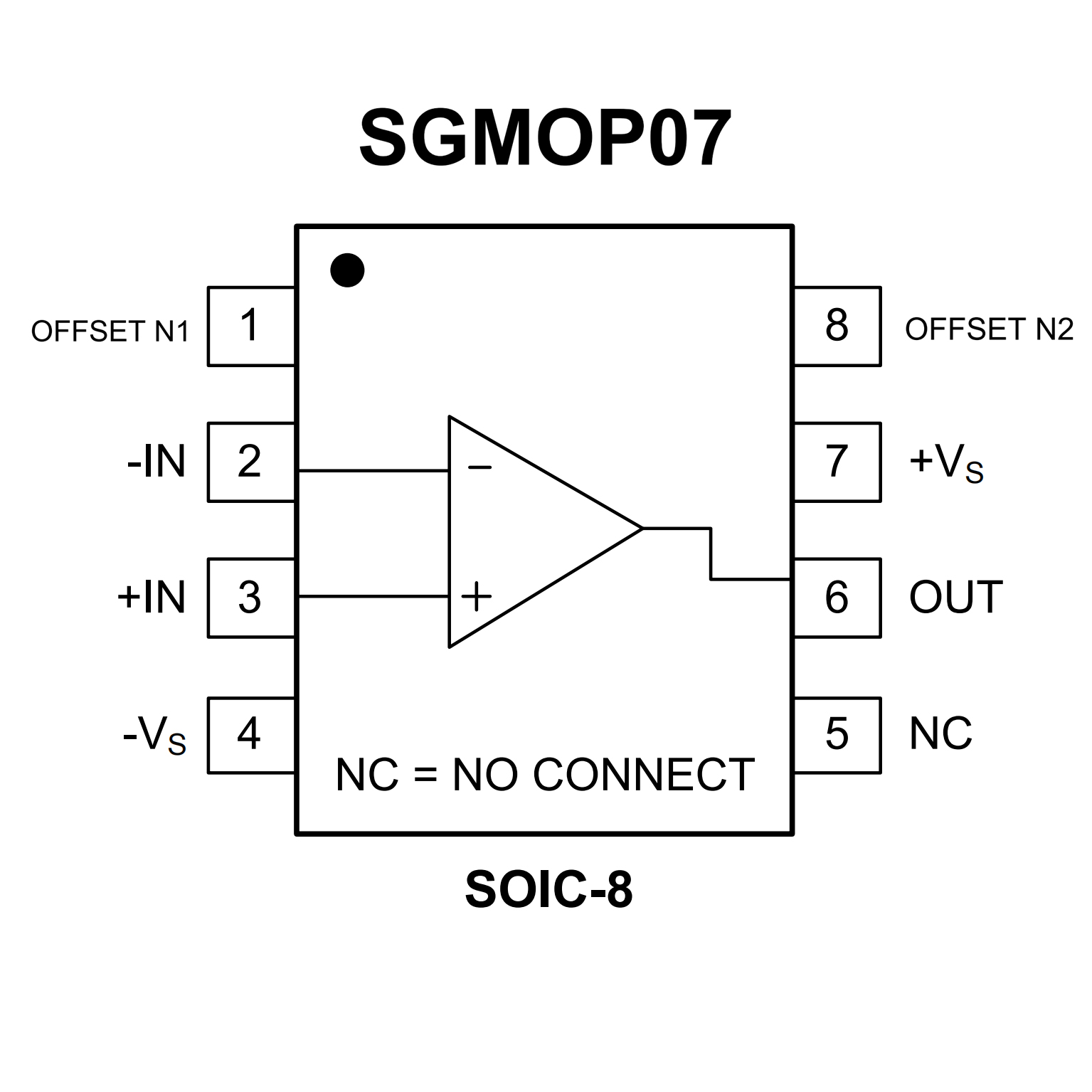

PIN CONFIGUTION
優勢替代
FEATURES
? Low Offset Voltage: 100 μV (Maximum)
? Rail-to-Rail Output
? Low Noise: 19 nV / √Hz
? Unity-Gain Stable
? RFI Filtered Inputs
? Input Range Includes Negative Supply
? Rail-to-Rail Output
? Gain Bandwidth: 1 MHz
? Low Quiescent Current: 950 μA per Amplifier
? Full Industrial Temperature Range:
–40°C to +125°C
? Offered in the Industry-Standard 8-Pin SOIC
Package

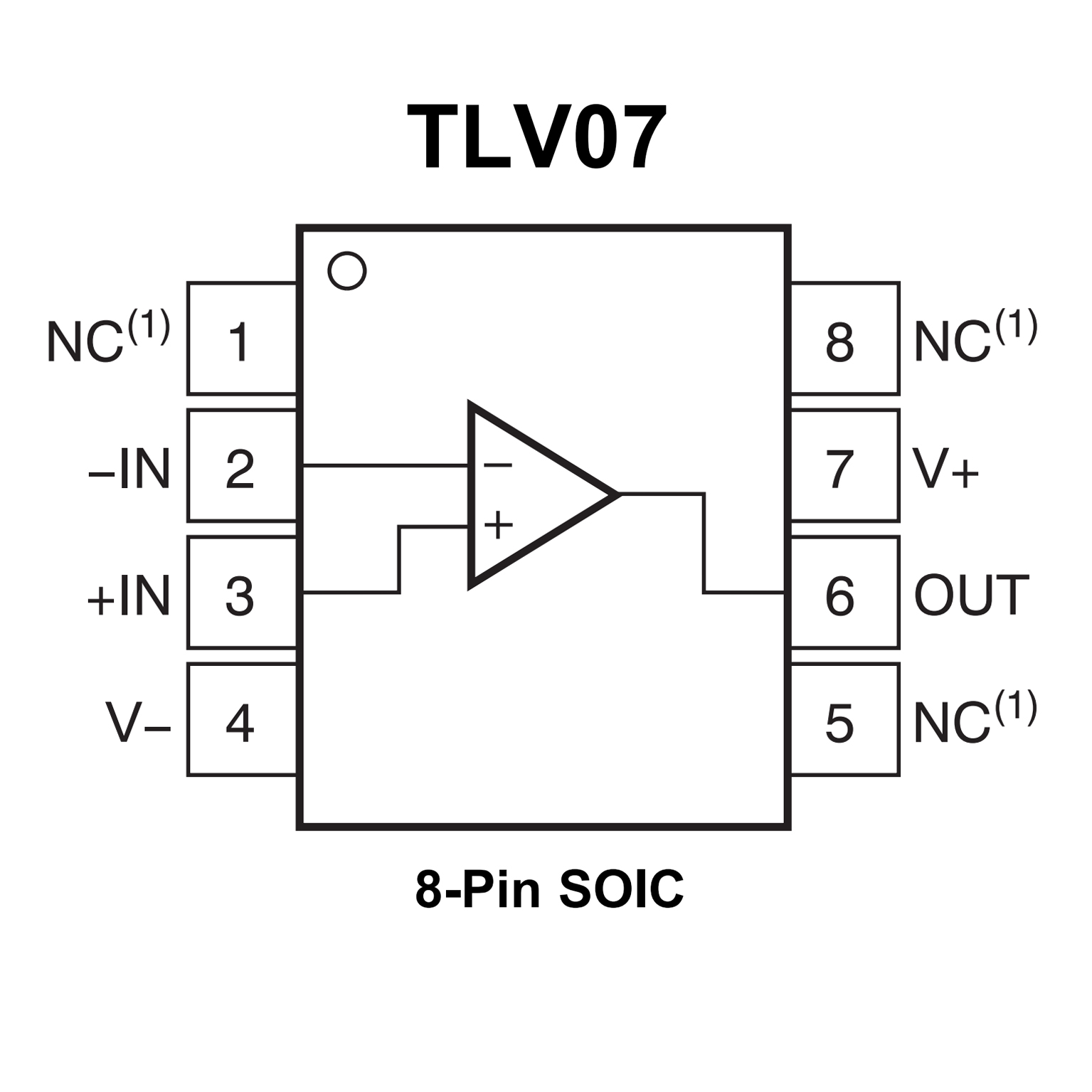

PIN CONFIGUTION
