TMI8262.pdf? 8-V to 40-V Operating Supply Voltage Range
? 1.6-A Maximum Drive Current at 24 V and
TA=25℃
? Dual H-Bridge Current Control Motor
Drive a Bipolar Stepper or Two DC Motors
Four Level Winding Current Control
? Multiple Decay Modes
Mixed Decay
Slow Decay
Fast Decay
? Industry Standard Parallel Digital Control
Interface
? Low Current Sleep Mode
? Built In 3.3-V Reference Output Small Package
and Footprint
? Protection Features
Overcurrent Protection (OCP)
Thermal Shutdown (TSD)
VM Undervoltage Lockout (UVLO)
Fault Condition Indication Pin (nFAULT)
? Small Packages

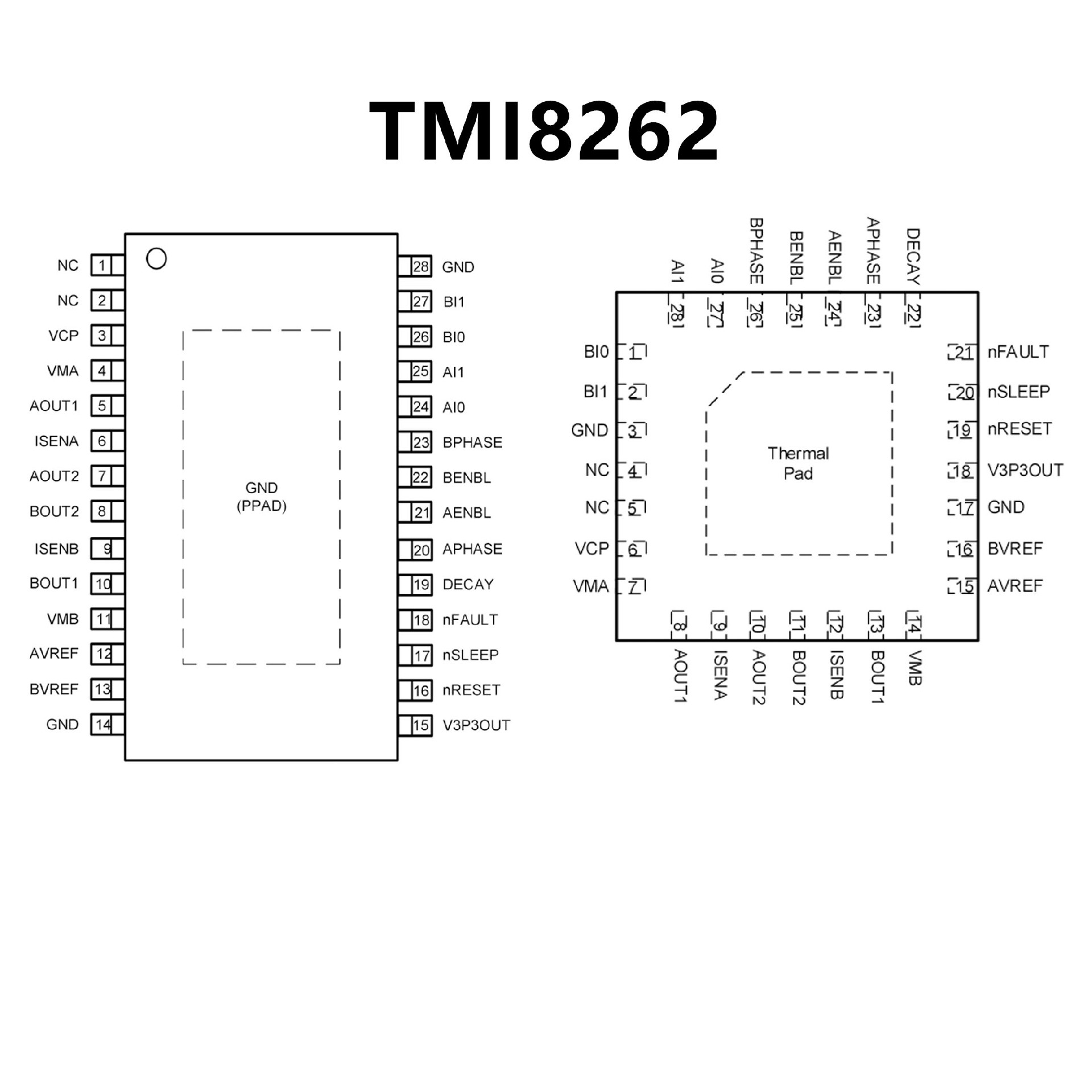

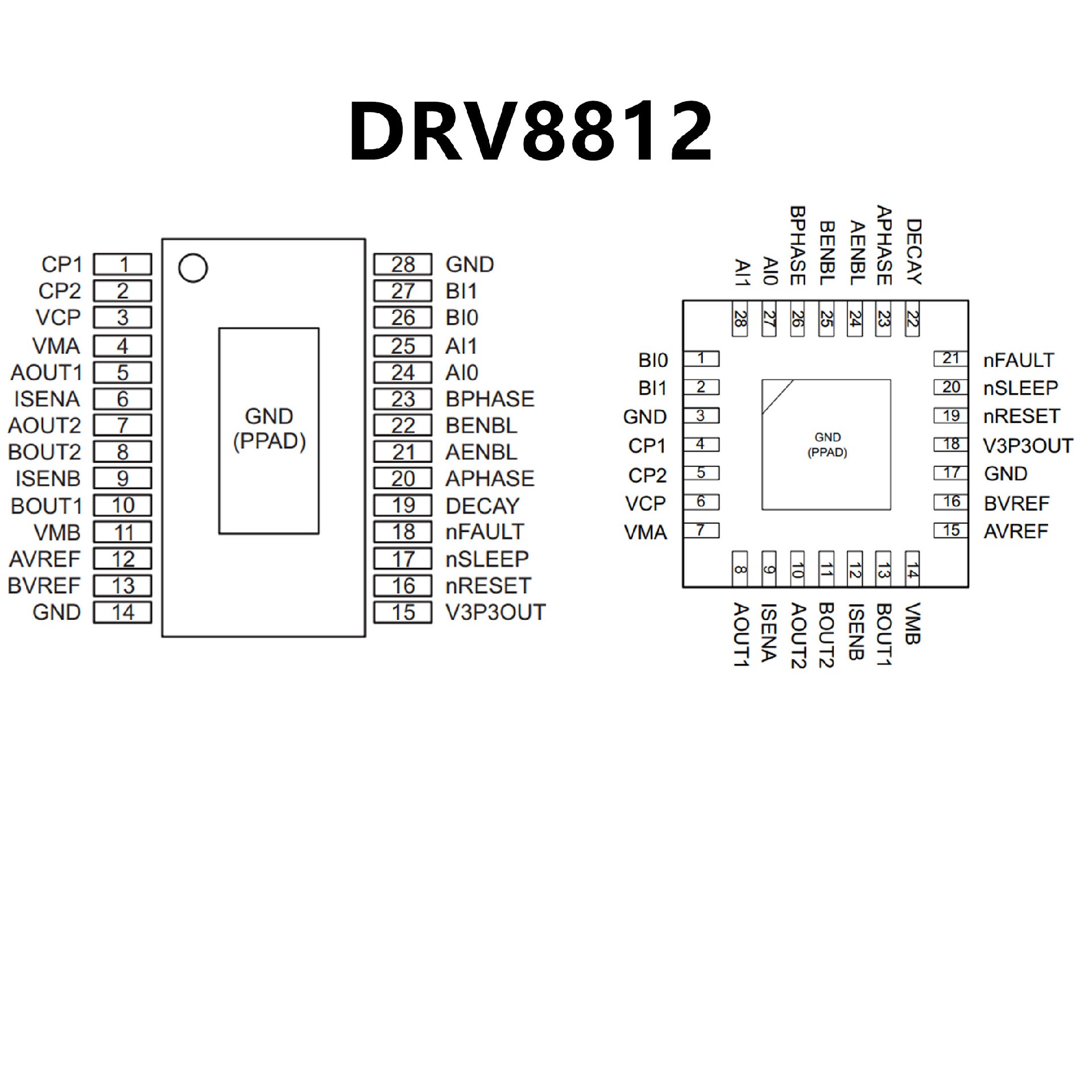

TMI8262: HTSSOP28
TMI8282Q: QFN5x5-28
? 8.2-V to 45-V Operating Supply Voltage Range
? 1.6-A Maximum Drive Current at 24 V and
TA = 25°C
? Dual H-Bridge Current Control Motor Driver
Drive a Bipolar Stepper or Two DC Motors
Four Level Winding Current Control
? Multiple Decay Modes
Mixed Decay
Slow Decay
Fast Decay
? Industry Standard Parallel Digital Control Interface
? Low Current Sleep Mode
? Built In 3.3-V Reference Output Small Package
and Footprint
? Protection Features
Overcurrent Protection (OCP)
Thermal Shutdown (TSD)
VM Undervoltage Lockout (UVLO)
Fault Condition Indication Pin (nFAULT)
