5A Low Dropout Positive Adjustable or Fixed-Mode Regulator
AP1084D18L-13
AP1084D18L-13.pdf
AP1084D18L-13.pdf
No.10521
FEATURES
? 1.4V Maximum Dropout at Full Load Current
? Built-in Thermal Shutdown
? Output Current Limiting
? Fast Transient Response
? Good Noise Rejection
? Lead-Free Package: TO252-3L
DESCRIPTION
AP1084 is a low dropout positive adjustable or fixed-mode regulator with 5.0A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. AP1084 is also well suited for other applications such as VGA cards. AP1084 is guaranteed to have lower than 1.4V dropout at full load current making it ideal to provide well-regulated outputs of 1.25 to 3.3V with 4.7 to 12V input supply.

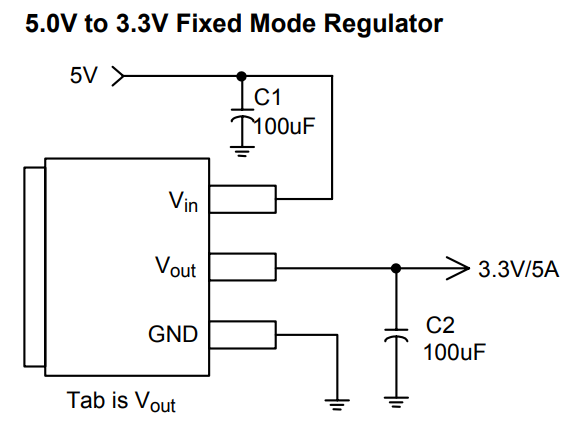

APPLICATION CIRCUIT

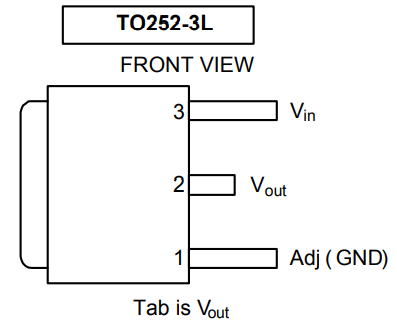

PIN CONFIGUTION
