1.0A Surface Mount Schottky Barrier Rectifier
B160-13-F
B160-13-F.pdf
B160-13-F.pdf
No.10540
FEATURES
? Guard Ring Die Construction for Transient Protection
? Ideally Suited for Automatic Assembly
? Low Power Loss, High Efficiency
? Surge Overload Rating to 30A Peak
? For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
DESCRIPTION
? 1.0A Surface Mount Schottky Barrier Rectifier

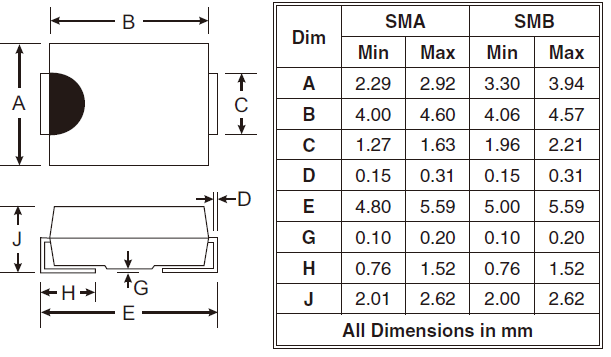

? Case: SMA/SMB
APPLICATION CIRCUIT

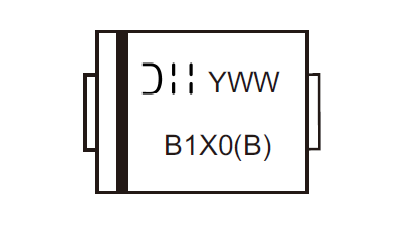

PIN CONFIGUTION
