Complementary Pair Enhancement Mode Field Effect Transisitor
DMC2004DWK-7
DMC2004DWK-7.pdf
DMC2004DWK-7.pdf
No.10547
FEATURES
? Low On-Resistance
? Low Gate Threshold Voltage VGS(th) < 1V
? Low Input Capacitance
? Fast Switching Speed
? Low Input/Output Leakage
? Complementary Pair MOSFET
? Ultra-Small Surface Mount Package
DESCRIPTION
? Complementary Pair Enhancement Mode Field Effect Transisitor
? Case: SOT-363
? Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020C
? Terminals: Solderable per MIL-STD-202, Method 208
APPLICATION CIRCUIT

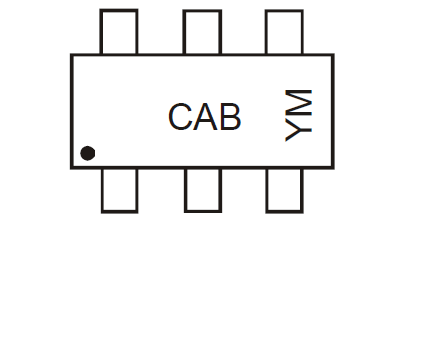

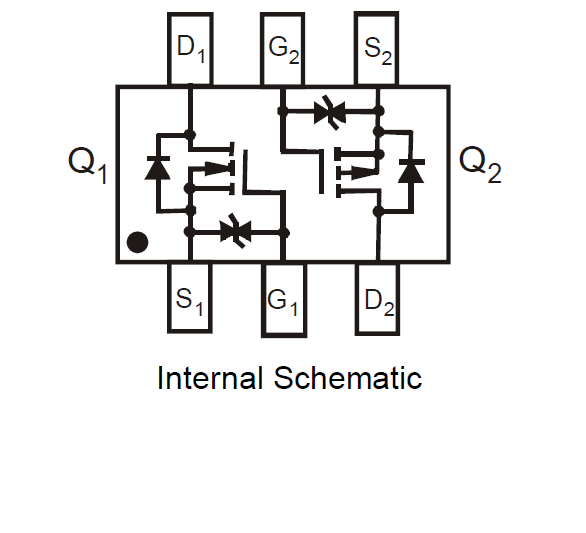

PIN CONFIGUTION
