N-Channel Enhancement Mode Field Effecr Transisitor
DMN26D0UFB4-7
DMN26D0UFB4-7.pdf
DMN26D0UFB4-7.pdf
No.10550
FEATURES
? N-Channel MOSFET
? Low On-Resistance:
3.0 Ω @ 4.5V
4.0 Ω @ 2.5V
6.0 Ω @ 1.8V
10 Ω @ 1.5V
? Very Low Gate Threshold Voltage, 1.2V max
? Low Input Capacitance
? Fast Switching Speed
? Low Input/Output Leakage
? Ultra-Small Surface Mount Package
? ESD Protected Gate
DESCRIPTION
? N-Channel Enhancement Mode Field Effecr Transisitor
? Case: DFN1006H4-3

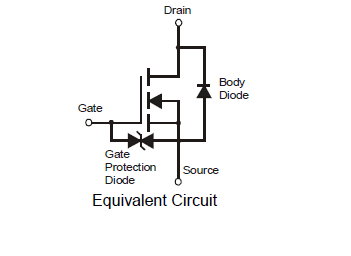

APPLICATION CIRCUIT

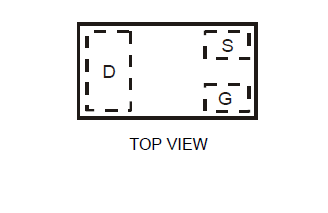

PIN CONFIGUTION
