20V P-Channel Enhancement Mode MOSFET
DMP26M7UFG-13
DMP26M7UFG-13.pdf
DMP26M7UFG-13.pdf
No.10552
FEATURES
? Low RDS(ON) – ensures on state losses are minimized
? Small form factor thermally efficient package enables higher
density end products
? Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product
DESCRIPTION
This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
APPLICATION CIRCUIT

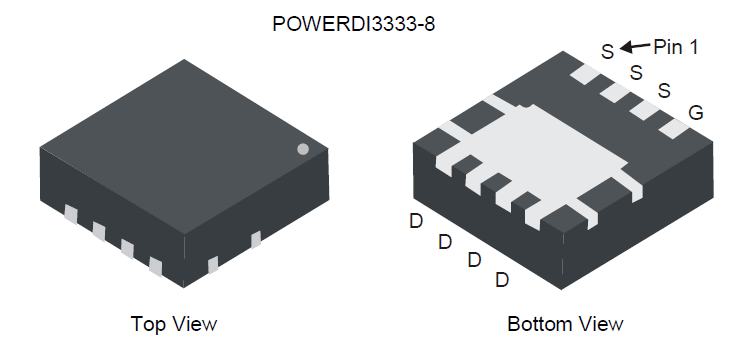

PIN CONFIGUTION
