PI5V330SQE.pdf
No.11346
? High-performance solution to switch between video sources
? Wide bandwidth: 570 MHz (typical)
? Low On-Resistance: 5Ω (typical)
? Low crosstalk at 10 MHz: –80dB
? Ultra-low quiescent power (0.1μA typical)
? Single supply operation: +5.0V
? Fast switching: 10ns
? ESD > 5KV HBM, 10KV I/O to GND
? Packaging (Pb-free & Green Available):

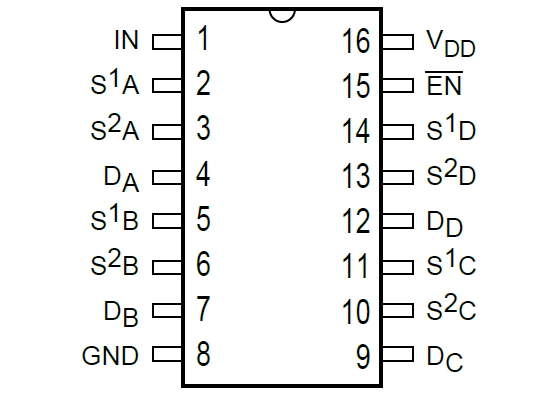

– 16-pin 150-mil wide plastic SOIC (W)
– 16-pin 150-mil wide plastic QSOP (Q)
Pericom Semiconductor’s PI5V330S is a true bidirectional Quad 2-channel multiplexer/demultiplexer recommended for both RGB and composite video switching applications. The video switch can be driven from a current output RAMDAC or voltage output composite video source.
Low On-Resistance and wide bandwidth make it ideal for video and other applications. Also this device has exceptionally high current capability which is far greater than most analog switches offered today. A single 5V supply is all that is required for operation. The PI5V330S offers a high-performance, low-cost solution to switch between video sources. The application section describes the PI5V330S replacing the HC4053 multiplier and buffer/amplifier.
