3.0A Surface Mount Glass Passivated Rectifier
S3D-13-F
S3D-13-F.pdf
S3D-13-F.pdf
No.11084
FEATURES
? Glass Passivated Die Construction
? Low Forward Voltage Drop and High Current Capability
? Surge Overload Rating to 100A Peak
? Ideally Suited for Automated Assembly
? Qualified to AEC-Q101 Standards for High Reliability.
DESCRIPTION

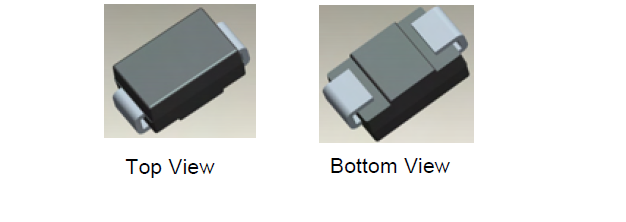

? Case: SMB/SMC
? Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Polarity: Cathode Band or Cathode Notch
? Weight: SMB 0.093 grams (approximate)
SMC 0.21 grams (approximate)
APPLICATION CIRCUIT

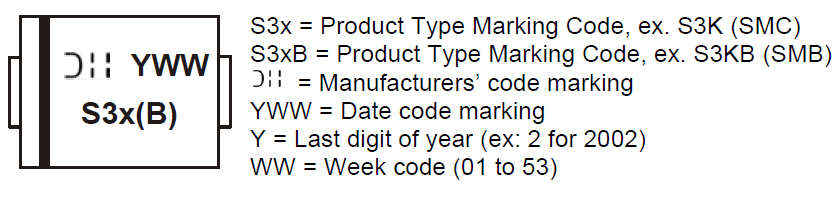

PIN CONFIGUTION
