600W, 5V - 170V Surface Mount Transient Voltage Suppressor
SMBJ36CAHM4G
SMBJ36CAHM4G.pdf
SMBJ36CAHM4G.pdf
No.11068
FEATURES
● Low profile package
● Ideal for automated placement
● Glass passivated junction
● Built-in strain relief
● Excellent clamping capability
● Fast response time: Typically less than 1.0ps
● Typical IR less than 1μA above 10V
● Compliant to RoHS Directive 2011/65/EU and in accordance
to WEEE 2002/96/EC
● Halogen-free according to IEC 61249-2-21
DESCRIPTION

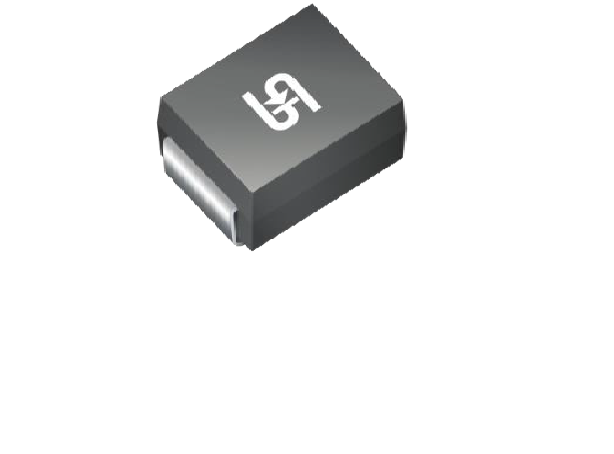

● Case: DO-214AA (SMB)
● Molding compound meets UL 94V-0 flammability rating
● Packing code with suffix "G" means green compound (halogen-free)
● Part no. with suffix “H” means AEC-Q101 qualified
● Terminal: Matte tin plated leads, solderable per J-STD-002
● Meet JESD 201 class 2 whisker test
● Polarity: As marked
● Weight: 0.09 g (approximately)
APPLICATION CIRCUIT

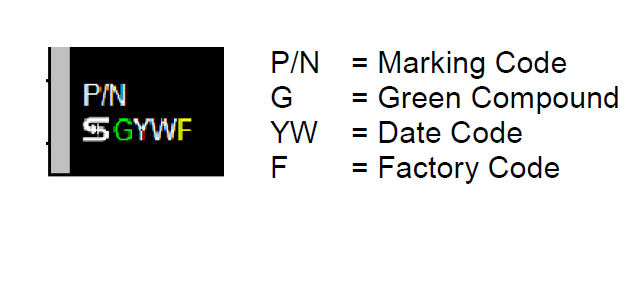

PIN CONFIGUTION
