N-Channel Enhancement Mode MOSFET
2N7002K-7
2N7002K-7.pdf
2N7002K-7.pdf
No.10518
FEATURES
? Case: SOT-23
? Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Finish ? Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
? Terminal Connections: See Diagram
? Weight: 0.008 grams (approximate)
DESCRIPTION
? Low On-Resistance
? Low Input Capacitance
? Fast Switching Speed
? Low Input/Output Leakage

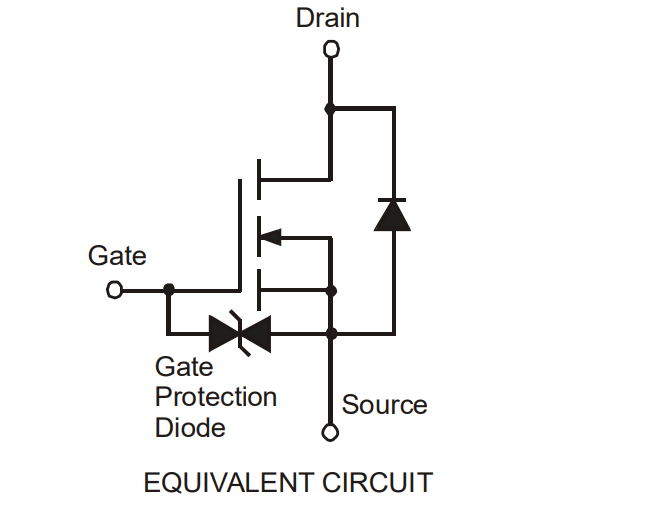

APPLICATION CIRCUIT

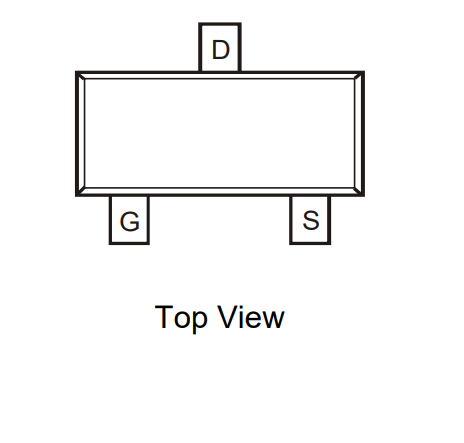

PIN CONFIGUTION
