Surface Mount Unidirectional Transient Voltage Suppressors
LT2M5.0A
LT2M5.0A.pdf
LT2M5.0A.pdf
No.11085
FEATURES
● For surface mounted applications
● Reliable low cost construction utilizing molded plastic technique
● Plastic material has UL flammability classification 94V-O
● Typical IR less than 1uA above 10V
● Fast response time: typically less than 1.0ns
● IEC6100-4-2, Level 4(ESD), >15KV(air); >8KV(Contact)
● RoHS compliant
DESCRIPTION
● Case Material: "Green" molding compound, UL flammability
classification 94V-0, (No Br. Sb. Cl.)
● Polarity : Cathode designated by TAB1
● Weight : 15.5 mg

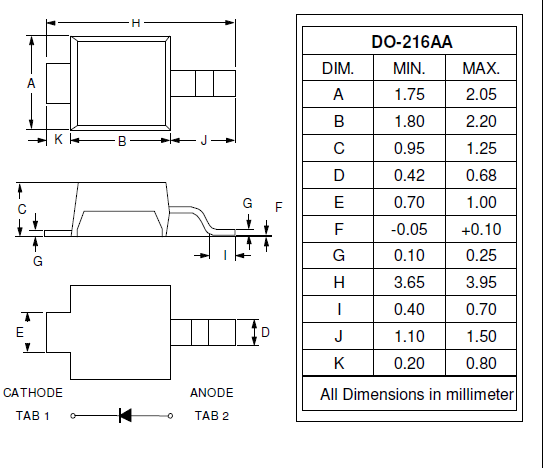

APPLICATION CIRCUIT
PIN CONFIGUTION
