ACP2827B.pdf
No.13176
? VIN : 2.3V to 5.5V
? Output Voltage (VOUT) : 0.6V to 3.6V
? 1A Continuous Output Current
? 0.6V ± 2% Reference Voltage
? 15μA Low Quiescent Current
? 2.2MHz Switching Frequency (VIN = 5V, VOUT= 1.8V)
? Up to 89% Efficiency at 5mA Light Load
? Programmable PFM/PWM Mode Through EN Pin
? Power Good Indicator(ACP2827B)
? Under Voltage Lockout (UVLO)
? VIN Over Voltage Protection (OVP)
? Peak Current Limit
? Valley Current Limit
? Thermal Shutdown

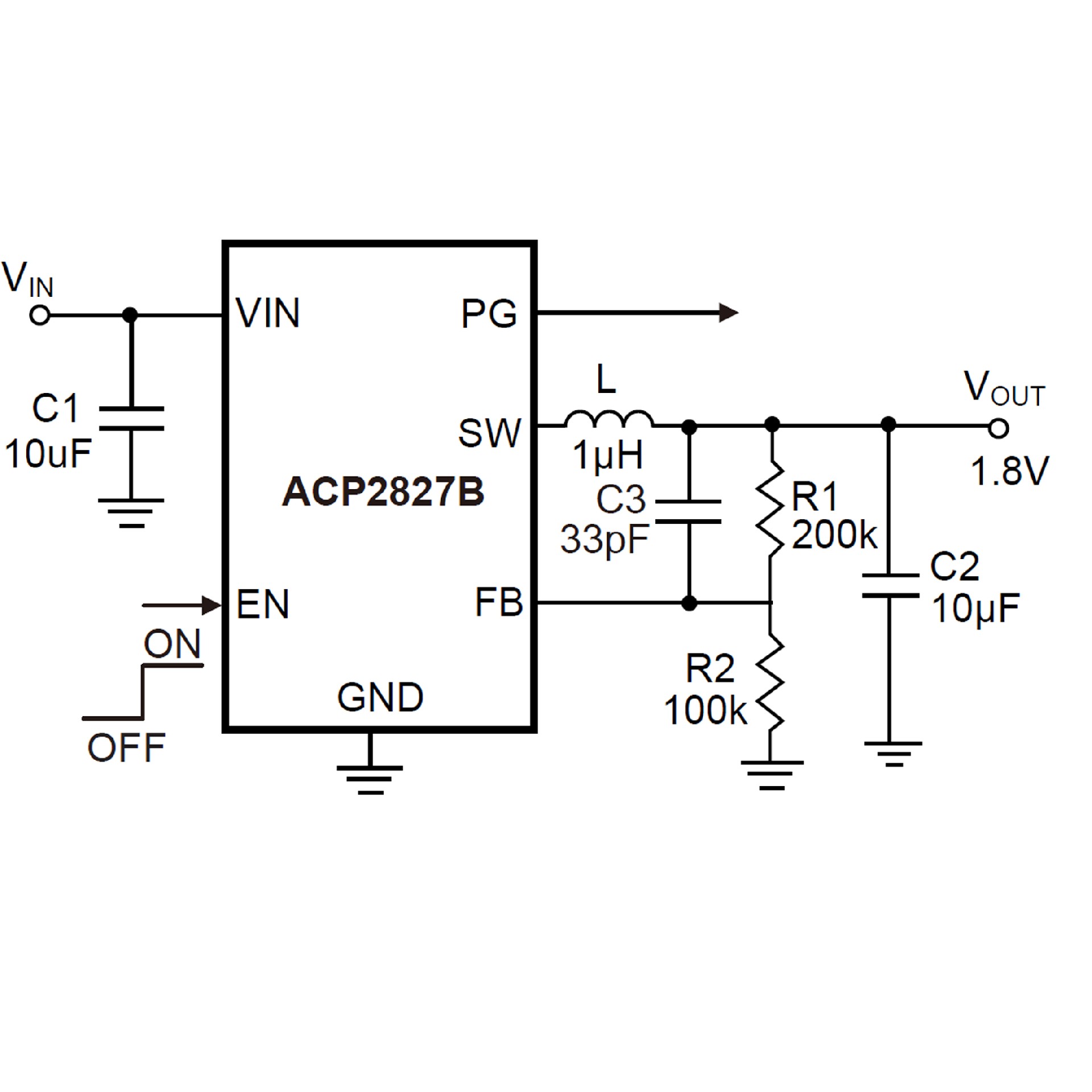

The ACP2827 and ACP2827B is a 1A, synchronous buck
converter with a wide input voltage range of 2.3V to 5.5V.
The device fully integrates a 110mΩ high-side power
MOSFET and an 80mΩ low-side power MOSFET to
provide high-efficiency step-down DC-DC conversion.
The ACP2827 and ACP2827B device is easily used by
minimizing the external component count due to its
adoption of Constant On-Time (COT) control to achieve
fast transient response, easy loop stabilization, and low
output voltage ripple.

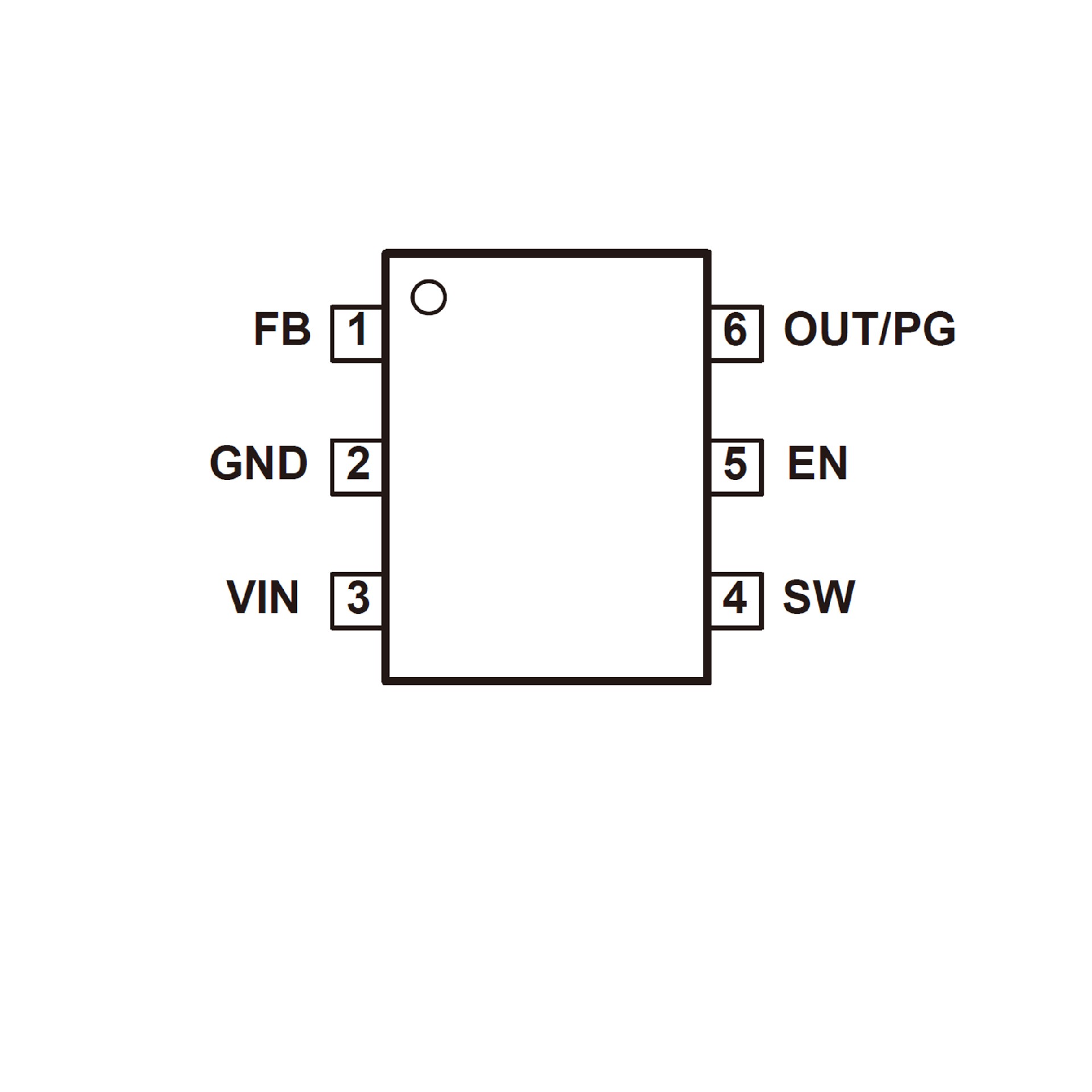

The device is available in a SOT563 package.
