12-Input, 9-Output Video Switch Matrix with Output Drivers, Input Clamp, and Bias Circuitry
SGM6501 SGM6501.pdf

No.11080

FEATURES

? 12 × 9 Crosspoint Switch Matrix

? One - to - One or One - to - Many Outputs switching

? I2C - Compatible Digital Interface, Standard Mode

? Supports SD, PS, and HD Video

? Input Clamp, Bias Circuitry

? Dual-Load (75Ω) Output Drivers with High-Impedance Disable

? Programmable Gain: 6dB, 7dB, 8dB, or 9dB

? AC- or DC-Coupled Inputs

? AC- or DC-Coupled Outputs

? Single Supply: 3.1V to 5.5V

? Green SSOP28 and TSSOP28 Packages

DESCRIPTION

The SGM6501 switch matrix provides flexible options for today’s video applications. The 12 inputs that can be routed to any of 9 outputs. Each input can be routed to one or more outputs, but only one input can be routed to any one output. The input to output routing is controlled via an I2C - compatible digital interface. Each input supports an integrated clamp option to set the output sync tip level of video with sync to ~600mV. Alternatively, the input may be internally biased to center signals without sync (Chroma, Pb, Pr) at ~1.3V. These DC output levels are for the 6dB gain setting. Higher gain settings increase the DC output levels accordingly. The input clamp/bias mode is selected via I2C. Unused outputs may be powered down to reduce power dissipation.

The SGM6501 is available in Green SSOP28 and TSSOP28 packages. It operates over an ambient temperature range of -40°C to +85°C.

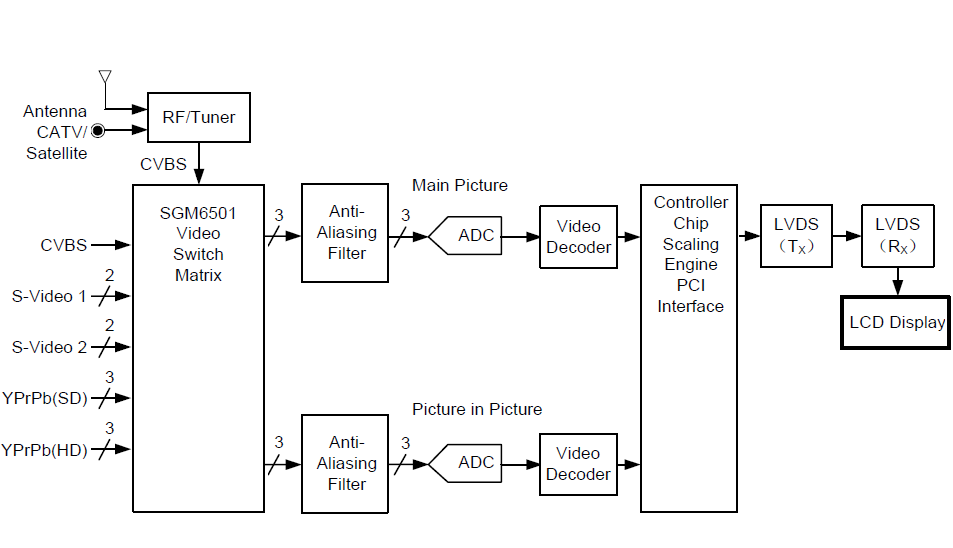

APPLICATION CIRCUIT

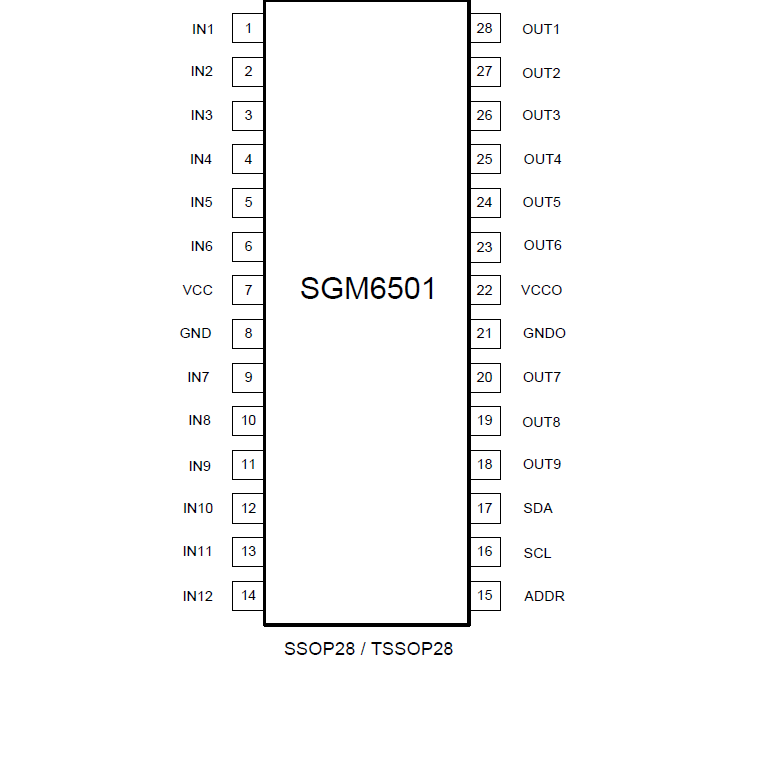

PIN CONFIGUTION
