Surface Mount PAR? Transient Voltage Suppressors
SM8S36A
SM8S36A.pdf
SM8S36A.pdf
No.11082
FEATURES
? Junction passivation optimized design passivated anisotropic
rectifier technology
? TJ = 175 °C capability suitable for high reliability and
automotive requirement
? Available in uni-directional polarity only
? Low leakage current
? Low forward voltage drop
? High surge capability
? Meets ISO7637-2 surge specification (varied by test condition)
? Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
? AEC-Q101 qualified
DESCRIPTION
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
APPLICATION CIRCUIT

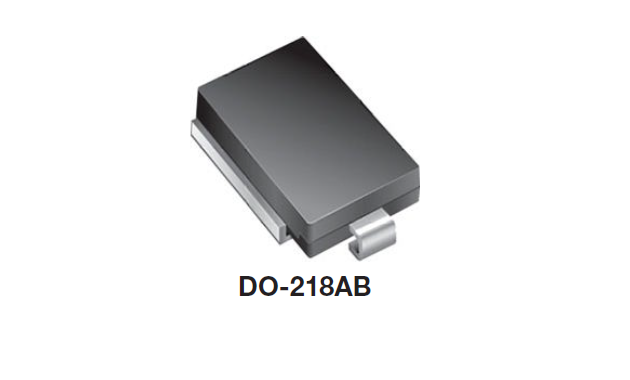

PIN CONFIGUTION
