3.0A Surface Mount Schottky Barrier Rectifier.
B360BQ-13-F
B360BQ-13-F.pdf
B360BQ-13-F.pdf
No.13531
FEATURES
? Guard Ring Die Construction for Transient Protection
? Ideally Suited for Automated Assembly
? Low Power Loss, High Efficiency
? Surge Overload Rating to 125A Peak
? For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
DESCRIPTION
This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications. It is ideally suited for use as:
? Polarity protection diodes
? Re-circulating diodes
? Switching diodes

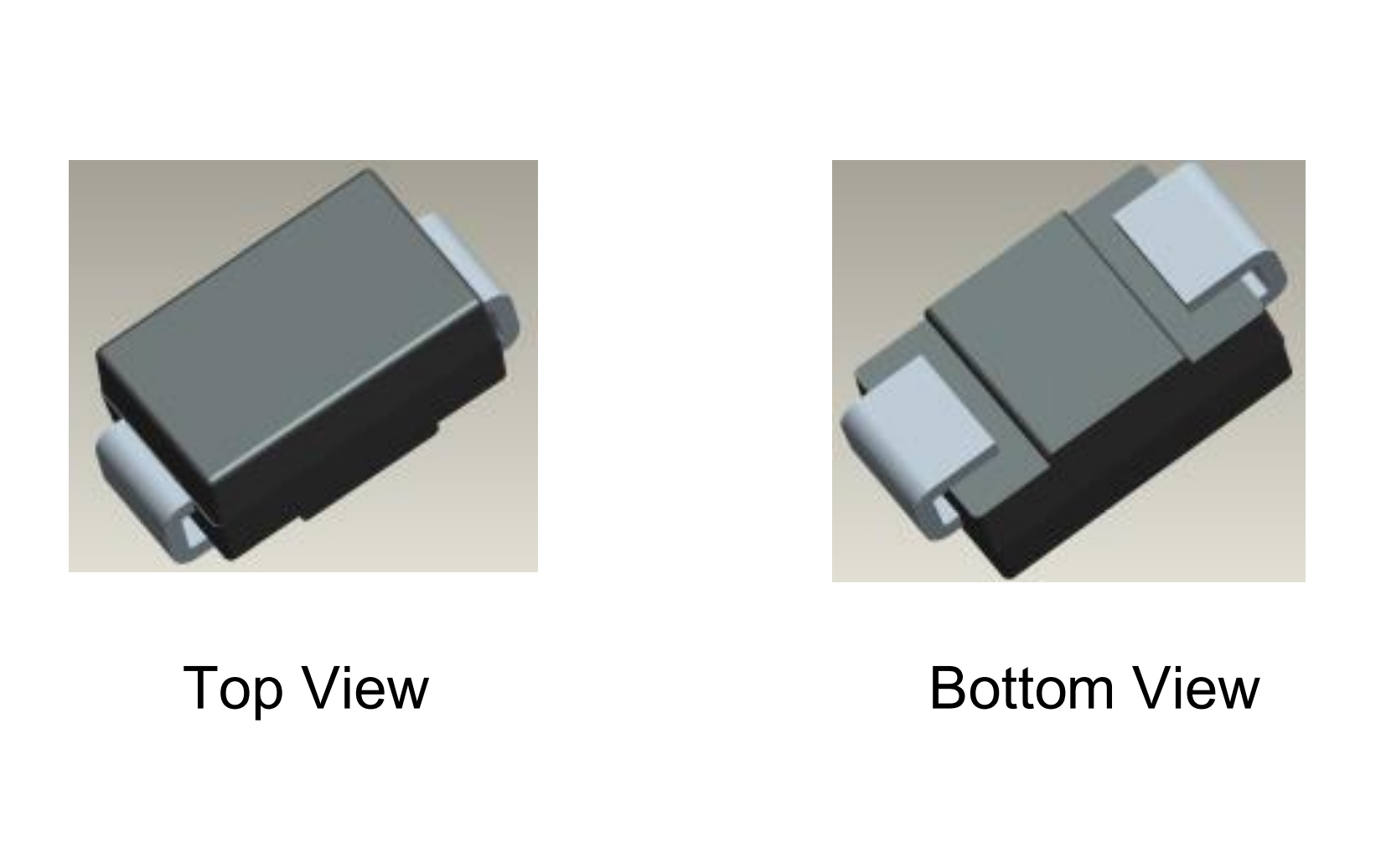

Mechanical Data :
? Package: SMB
? Package Material: Molded Plastic. "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
? Polarity: Cathode Band
? Weight: 0.093 grams (Approximate)

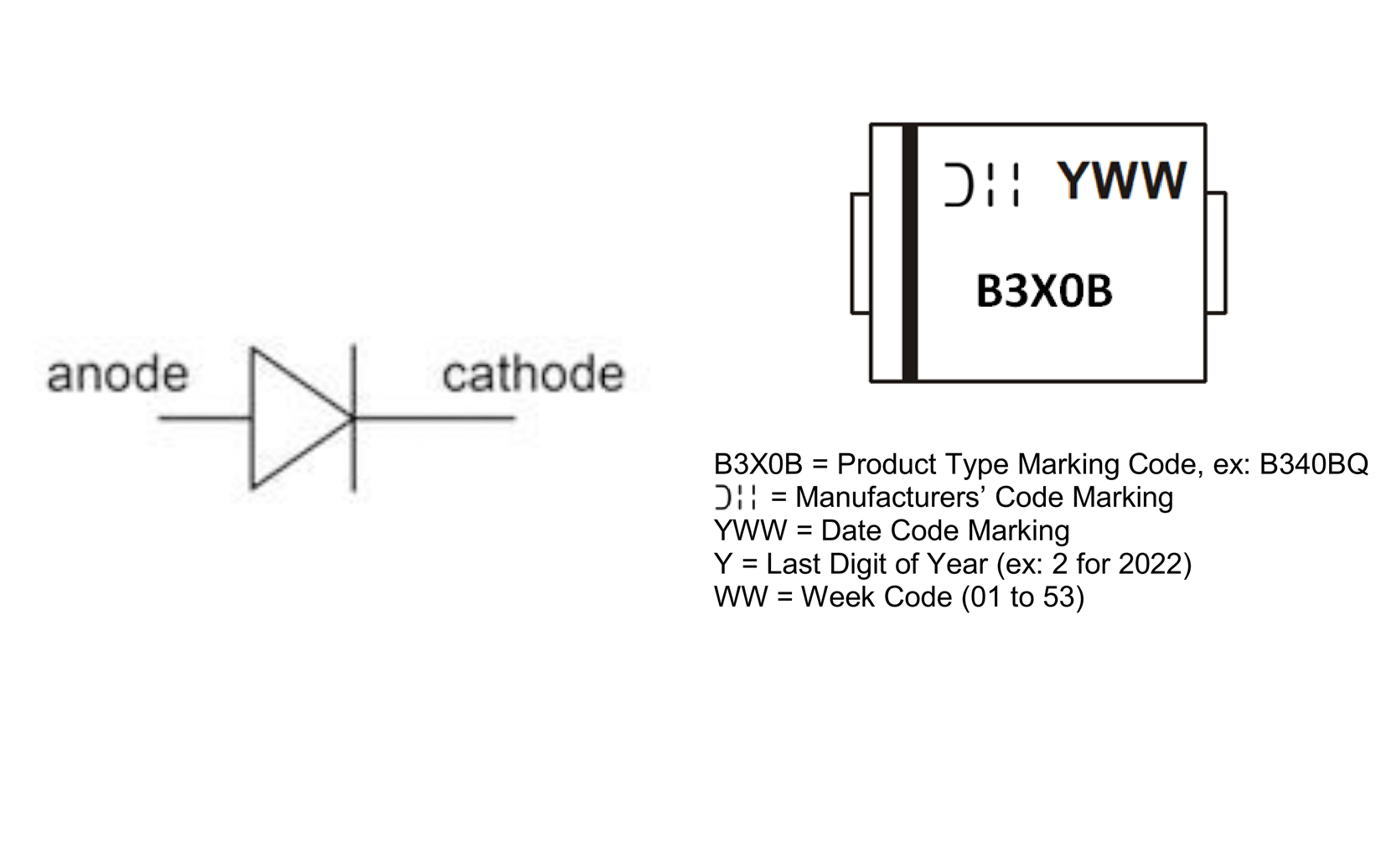

APPLICATION CIRCUIT
PIN CONFIGUTION
