N-Channel enhancement Mode MOSFET.
DMG1012TQ-7
DMG1012TQ-7.pdf
DMG1012TQ-7.pdf
No.13534
FEATURES
? Low On-Resistance
? Low Gate Threshold Voltage
? Low Input Capacitance
? Fast Switching Speed
? Low Input/Output Leakage
? ESD Protected up to 2kV
DESCRIPTION
Mechanical Data:
? Package: SOT523
? Package Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Finish—Matte Tin Annealed over Alloy 42 Lead
Frame. Solderable per MIL-STD-202, Method 208
? Terminal Connections: See Diagram
? Weight: 0.002 grams (Approximate)

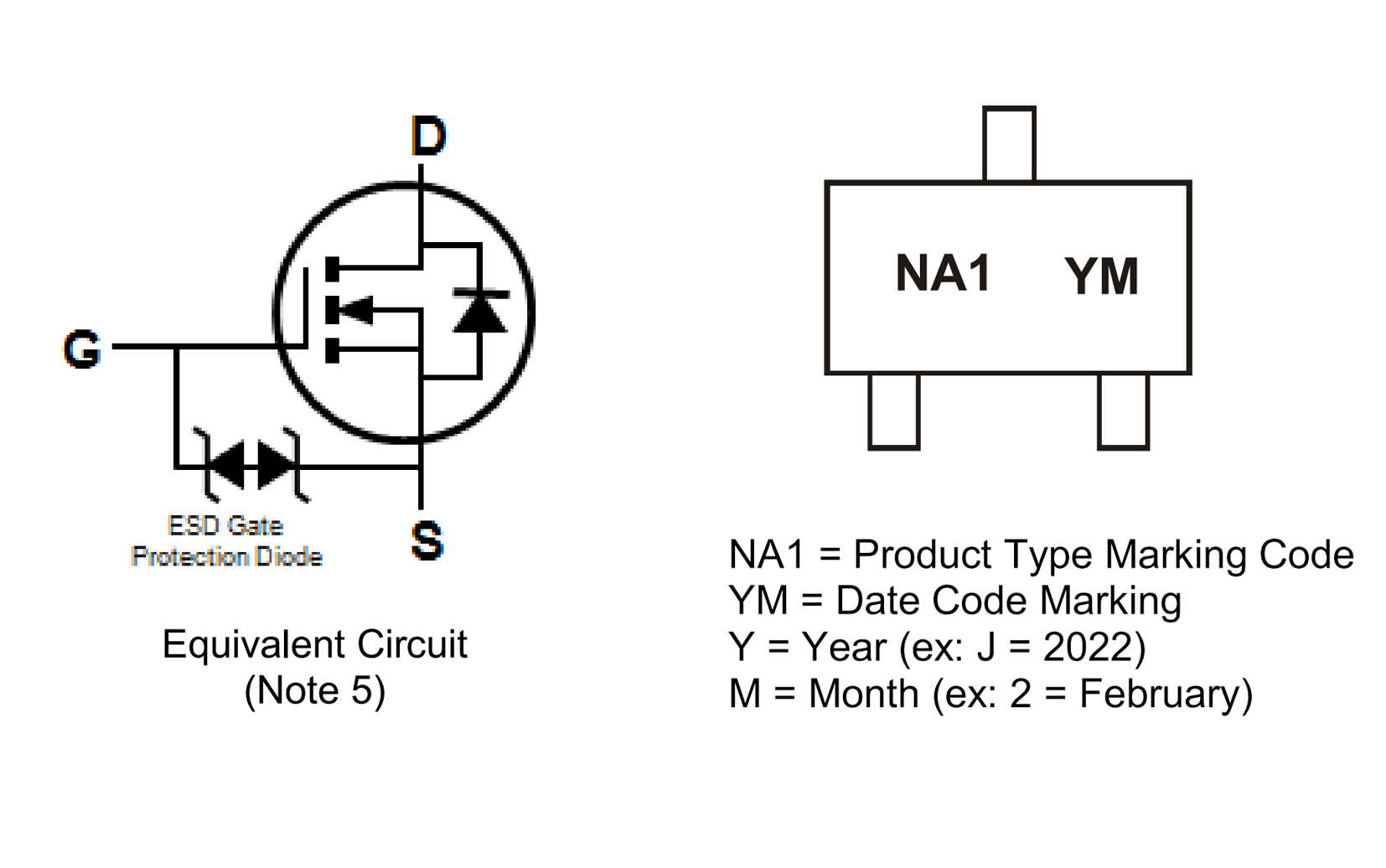

APPLICATION CIRCUIT

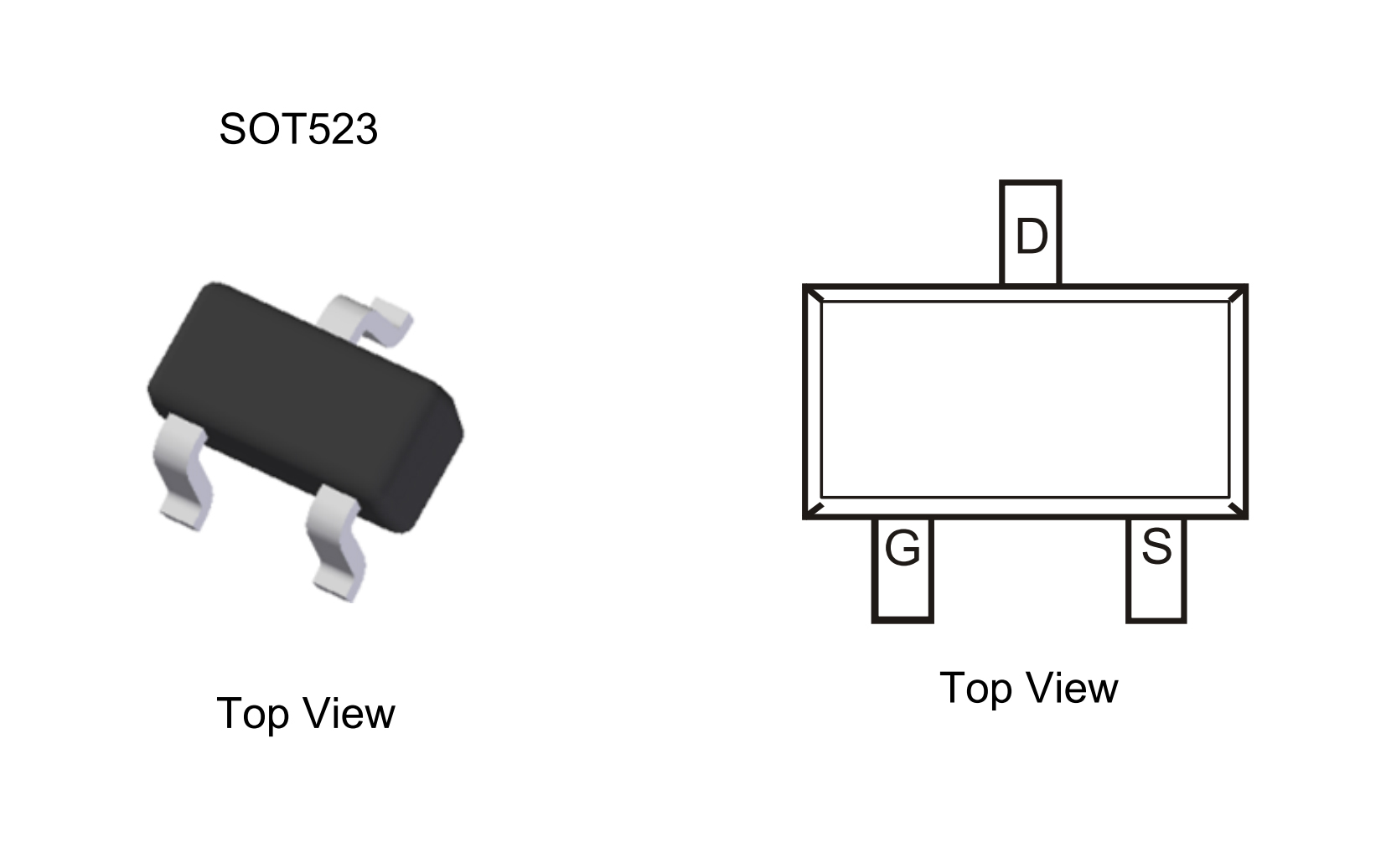

PIN CONFIGUTION
