400W Surface Mount Transient Voltage Suppressor.
SMAJ8.5CA-13-F
SMAJ8.5CA-13-F.pdf
SMAJ8.5CA-13-F.pdf
No.13532
FEATURES
? 400W Peak Pulse Power Dissipation
? Glass Passivated Die Construction
? Unidirectional and Bidirectional Versions Available
? Excellent Clamping Capability
? Fast Response Time
DESCRIPTION
Mechanical Data:

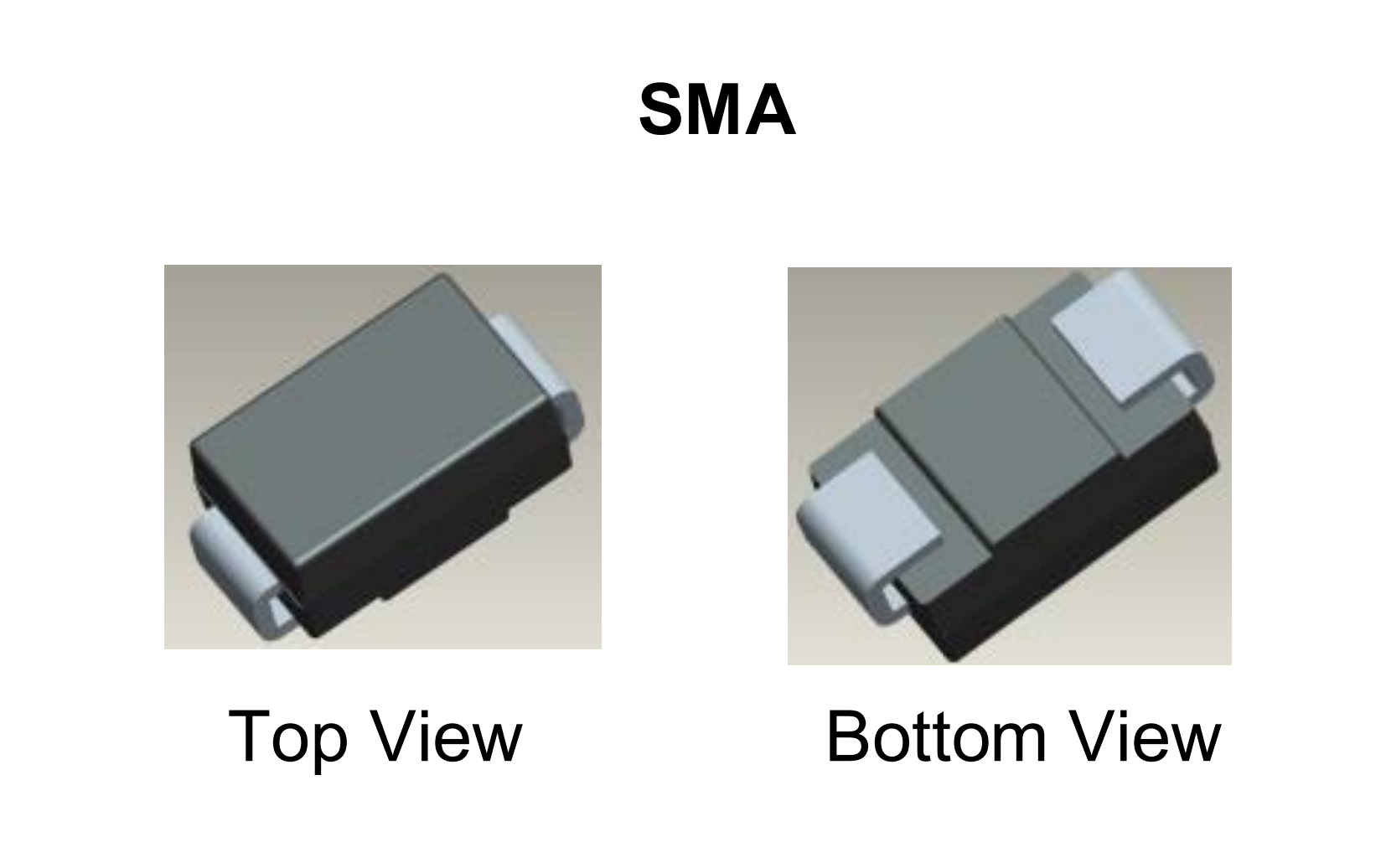

? Case: SMA
? Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Lead-Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
? Polarity Indicator: Cathode Band (Bidirectional Devices do not
Have a Polarity Indicator)
? Weight: 0.064 grams (Approximate)
APPLICATION CIRCUIT

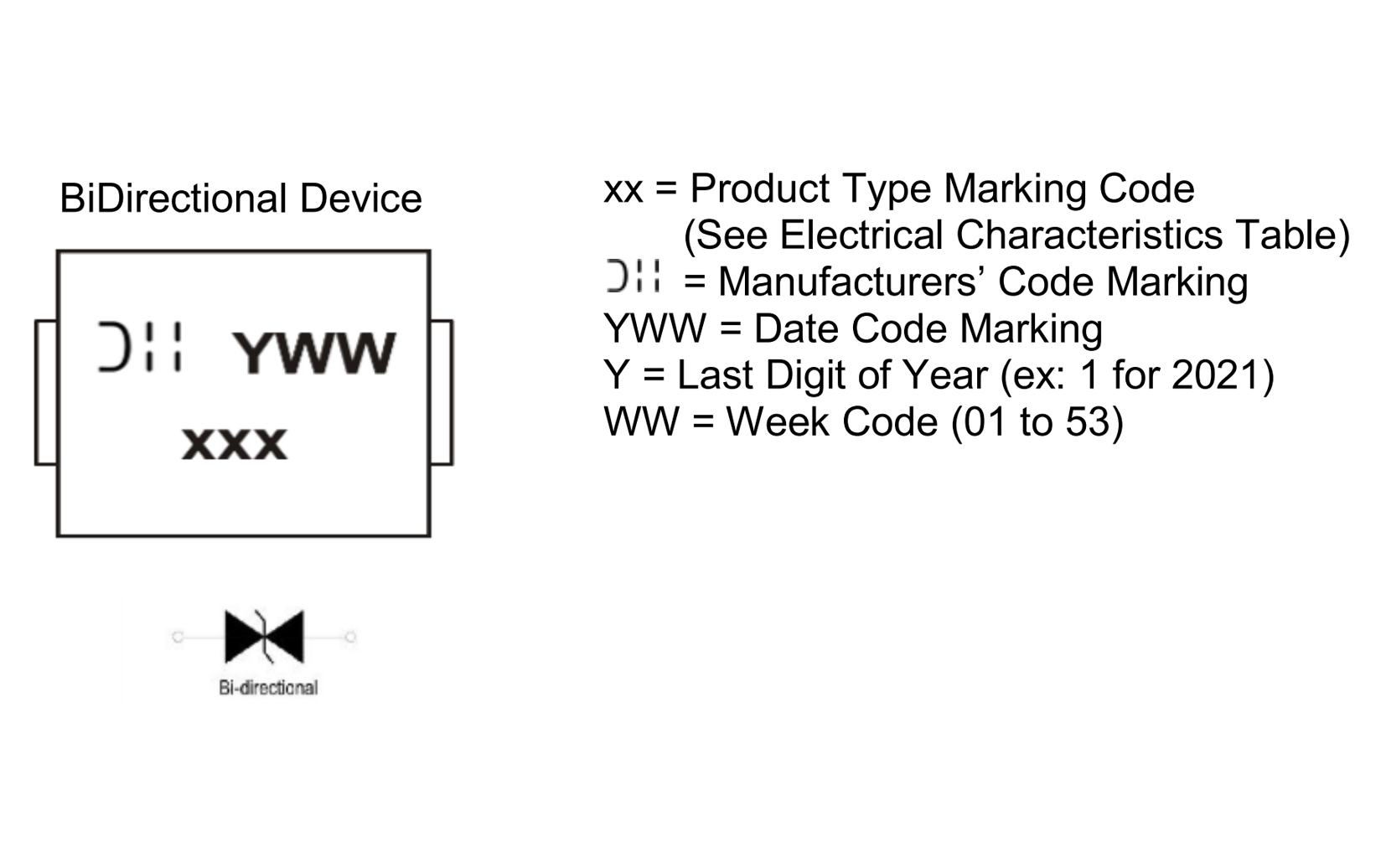

PIN CONFIGUTION
