Quad 2-Input AND Gate.
74AHC08Q
74AHC08Q.pdf
74AHC08Q.pdf
No.14074
FEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Supply Voltage Range: 2.0V to 5.5V
? Over-Voltage Tolerant Inputs up to 5.5V
? CMOS Low Power Dissipation
? Balanced Propagation Delays
? All Inputs with Schmitt-Trigger Action
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-14 Package
DESCRIPTION
The 74AHC08Q is a quad 2-input AND gate with high-speed CMOS inputs. It has a wide supply voltage range from 2.0V to 5.5V. The over-voltage tolerant inputs are up to 5.5V. Due to this feature, the device can be used as a translator in mixed voltage
environment.
This device is AEC-Q100 qualified (Automotive Electronics Council Standard Q100 Grade 1) and the use of this device is suitable for automotive applications.

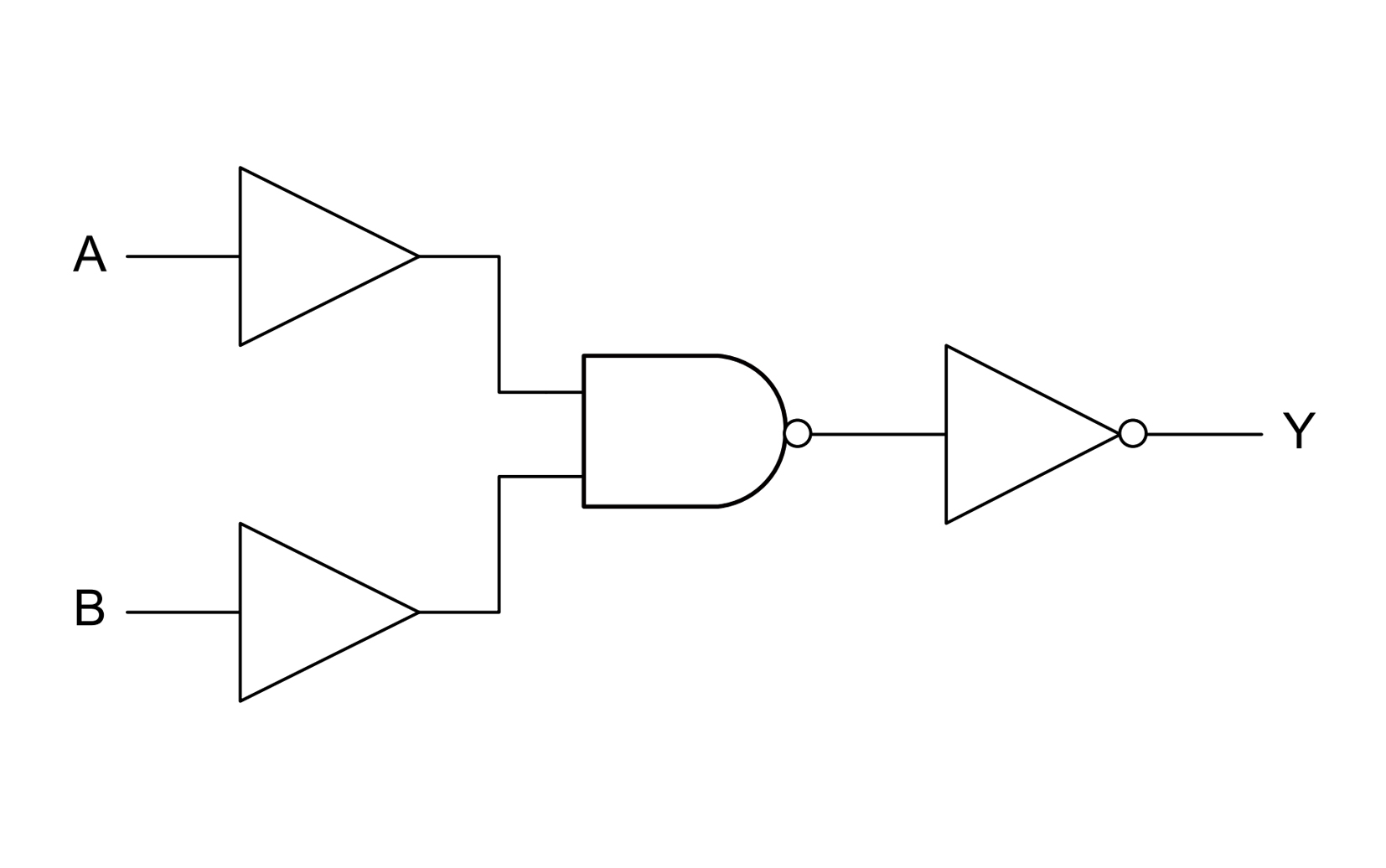

APPLICATION CIRCUIT
PIN CONFIGUTION
