SGM2013.pdf
No.10974
● Low Output Noise
● Low Dropout Voltage
● Maximum Output Current: 300mA
● Thermal-Overload Protection
● Output Current Limit
● Available Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V,
2.8V, 3.0V and 3.3V

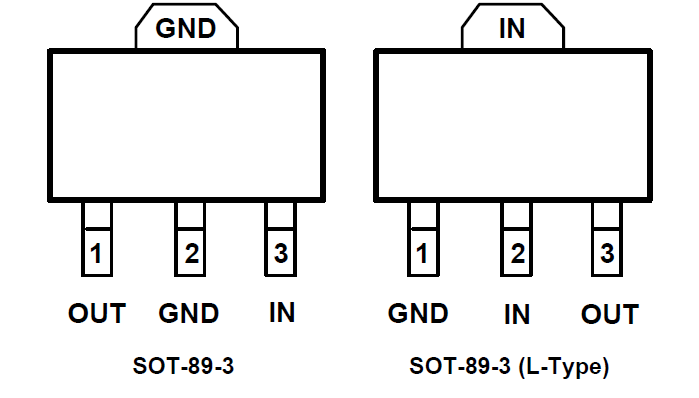

● Available in Green SOT-89-3 Package
The SGM2013 series low-power, low-noise, low-dropout, CMOS linear voltage regulators operate from a 2.5V to 5.5V input voltage. They are the perfect choice for low voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The SGM2013 series also offer low dropout voltage to prolong battery life in portable electronics.
The SGM2013 features include output current limit and thermal shutdown protection. SGM2013 operates over an ambient temperature range of -40℃ to +125℃. It comes in Green SOT-89-3 package.
