SGM2043.pdf
No.10962
? Low Dropout Voltage
? Thermal-Overload Protection
? Output Current Limit
? Quick Auto-Discharge in Shutdown Status
? High PSRR (72dB at 1kHz)
? 10nA Logic-Controlled Shutdown
? Fixed Output Voltages: 2.8V and 3.3V
? -40℃ to +85℃ Operating Temperature Range

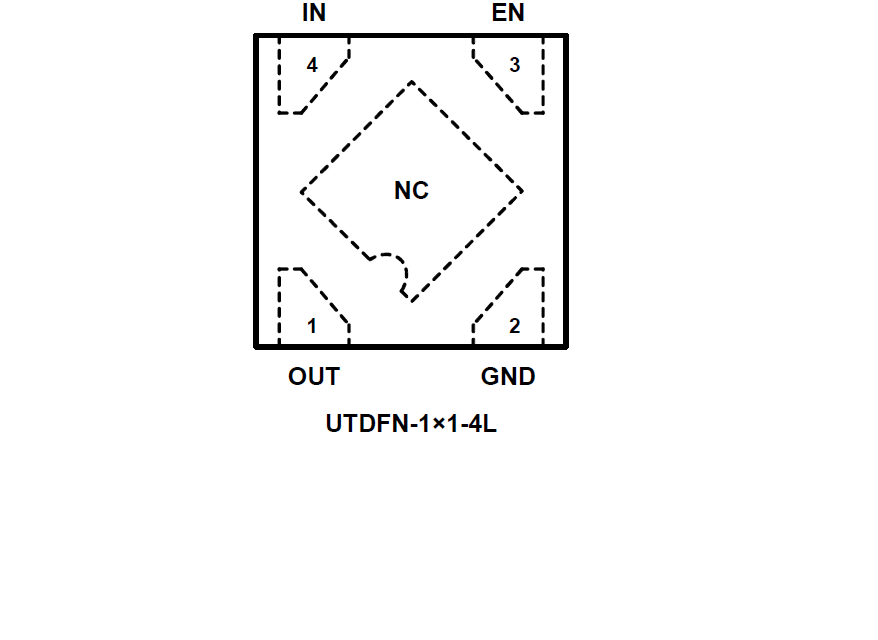

? Available in Green UTDFN-1×1-4L Package

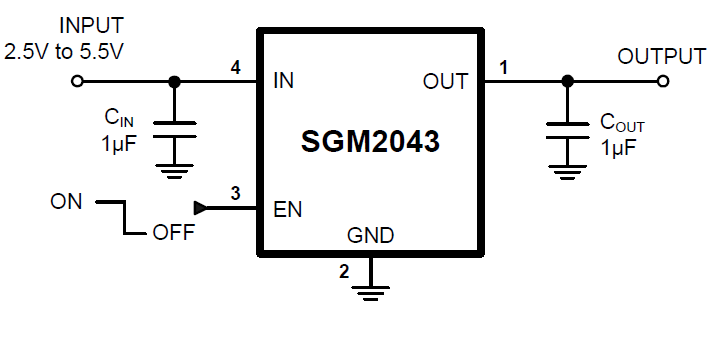

The SGM2043 series low-power, low-dropout, CMOS linear voltage regulators operate from a 2.5V to 5.5V input voltage in an ultra small package. They are the perfect choice for low voltage, low power applications. A
low ground current makes this part attractive for battery operated power systems. The SGM2043 series also offer low dropout voltage to prolong battery life in portable electronics. Systems requiring a quiet voltage source, such as RF applications, will benefit from the SGM2043 series’ low output noise and high PSRR. Other features include a 10nA logic-controlled shutdown mode, output current limit and thermal shutdown protection. SGM2043 has quick auto-discharge function in shutdown status.
The SGM2043 is available in Green UTDFN-1×1-4L package. It operates over an ambient temperature range of -40℃ to +85℃.
