3A, High Accuracy, Low Noise, Low Dropout Linear Regulator.
SGM2050
SGM2050.pdf
SGM2050.pdf
No.13376
FEATURES
? Input Voltage Range:
Without BIAS: 1.4V to 7V
With BIAS: 1.1V to 7V
? Output Voltage Range:
Adjustable Operation: 0.8V to 5.2V
Pin-Selectable Operation: 0.8V to 3.95V
? Output Voltage Accuracy: ±1% at +25℃
? Low Dropout Voltage: 99mV (TYP) at 3A
? Low Noise: 5μVRMS (TYP) with BIAS
? Excellent Load Transient Response
? Adjustable Soft-Start Inrush Control
? Open-Drain Power-Good (PG) Output
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TQFN-3.5×3.5-20L Package
DESCRIPTION
The SGM2050 is a high accuracy, low noise, very low dropout linear regulator. It is capable of supplying 3A output current with typical dropout voltage of only 99mV. The operating input voltage range is from 1.1V to 7V with BIAS and 1.4V to 7V without BIAS. The output voltage can be set from 0.8V to 3.95V in pin-selectable operation and adjusted from 0.8V to 5.2V by using an external resistor divider.
Other features include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2050 has automatic discharge function to quickly discharge VOUT in the disabled status.
The SGM2050 is suitable for application which needs high accuracy, low noise and high current power supply, such as analog-to-digital converters (ADCs), digital-to-analog converters (DACs) and RF components.
With very high accuracy, remote sensing, and soft-start capabilities to reduce inrush current, the SGM2050 ensures the optimal system performance for powering digital loads such as FPGAs, DSPs and ASICs.
The SGM2050 is available in a Green TQFN-3.5×3.5-20L package. It operates over an operating temperature range of -40℃ to +125℃.

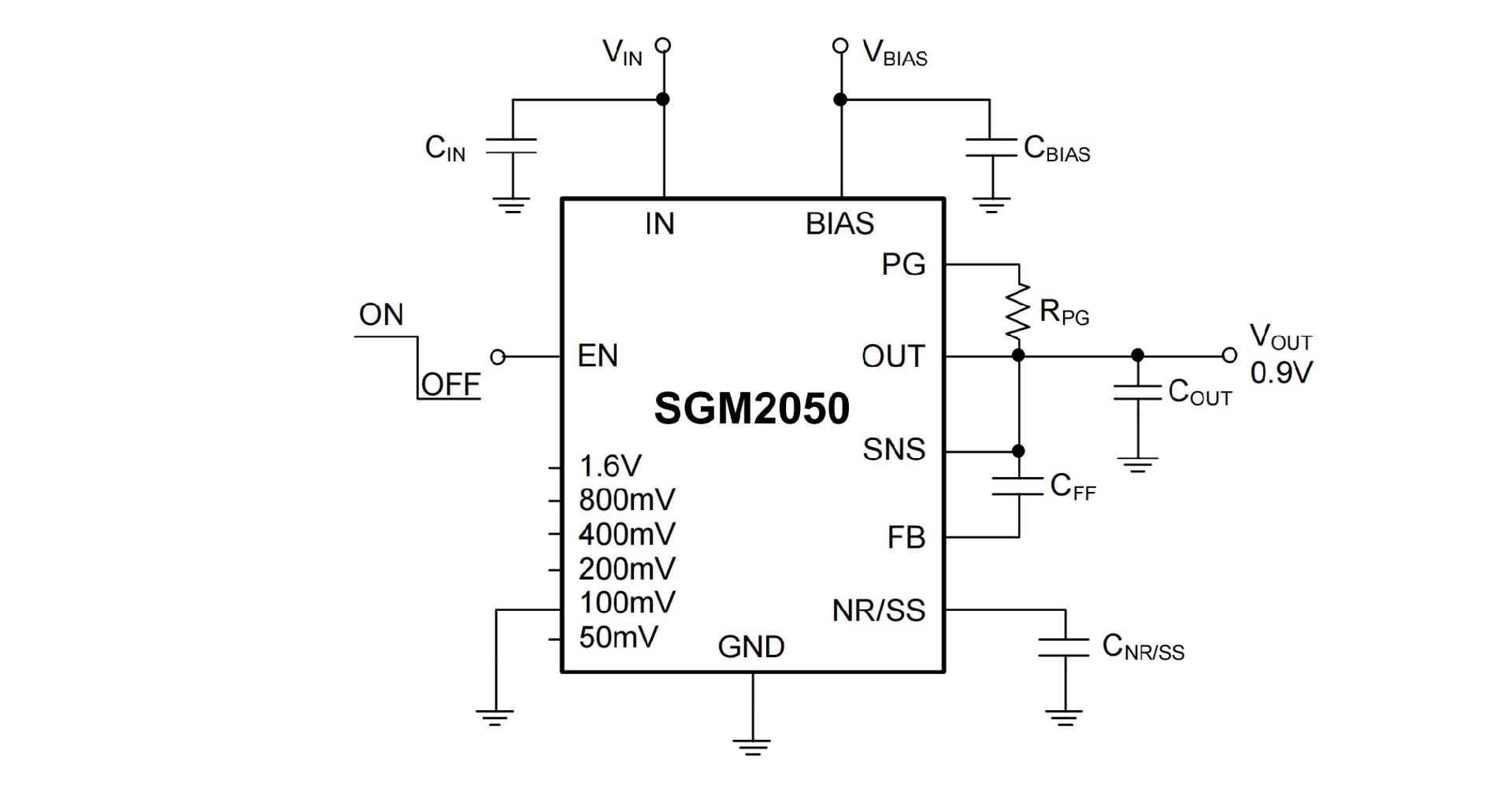

APPLICATION CIRCUIT
PIN CONFIGUTION
