SGM2201.pdf
No.10724
? 2.7V to 36V Input Voltage Range
? 4.2μA Quiescent Supply Current
? Adjustable Output Voltages: 0.8V to 13.2V
? 150mA Nominal Output Current
? Output Voltage Accuracy: ±2.5%
? Thermal Shutdown Protection
? -40℃ to +85℃ Operating Temperature Range

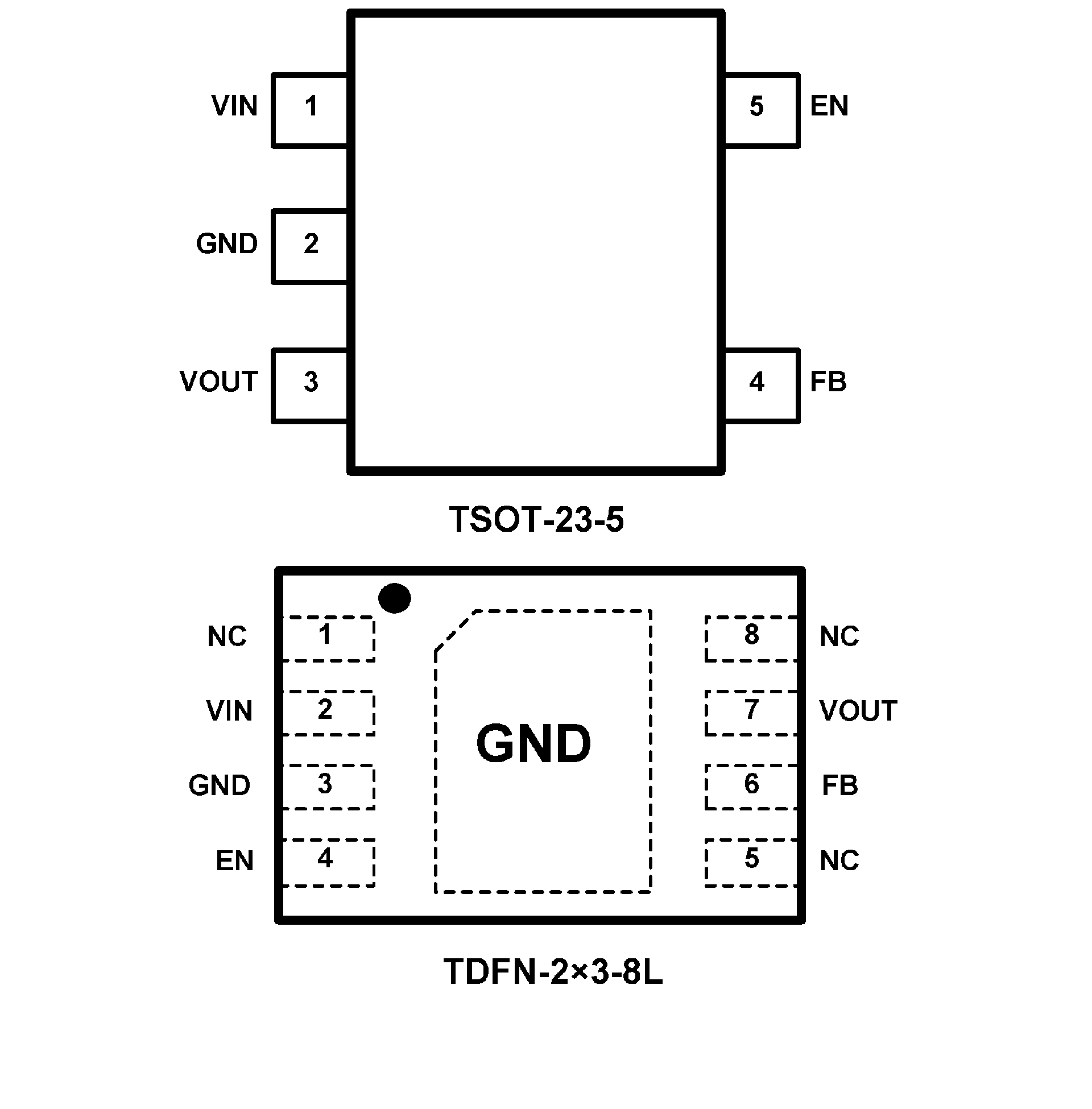

? Available in Green TSOT-23-5 and TDFN-2×3-8L
Packages
The SGM2201 is a low power linear regulator that supplies power to systems with high input voltages. It features a wide 2.7V to 36V input voltage range, low dropout voltage and low quiescent supply current.

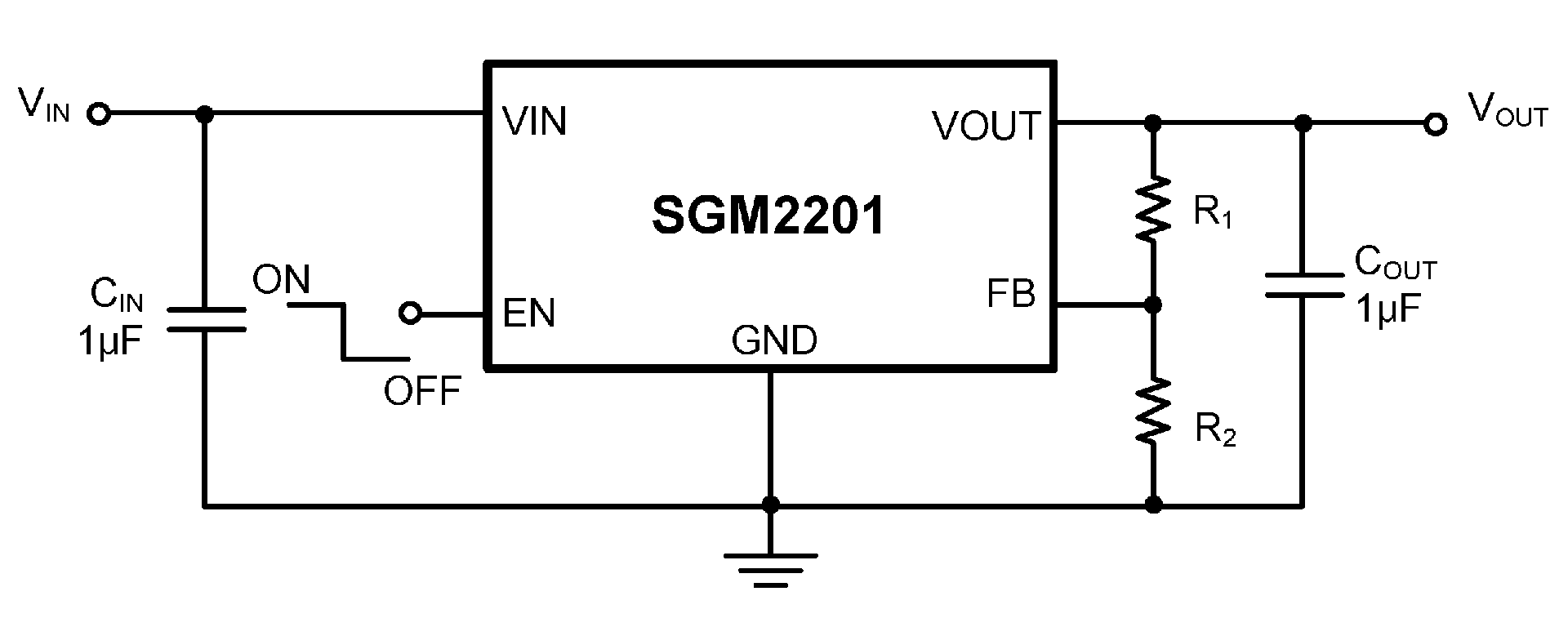

The SGM2201 provides excellent line transient response and 55dB power supply rejection ratio (PSRR). The SGM2201 output voltage can be set externally from 0.8V to 13.2V through a simple resistor divider network.
The SGM2201 also includes thermal shutdown and short circuit protection. It is available in Green TSOT-23-5 and TDFN-2×3-8L packages. It is rated over the -40℃ to +85℃ temperature range.
