● Wide VIN Range: 1.7V to 7.5V
● Output Current: 150mA
● Ripple Rejection: 60dB at 1kHz
● Low Output Noise: 70μVRMS from 10Hz to 100kHz
● Low Quiescent Current: 35μA
● Fixed Outputs of 1.2V to 3.6V
● -40℃ to +85℃ Operating Temperature Range
● Available in Green UTDFN-1.2×1.2-6AL Package

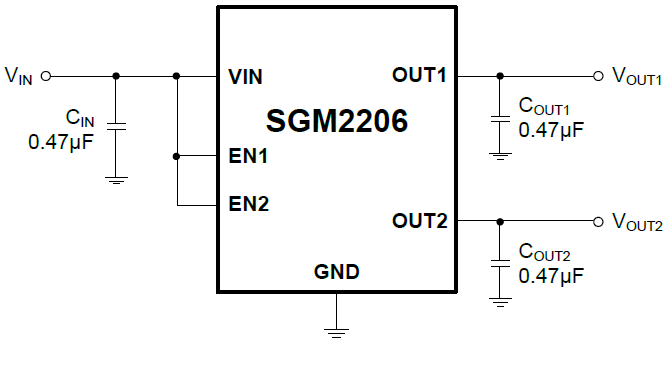

The SGM2206 is a dual low dropout CMOS regulator with low RDS(ON), high PSRR, low output noise and low quiescent current. Each of the two regulators includes an error amplifier, current limit circuit and an enable input to turn on/off output. With the integrated resistor network, fixed output voltage versions can be delivered. With its low power consumption and fast line and load transient response, the SGM2206 is well suited for low power handheld communication equipment.
The SGM2206 is packaged in Green UTDFN-1.2×1.2-6AL package, and allows for small footprint and dense PCB layout.
