800mA, High Voltage, Low Noise and Low Dropout Voltage Regulator.
SGM2207 SGM2207.pdf

No.13374

FEATURES

? Wide Input Voltage Range: 2.5V to 20V

? Output Voltage Range: 1.8V to 12V

? Guaranteed 800mA Output Current over the Full

   Operating Temperature Range

? Low Dropout Voltage: 400mV (TYP) at Full Load

? Extremely Tight Load and Line Regulations

? Fast Load Transient

? Low Output Voltage Temperature Coefficient

? Output Short Circuit Protection

? Current and Thermal Limiting

? No-Load Stability

? -40℃ to +125℃ Operating Temperature Range

? Thermally-Efficient Surface-Mount Package

? Available in a Green TDFN-2×3-8BL Package

DESCRIPTION

The SGM2207 is a high voltage linear voltage regulator with very low dropout voltage, typically 400mV at full load.
Designed especially for hand-held, battery-powered devices, the SGM2207 features low ground current to help prolong battery life. An enable/shutdown pin can further improve battery life with near-zero shutdown current.
Key features include high PSRR, low ground current, fast load transient, output short circuit protection, reversed-battery protection, current limiting, over-temperature shutdown and availability in thermally-efficient packaging. The SGM2207 is available in adjustable output version.
The SGM2207 is available in a Green TDFN-2×3-8BL package. It operates over an operating temperature range of -40to +125.

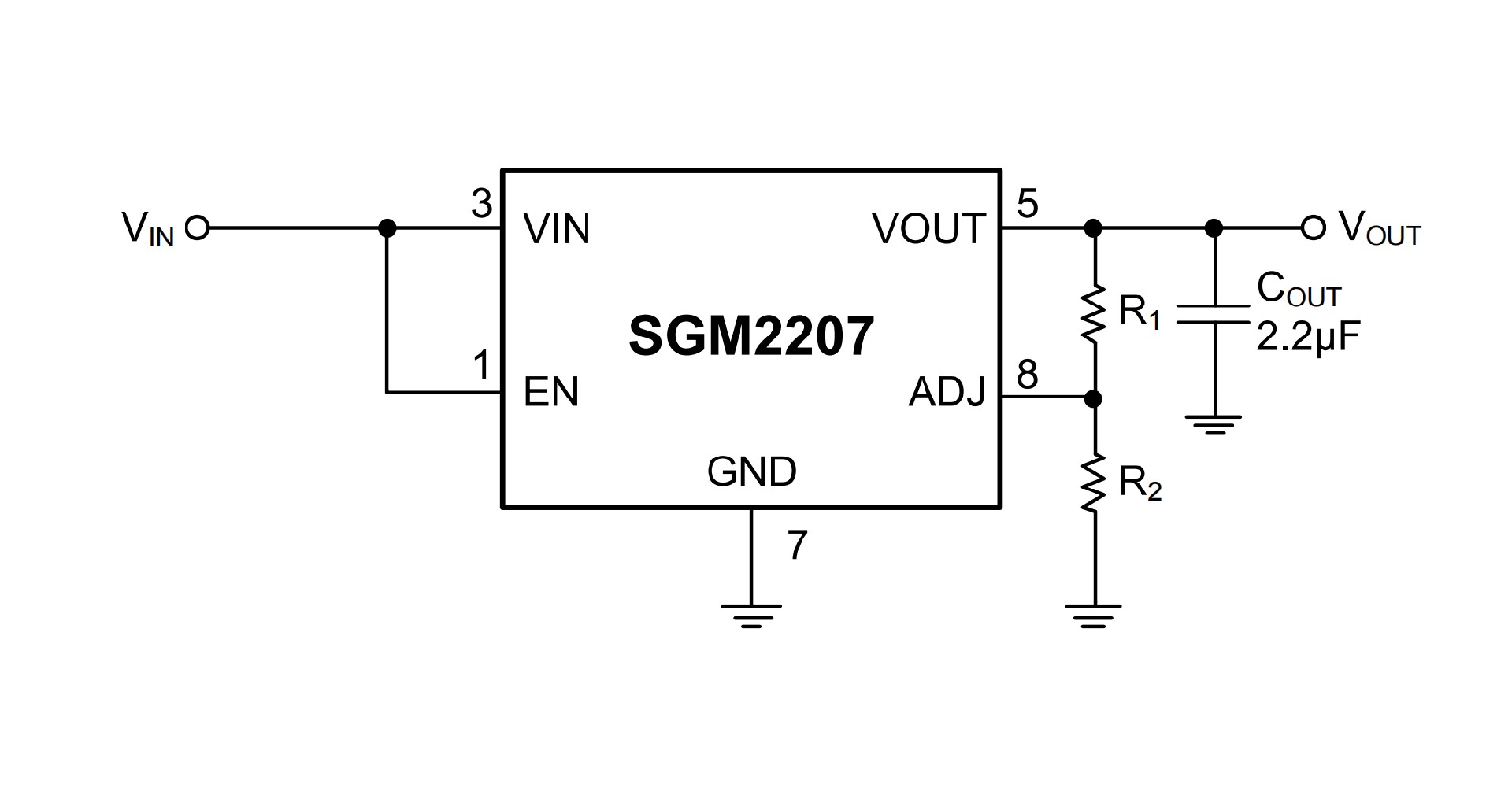

APPLICATION CIRCUIT

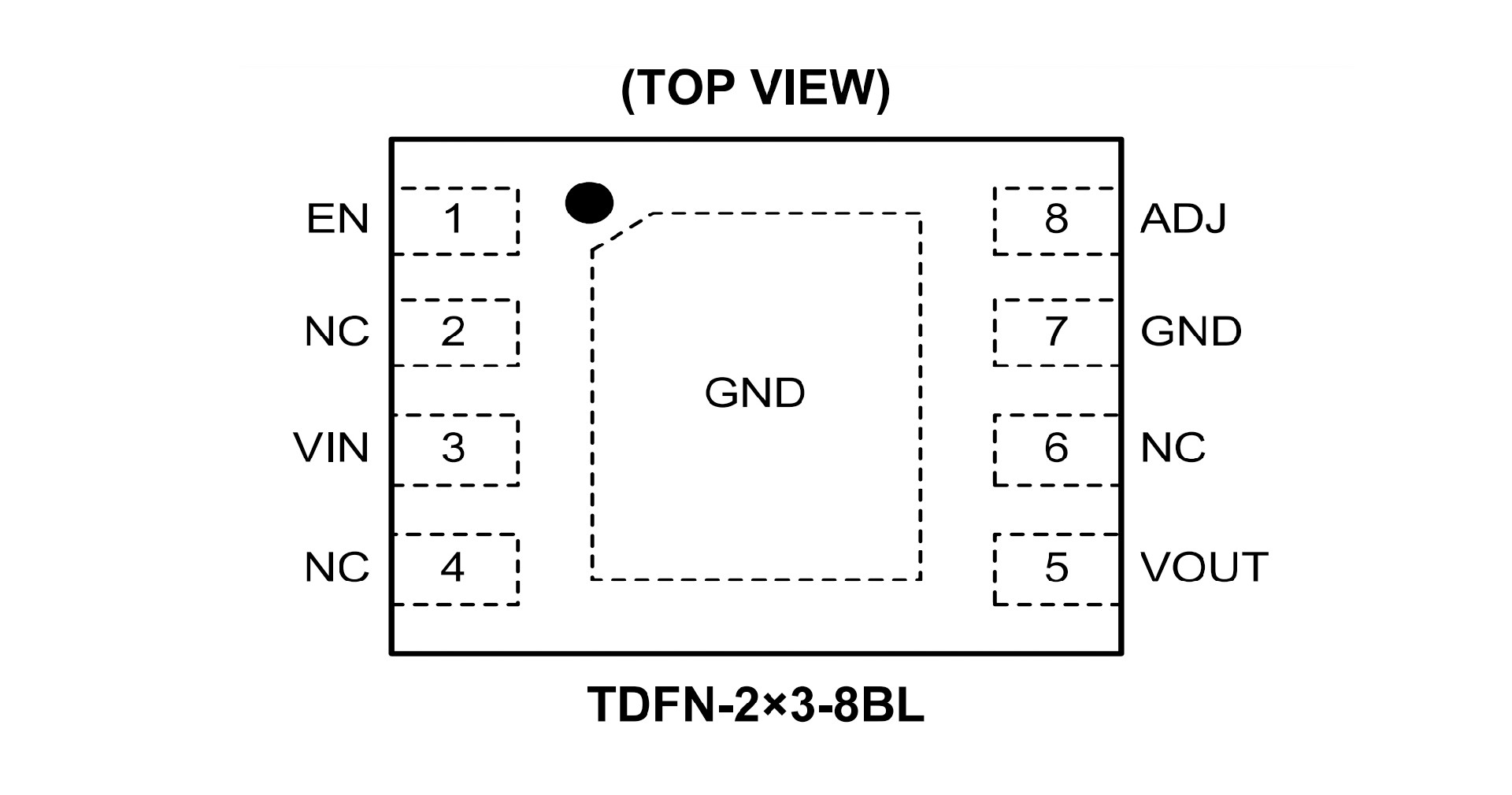

PIN CONFIGUTION
