2A USB Power Switch SOT23-5
SGM2581C SGM2581C.pdf

No.10795

FEATURES

? 100mΩ (TYP) High-side N-Channel MOSFET

? Three Current Limit Levels SGM2581C/D/I: 2100 ± 220mA

? Input Voltage Range: 2.5V to 5.5V

? Low 23μA Quiescent Current

? Typical 0.1μA Shutdown Current

? Soft-Start Function

? Thermal Shutdown Protection

? Under-Voltage Lockout Protection for VIN

? No Reversed Leakage Current (Reverse Blocking)

? Fault Flag (FAULT ) with 13ms Filter Eliminates

   False Assertions

? Automatic Output Discharge in Shutdown Mode

? Available in the Green SOT-23-5 Package

DESCRIPTION

The SGM2581 is an integrated 100mΩ (TYP) power switch for self-powered and bus-powered Universal Series Bus (USB) applications. The SGM2581 is internally current limited and has thermal shutdown that protects device and load from over-current damage. Thermal shutdown shuts off the output MOSFET and asserts the FAULT output if the die temperature exceeds 150℃ until the die temperature drops to 130℃.

This device employs soft-start circuit that minimizesinrush current in applications where highly capacitive loads are employed. An open drain FAULT flag asserts low during overcurrent and thermal conditions after a 13ms blanking time to prevent false reporting. SGM2581 is available in the Green SOT-23-5 package. It is rated over the -40℃ to +85℃ temperature range.

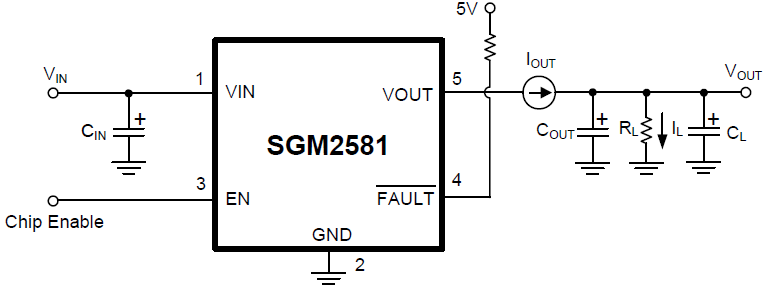

APPLICATION CIRCUIT

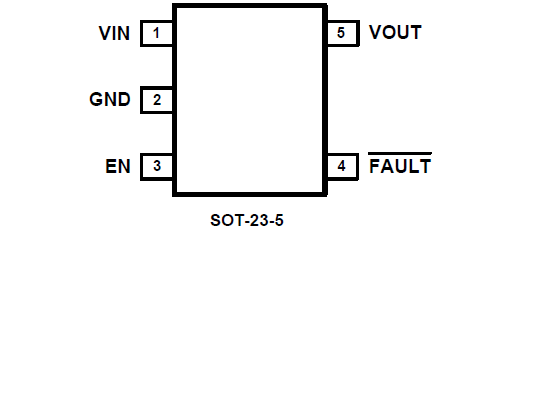

PIN CONFIGUTION
