SGM2588.pdf
No.10764
● 100mΩ (TYP) High-side N-Channel MOSFET
● Three Current Limit Levels
SGM2588A/B/G: 1100 ± 100mA
SGM2588C/D/I: 2100 ± 210mA
SGM2588E/F/K: 2600 ± 300mA
● Input Voltage Range: 2.5V to 5.5V
● Low 23μA Quiescent Current
● Typical 0.1μA Shutdown Current
● Soft-Start Function
● Thermal Shutdown Protection
● Under-Voltage Lockout Protection for VIN
● No Reversed Leakage Current (Reverse Blocking)
● Fault Flag (FAULT ) with 13ms Filter Eliminates False Assertions
● Automatic Output Discharge in Shutdown Mode
(SGM2588A/B/C/D/E/F)
● 500kΩ Pull-Down Resistor at EN Pin (SGM2588G/I/K)

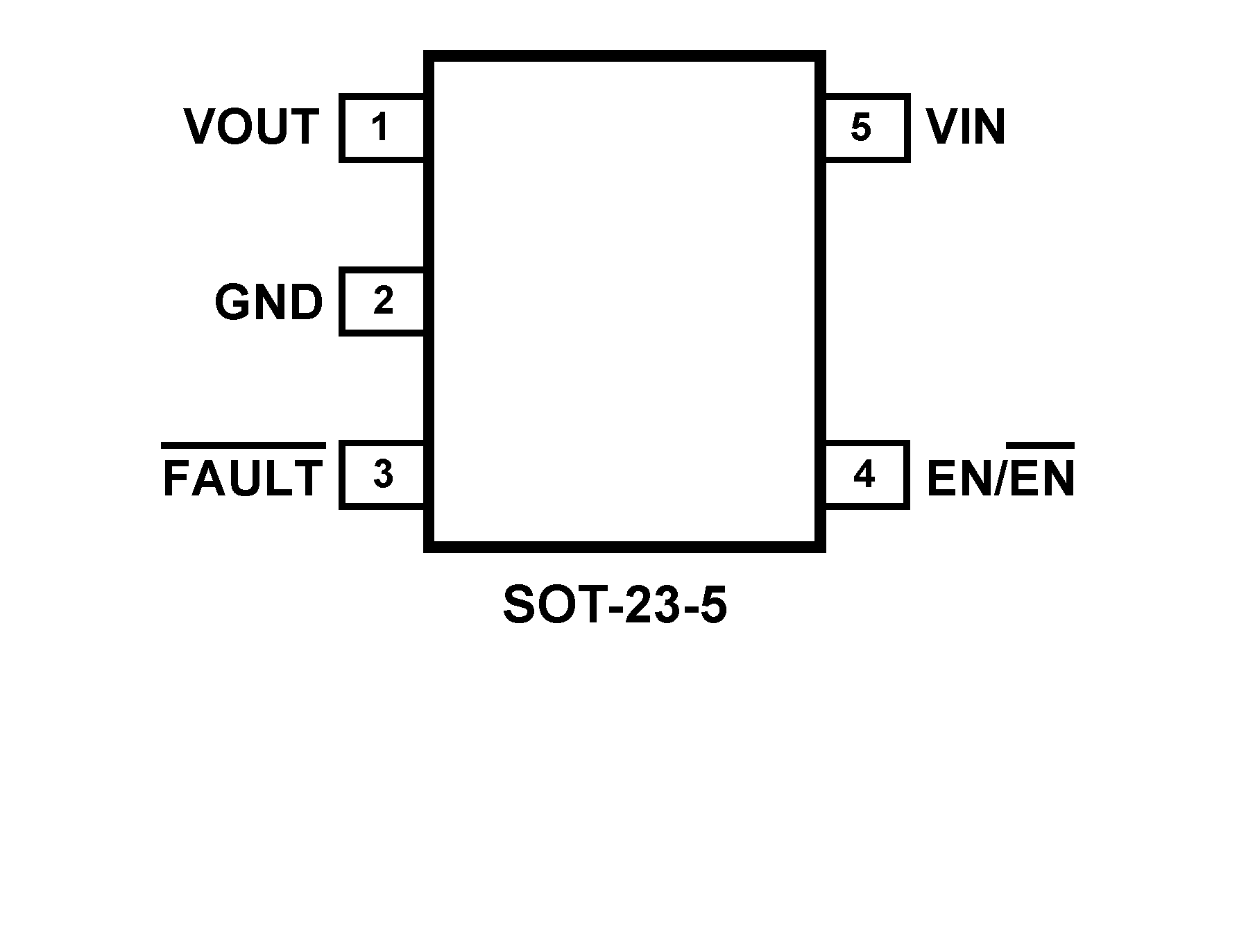

● Available in the Green SOT-23-5 Packag

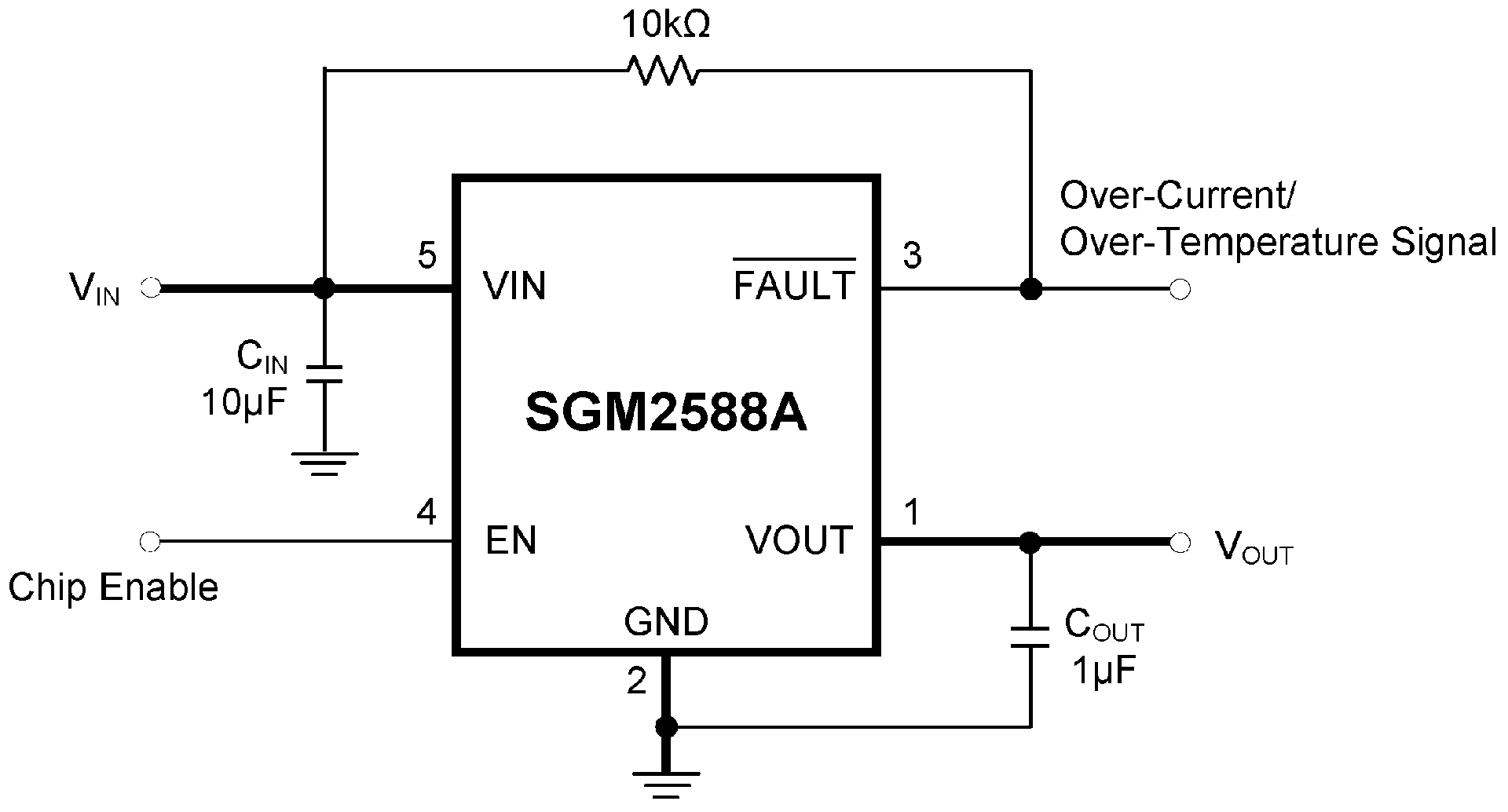

The SGM2588 is an integrated 100mΩ (TYP) power switch for self-powered and bus-powered Universal Series Bus (USB) applications. The SGM2588 is internally current limited and has thermal shutdown that protects device and load from over-current damage. Thermal shutdown shuts off the output MOSFET and asserts the FAULT output if the die temperature exceeds 150℃ until the die temperature drops to 130℃.
This device employs soft-start circuit that minimizes inrush current in applications where highly capacitive loads are employed. An open drain FAULT flag asserts low during overcurrent and thermal conditions after a 13ms blanking time to prevent false reporting. SGM2588 is available in the Green SOT-23-5 package. It is rated over the -40℃ to +85℃ temperature range.
