SGM3204.pdf
No.10664
? Inverts Input Supply Voltage
? Up to 200mA Output Current
? Input Voltage Range from 1.4V to 5.5V
? Quiescent Current: 1.5mA (TYP)
? 950kHz Switching Frequency
? Integrated Active Schottky Diode for Start-Up into Load
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-6 Package

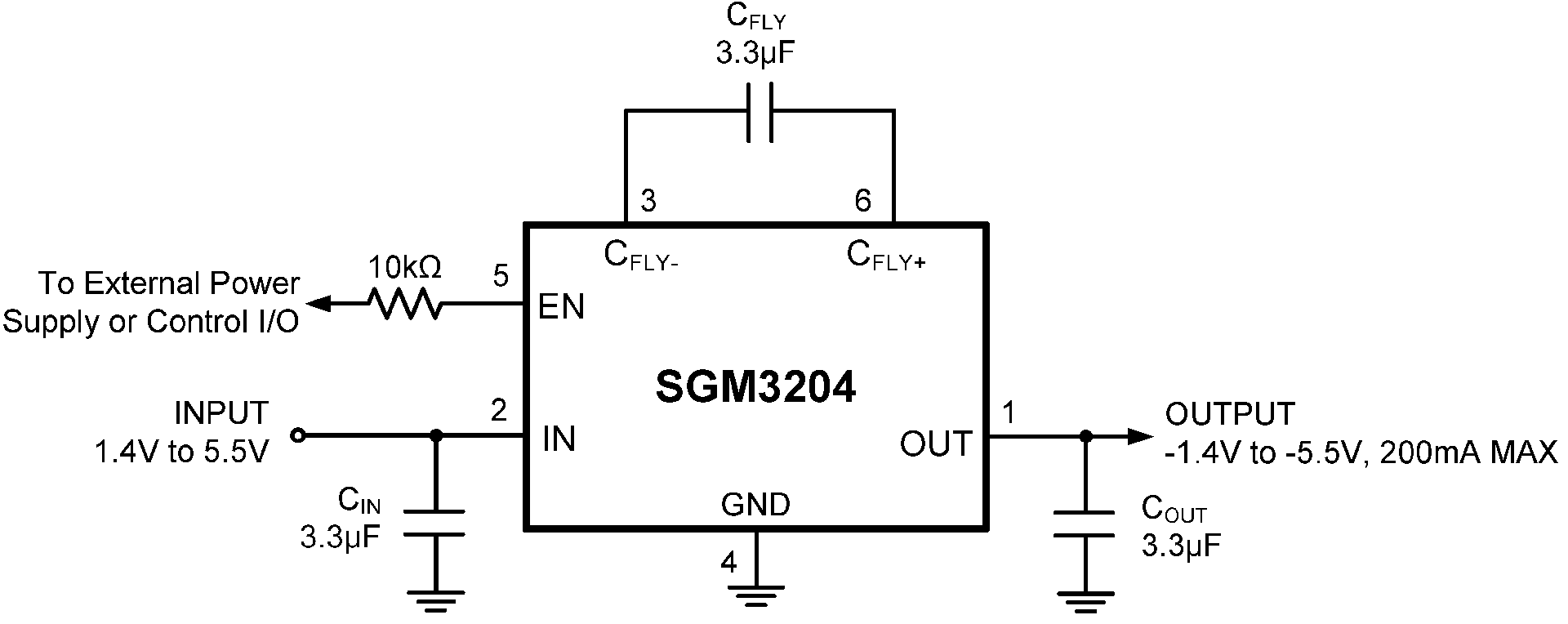

The SGM3204 generates an unregulated negative output voltage from an input voltage ranging from 1.4V to 5.5V. The device is typically supplied by a pre-regulated supply rail of 5V or 3.3V. Due to its wide input voltage range, two or three NiCd, NiMH, or alkaline battery cells, as well as one Li-ion cell can also power them. Only three external capacitors are required to build a complete DC/DC charge pump inverter. Assembled in a small package, the complete converter can be built on a 50mm2 board area. Additional board area and component count reduction is achieved by replacing the Schottky diode that is typically needed for start-up into load by integrated circuitry.
The SGM3204 is available in SOT-23-6 package. It operates over an ambient temperature range of -40℃ to +85℃.
