SGM3700.pdf
No.11162
● Supply Range: +2.5V to +5.5V
● Negative Signal Swing Capability: -2.5V to V+
● On-Resistance: 4Ω (TYP) at +5.0V
● Low On-Resistance Flatness
● -3dB Bandwidth: 380MHz
● High Off-Isolation: -67dB at 1MHz
● Low Crosstalk: -77dB at 1MHz
● Typical Power Supply Current: 0.5μA
● 1.8V Logic Control
● Available in Green TQFN-3×3-16L Package
● Extended Industrial Temperature Range: -40℃ to +85℃

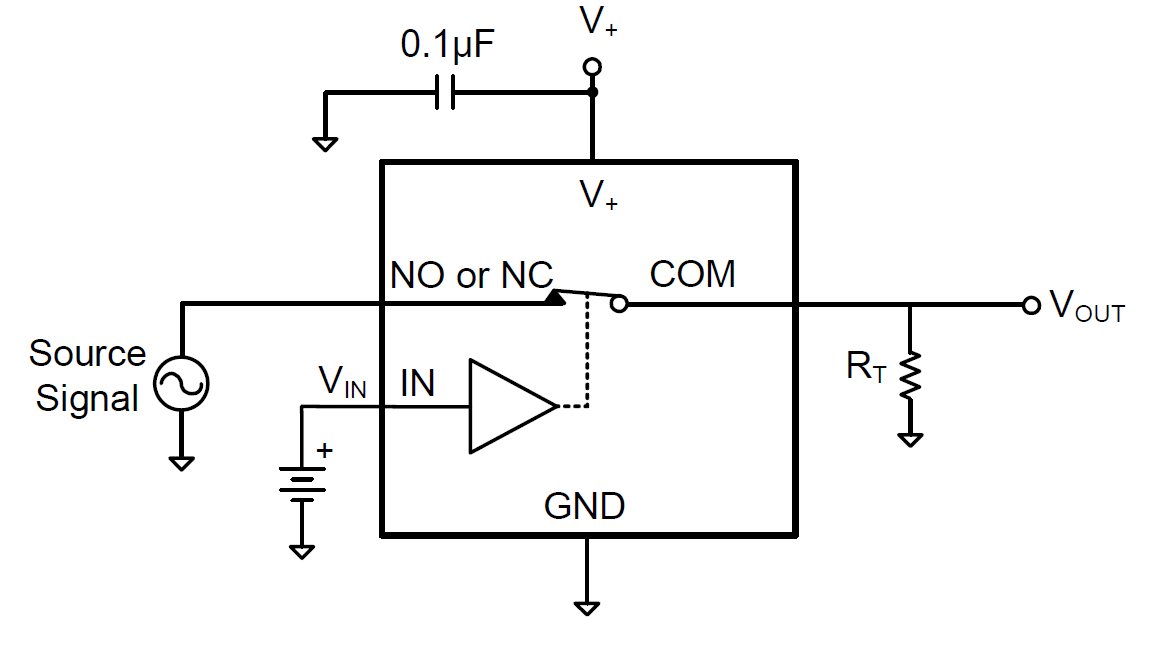

The SGM3700 is a high speed, low voltage, advanced dual independent double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single +2.5V to +5.5V power supply. It features high bandwidth (380MHz) and low on-resistance (4Ω TYP), and the switches can handle negative signal down to -2.5V.
The SGM3700 is configured as a dual double-pole/ double-throw (DPDT) device with two logic control inputs, each controlling two multiplexers/demultiplexers. The configuration can also be used as a dual differential 2-to-1 multiplexer/demultiplexer.
SGM3700 is available in Green TQFN-3×3-16L package.
