No.11017
● 2.5V to 4.8V Input Supply Voltage Range
● Synchronous Boost Converter (ELVDD)
● Synchronous Inverting Buck-Boost Converter (ELVSS)
● Synchronous Boost Converter (AVDD)
● VIN and VOUT Bi-Directional Isolation
● Short Circuit Protection (SCP)
● Overload Protection
● Thermal Shutdown
● VELVSS Start-Up Delay: 5ms
● Short Circuit and OLP Detect Time: 0.6ms

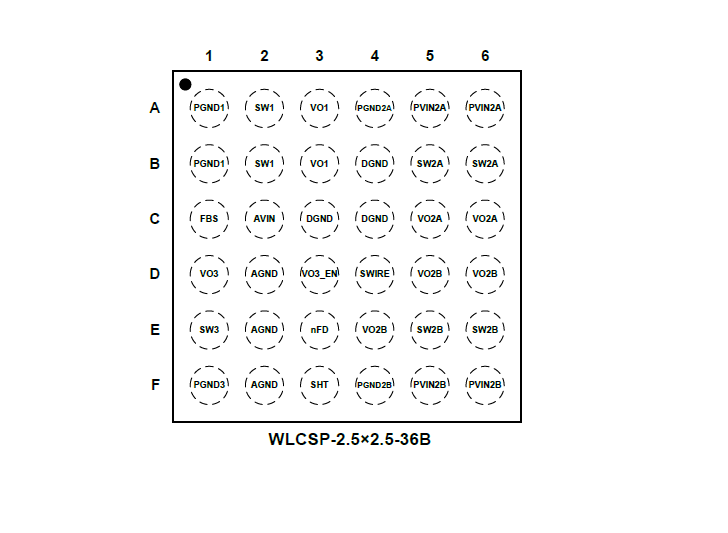

● Available in a Green WLCSP-2.5×2.5-36B Package

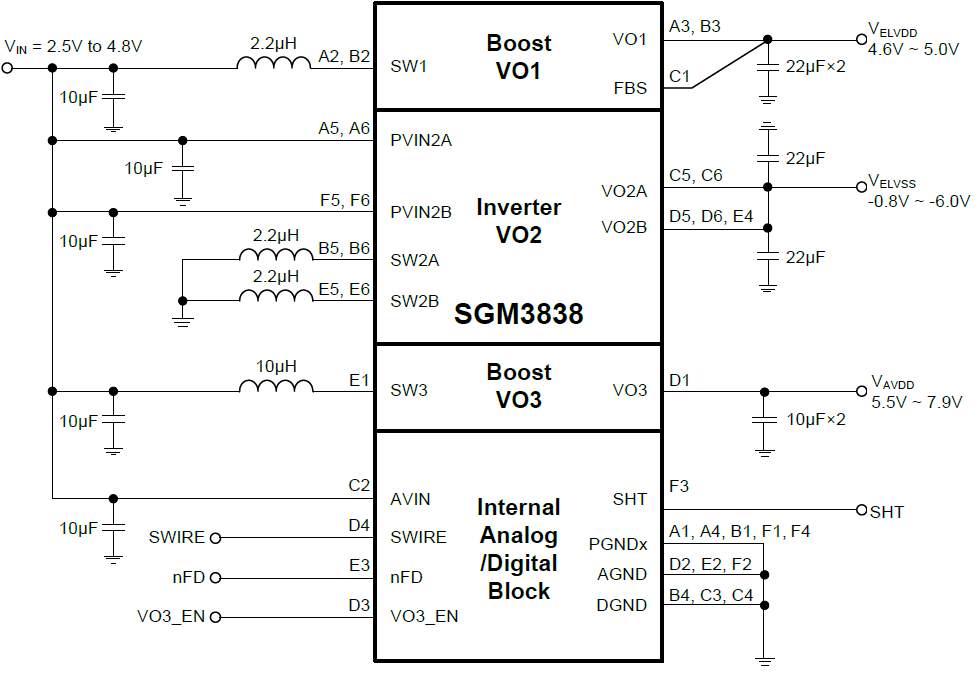

The SGM3838 is designed for powering AMOLED displays which requires VELVDD, VELVSS and VAVDD. The device integrates two boost converters, VO1 for VELVDD and VO3 for VAVDD, and a dual-phase inverting buck-boost converter VO2 for VELVSS. Output voltages of all the three converters can be programmed in digital steps through the digital interface control pin (SWIRE).
The SGM3838 is available in a Green WLCSP-2.5×2.5- 36B package.
