SGM40654.pdf
No.10957
● Protect High-Power Portable Devices
Wide Operating Input Voltage Protection from 2.5V to 28V
Integrated 62mΩ (TYP) N-Channel MOSFET Switch (CSP Package)
Integrated 73mΩ (TYP) N-Channel MOSFET Switch
(TDFN Package)
● Flexible Over-Voltage Protection Design
Adjustable Over-Voltage Protection Trip Level
Wide Adjustable OVLO Threshold Range from 4V to 20V
Internal Preset OVLO Thresholds: 6.8V (SGM40654)
● Additional Protection Features Increase System Reliability
Surge Immunity up to +120V
Soft-Start to Minimize In-Rush Current
Internal 18.5ms Startup Debounce
Thermal Shutdown Protection
● Enable Function
● -40℃ to +85℃ Operating Temperature Range

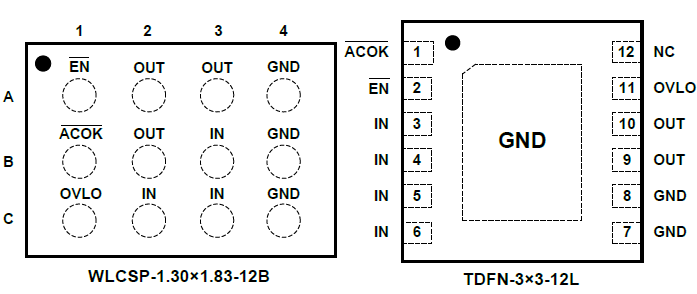

● Available in Green WLCSP-1.30×1.83-12B and TDFN-3×3-12L
Packages

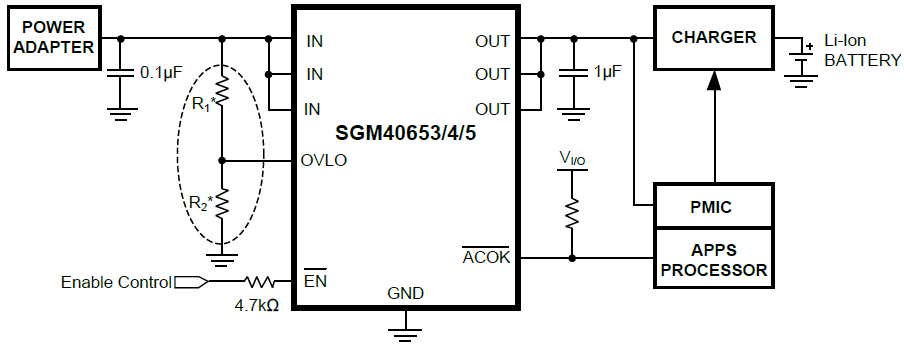

The SGM40653/4/5 over-voltage protection devices feature a low 62mΩ (TYP, CSP package)/73mΩ (TYP, TDFN package) RON internal FET and protect low-voltage systems against voltage faults up to +28VDC. An internal clamp also protects the devices from surges up to +120V. When the input voltage exceeds the over-voltage threshold, the internal FET is turned off to prevent damage to the protected downstream components.
The over-voltage protection threshold can be adjusted with optional external resistors to any voltage between 4V and 20V. If the OVLO input is below the external OVLO select voltage, the SGM40653/4/5 automatically choose the internal trip thresholds. The internal over-voltage thresholds (VIN_OVLO) are preset to be 15.39V/6.8V/5.81V typical (SGM40653/4/5). The devices feature an open-drain ACOK output indicating a stable supply between minimum supply voltage and VOVLO. The SGM40653/4/5 are also protected against over-current events by an internal thermal shutdown. The SGM40653/4/5 also have enable control to reduce power consumption.
