SGM41101.pdf
No.11024
● Ultra Compact Protection Solution
● 27mΩ Pass Resistance
● 1μA Operation Current
● Factory Programmable OVP Threshold Options
4.20V to 4.55V with 0.05V per Step
● Over-Charge/Discharge Current Protection
3 Thresholds Combination Options
● Battery Under-Voltage Protection
2.4V/2.5V/2.8V/3.0V Options
● 100nA Deep Discharging Shutdown
● Exhausted Battery Charging from 0.2V
● Input Surge Clamping
● Input Over-Voltage Safe
● Load Short-Circuit Safe
● Reverse Polarity Battery Safe
● Input Reversed-Attaching Safe
● Battery Pack Paralleling Safe
● Locked-Off for Delivery/Assembly

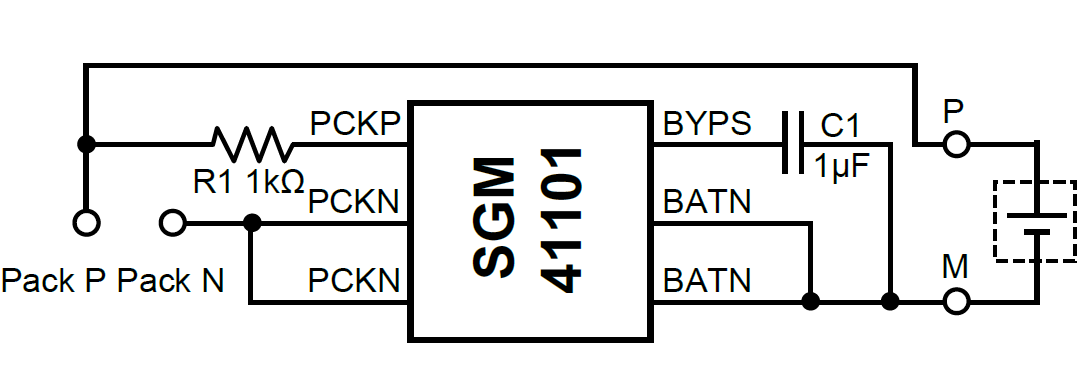

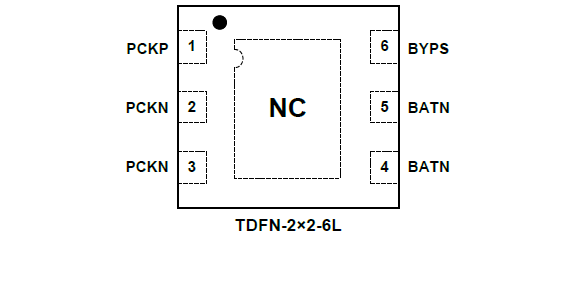

● Available in Green TDFN-2×2-6L Package
The SGM41101 is designed for primary protection of Li-Ion/Li-polymer rechargeable cells. The product integrates all the protections required for safe operation of polymer rechargeable cells. The device is packaged in a thin package. Its small solution size leaves more space for fitting the battery cell into a given cavity for small size wearable devices.
The SGM41101 integrates all the protections and the required low on-resistance disconnect switch on one die. The protection features include charging and discharging protection, detection and protection of a cell in over-charging, over-discharging, over-current, and battery under-voltage. The product also disconnects the battery pack in the case of deep discharge.
The SGM41101 operates in -40℃ to +85℃ temperature range, and is in a thin TDFN-2×2-6L package. This package with a nominal height of 0.75mm is convenient for small cell packing designs.
