SGM42501.pdf
No.11729
? H-Bridge Motor Driver
? Operating Voltage Range: 6.5V to 40V
? Low On-Resistance: 0.43Ω (HS + LS) at +25℃
? Peak Current: 3.6A
? Interface
SGM42500: IN1/IN2
SGM42501: PH/EN
? Adjustable PWM Current Limit in Real-Time
? Low Power Standby Mode
? Integrated Protection Features
Over-Current Protection (OCP)
Under-Voltage Lockout (UVLO)
Thermal Shutdown (TSD)
Auto-Retry

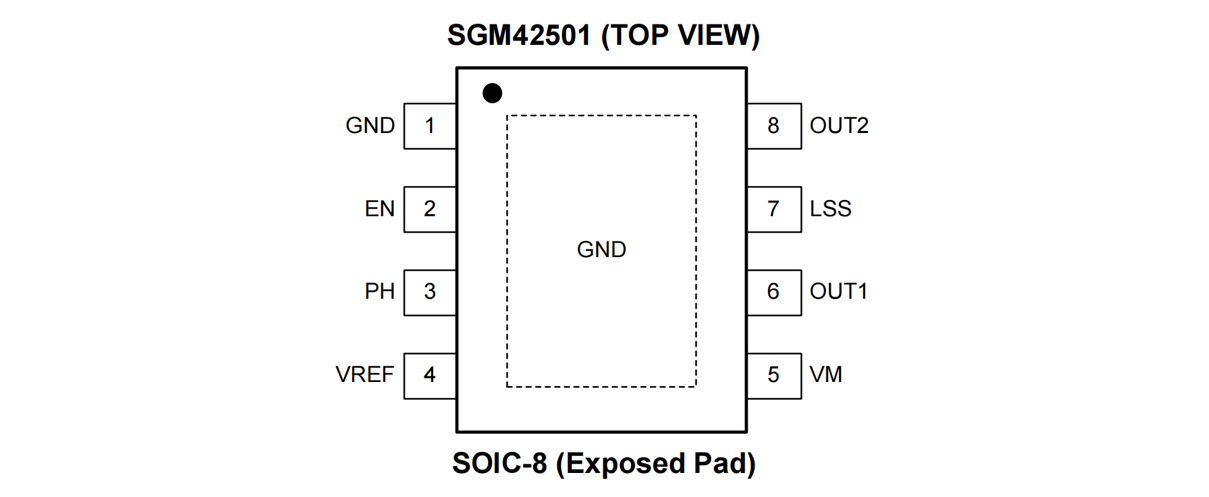

? Available in a Green SOIC-8 (Exposed Pad) Package
The SGM42500 and SGM42501 devices are brushed DC motor drivers. Two logic inputs control the H-bridge driver, which consists of four N-MOSFETs that can control motors bi-directionally with up to 3.6A peak current at 40V voltage.

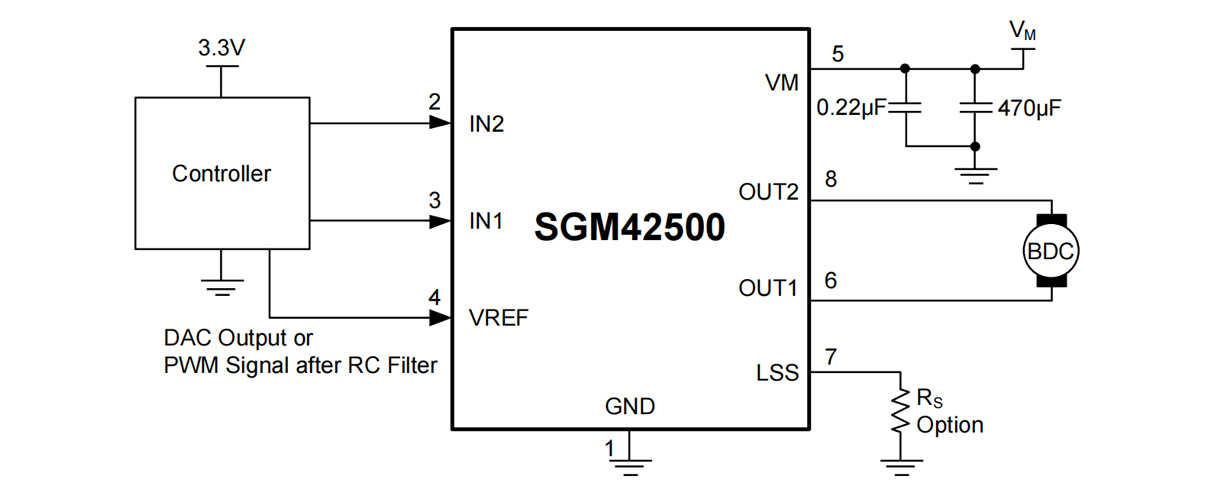

The SGM42500 supports IN1/IN2 PWM interface and the SGM42501 supports PH/EN interface. Internal synchronous rectification control circuitry is provided to lower power dissipation during PWM operation.Customer can adjust PWM current limit or torque in real-time by VREF pin with a controller’s DAC output or PWM signal after RC filter.
A number of protection features are provided in the device including over-current, short-circuit, under-voltage lockout, and thermal shutdown. When the fault condition is removed, the device automatically resumes normal operation.
The SGM42500 and SGM42501 are available in a Green SOIC-8 (Exposed Pad) package. They operate over an ambient temperature range of -40℃ to +125℃.
